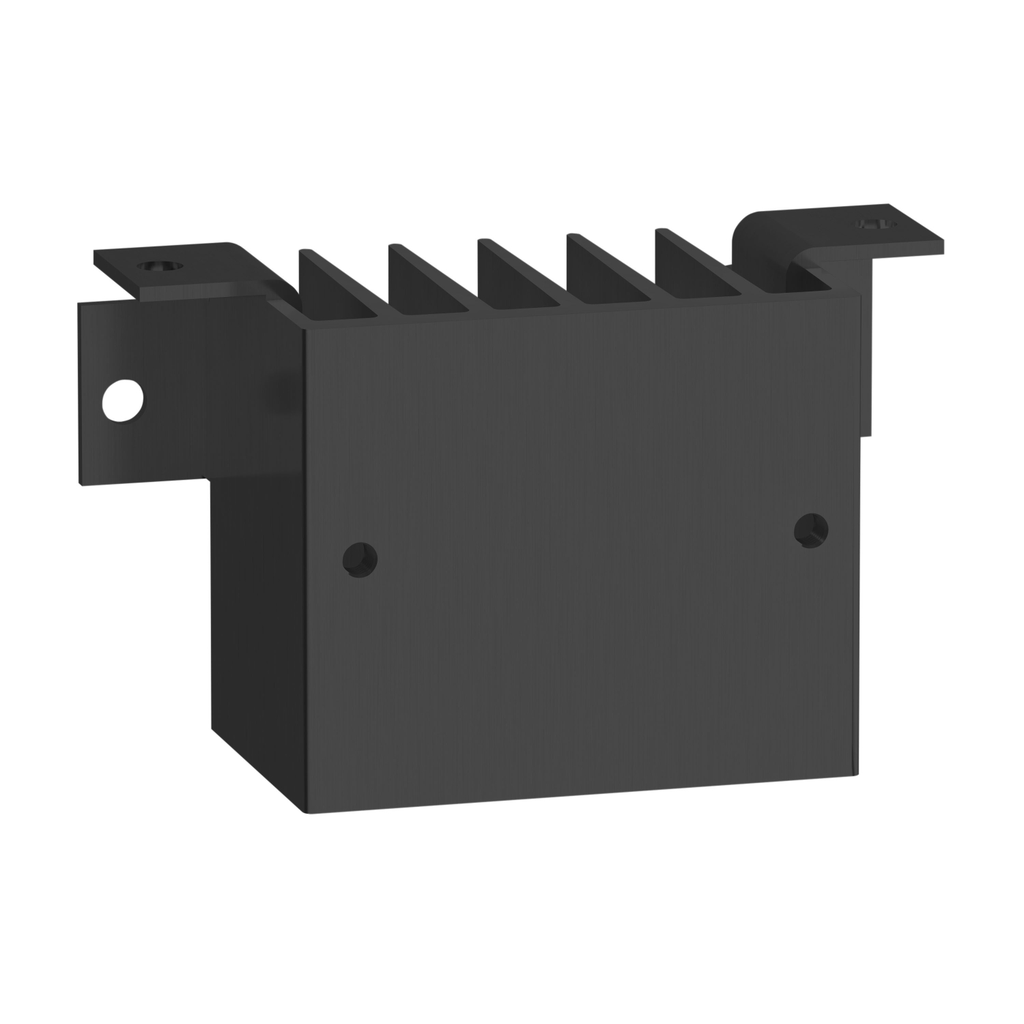

heat sink, Harmony Solid State Relays, thermal resistance 2.5 degree C W

SSR Heat Sink Panel Mount 2.5

SQDSSRHP25 SSRHP25 3606480580208
30.63 / EA
http://schema.org/OutOfStock
Mayer-DDS-heat sink, Harmony Solid State Relays, thermal resistance 2.5 degree C W-1
  • Country of Origin: USA
  • Depth: 52.3 mm
  • Height: 40.6 mm
  • Net Weight: 0.100 kg
  • Surface Finish: Black Anodized
  • Weight: 0.100 kg
  • Width: 58.9 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 40.6 mm
    • Product Compatibility : 1 solid state relay SSR panel
    • Number Of Mounting Holes : 2 UNC 8-32
    • Mounting Support : panel
    • Surface Finish : black anodized
    • Surface And Useful Surface : 336 cm²
    • Thermal Resitance : 2.5 °C/W
    • Material : aluminium
    • Net Weight : 0.100 kg
    • Sale Per Indivisible Quantity : 1
    • Width : 58.9 mm
    • Depth : 52.3 mm
    • Tightening Torque : 1.7-2.2 N.m
  • Specifications
    • Country of Origin : United States
    • Width : 58.9 mm
    • Height : 40.6 mm
    • Weight : 0.100 kg
    • Range Of Product : Harmony Solid State Relays
    • Product Or Component Type : heat sink
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1308009
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Minimum Percentage Of Recycled Plastic Content : 0
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
