SQUARE D

Head for triple headed push button, Harmony XB5, 1 white flush, 1 red projecting, 1 black flush, 22mm, marked

HEAD FOR TRIPLE HEADED PUSH BU

SQDZB5AA71123 3389119603485
49.88 / EA
http://schema.org/OutOfStock
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.023 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth

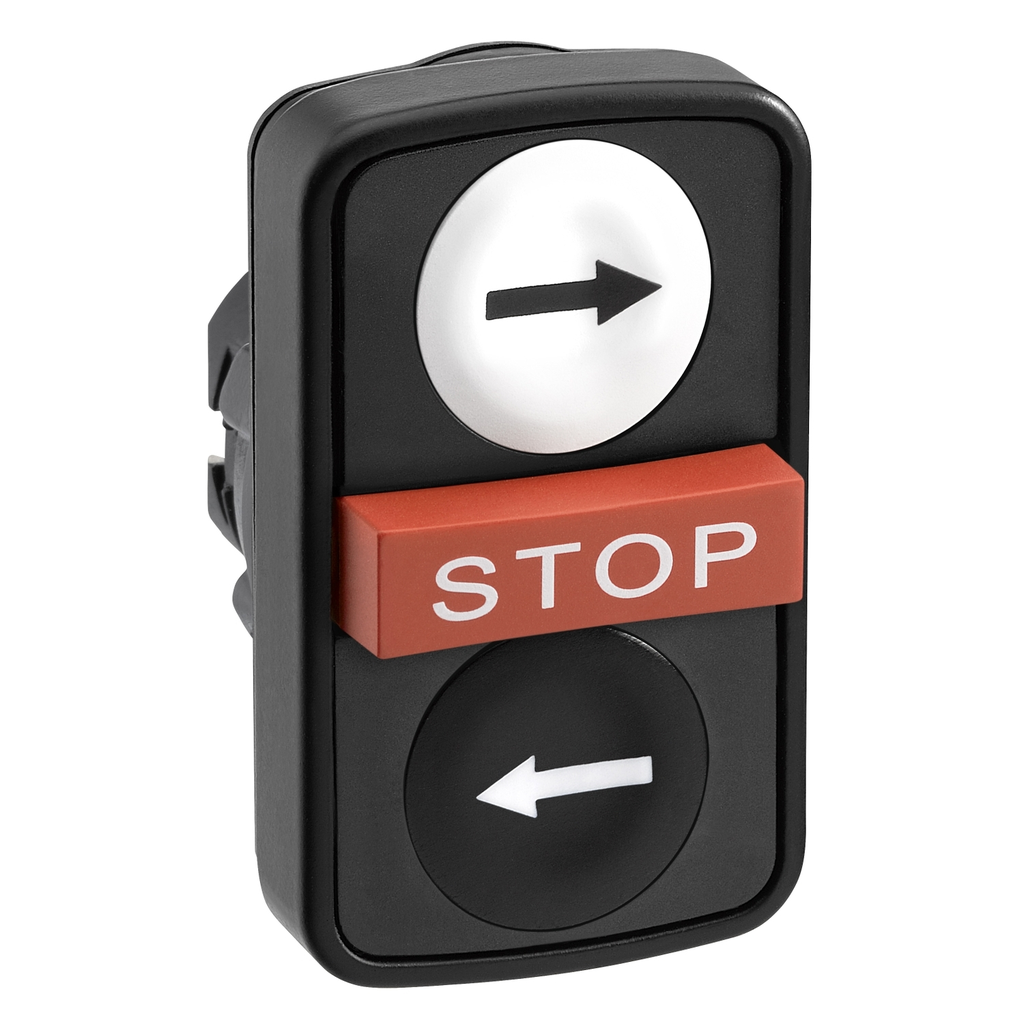

This Harmony XB5, triple head has 1 white, 1 red and 1 black button, operates with a spring return / impulse mechanism. It is marked with "left arrow" / "right arrow" symbols. This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into a standard 22mm diameter cut-outs and assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
QTY
  • Product Description
  • Specifications
This Harmony XB5, triple head has 1 white, 1 red and 1 black button, operates with a spring return / impulse mechanism. It is marked with "left arrow" / "right arrow" symbols. This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into a standard 22mm diameter cut-outs and assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
  • Environment
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ik Degree Of Protection : IK05 IEC 50102
    • Product Certifications : BV || GL || LROS (Lloyds register of shipping) || DNV || UL Listed || CSA
    • Ip Degree Of Protection : IP67 IEC 60529 || IP69 IEC 60529 || IP69K
    • Ambient Air Temperature For Operation : -25-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Standards : UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Electrical Shock Protection Class : class II IEC 61140
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Sustainable Offer Status : Green Premium product
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Circularity Profile : ENVEOLI1710010EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Environmental Disclosure : ENVPEP1710010EN
    • Rohs Exemption Information : Yes
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Complementary
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Device Presentation : basic element
    • Cad Overall Height : 50 mm
    • Cad Overall Width : 30 mm
    • Cad Overall Depth : 35 mm
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Station Name : XALD 1 cut-out
    • Net Weight : 0.023 kg
    • Operator Profile : red projecting, STOP white) || white flush, right arrow black) || black flush, left arrow white)
    • Colour Of Marking : white marking when green, red or black caps || black marking when white caps
    • Mechanical Durability : 1000000 cycles
  • Specifications
    • Head Type : standard
    • Mounting Diameter : 22 mm
    • Type Of Operator : spring return
    • Operators Description : white ''right arrow'' - black ''left arrow'' - red ''STOP''
    • Operator Profile : 2 flush - 1 central projecting STOP push-buttons
    • Range Of Product : Harmony XB5
    • Bezel Material : dark grey plastic
    • Shape Of Signaling Unit Head : rectangular
    • Device Short Name : XB5
    • Product Or Component Type : head for triple-headed push-button
