Head for selector switch, Harmony XB5, flush mounted white 2 pos stay put

HEAD FOR SELECTOR SWITCH, HARM

SQDZB5FD201 ZB5FD201 3606481339188
23.30 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for selector switch, Harmony XB5, flush mounted white 2 pos stay put-2
  • Bezel Material: Plastic
  • Country of Origin: France
  • Head Type: Built-in-flush
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visuall
QTY
  • Product Description
  • Features
  • Specifications
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visuall
  • Overvoltage Category
    • class II conforming to IEC 60536
  • Electrical Composition Code
    • C3 6 single front mounting
    • C4 6 single and double front mounting
    • C4 6 single and double front mou
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0102160396
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1 kg CO2 eq.
    • 0.0526998139
  • Standards
    • IEC 60947-5-4
    • IEC 60947-1
    • JIS C8201-5-1
    • UL 508
    • CSA C22.2 No 14
    • IEC 60947-5-1
    • JIS C8201-1
  • Ip Degree Of Protection
    • IP66 IEC 60529
    • IP67 IEC 60529
    • IP69K
    • IP69
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.2 kg CO2 eq.
    • 0.2042867517
  • Nema Degree Of Protection
    • NEMA 13
    • NEMA 4X
  • Accessories
    • ZB5AZ905
    • ZBYF2101
    • ZBYLEG304001
    • ZBYFP2101
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Customizable
    • no
    • 1
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0039229565
    • 0 kg CO2 eq.
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Operator Profile
    • white standard handle
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave ac
  • Product Certifications
    • CSA
    • DNV
    • BV
    • LROS (Lloyds register of shipping)
    • UL Listed
  • Physical Attributes

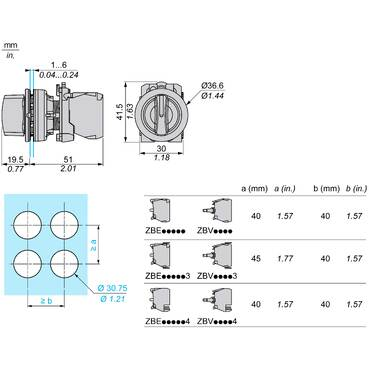

    • Cad Overall Depth : 46 mm
    • Cad Overall Height : 37 mm
    • Cad Overall Width : 37 mm
    • Cap Operator Or Lens Color : white
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Etim 10 : EC000222
    • Manufacturing Carbon Footprint : 0.2042867517
    • Distribution Carbon Footprint : 0.0039229565
    • Installation Carbon Footprint : 0.0102160396
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 0.0526998139
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308008EN
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : 1 - GSC certified
    • Bezel Material : dark grey plastic
    • Cap Operator Or Lens Color : white
    • Compatibility Code : ZB5
    • Device Short Name : ZB5
    • Gcr Bridge : ZB5FDCUST02
    • Group Of Product : non illuminated
    • Head Type : built-in-flush
    • Main Group : selector switch
    • Mechanical Durability : 1000000 cycles
    • Mounting Diameter : 30.5 mm
    • Operator Position Information : 2 positions 90°
    • Package Weight Lbs : 28.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for selector switch
    • Protective Treatment : TH
    • Range Of Product : Harmony XB5
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 0.3 kg CO2 eq.
    • Type Of Operator : stay put
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.2711255617
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : head for selector switch
    • Range Of Product : Harmony XB5
  • ETIM
    • ETIM 8 : EC000222
    • ETIM 9 : EC000222
  • Environment Attributes
    • Take Back : No
    • Reach Free Shvc : Yes
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.2711255617
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2308008EN
    • Environmental Disclosure : ENVPEP2308008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
  • Specifications
    • Country of Origin : France
