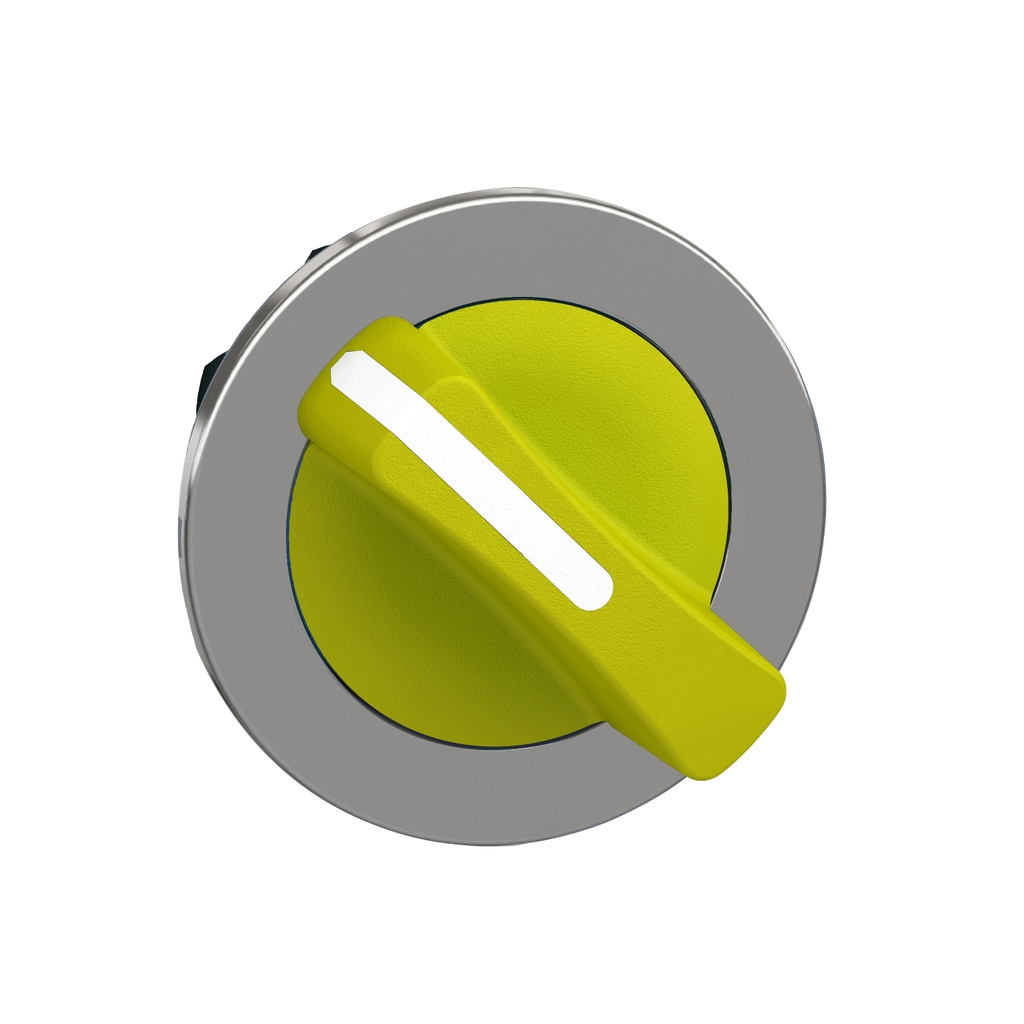

Head for selector switch, Harmony XB4, yellow handle, flush, 30mm, 2 positions, stay put

Head for selector switch, Harm

SQDZB4FD205 3606489581251
19.90 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for selector switch, Harmony XB4, yellow handle, flush, 30mm, 2 positions, stay put-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: CCC, CSA, EAC, UL Listed
  • IsSustainable: No
  • Net Weight: 0.078 kg
  • Standard: CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30.5 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Environment
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Overvoltage Category : class I IEC 60536
    • Ik Degree Of Protection : IK06 IEC 50102
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
    • Ambient Air Temperature For Operation : -40-70 °C
    • Protective Treatment : TH
    • Ambient Air Temperature For Storage : -40-70 °C
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Product Certifications : UL Listed || CSA || CCC || EAC
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • China Rohs Regulation : X
    • Environmental Disclosure : ENVPEP1808008EN
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI1808008EN
    • Toxic Heavy Metal Free : Yes
    • Rohs Exemption Information : Yes
  • Complementary
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
    • Mechanical Durability : 1000000 cycles
    • Cad Overall Width : 36.6 mm
    • Net Weight : 0.078 kg
    • Cad Overall Depth : 47 mm
    • Device Presentation : basic element
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cad Overall Height : 36.6 mm
  • Specifications
    • Mounting Diameter : 30.5 mm
    • Operator Position Information : 2 positions 90°
    • Type Of Operator : stay put
    • Head Type : built-in-flush
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Range Of Product : Harmony XB4
    • Device Short Name : ZB4F
    • Operator Profile : yellow standard handle
    • Product Or Component Type : head for selector switch
    • Bezel Material : chromium plated metal
