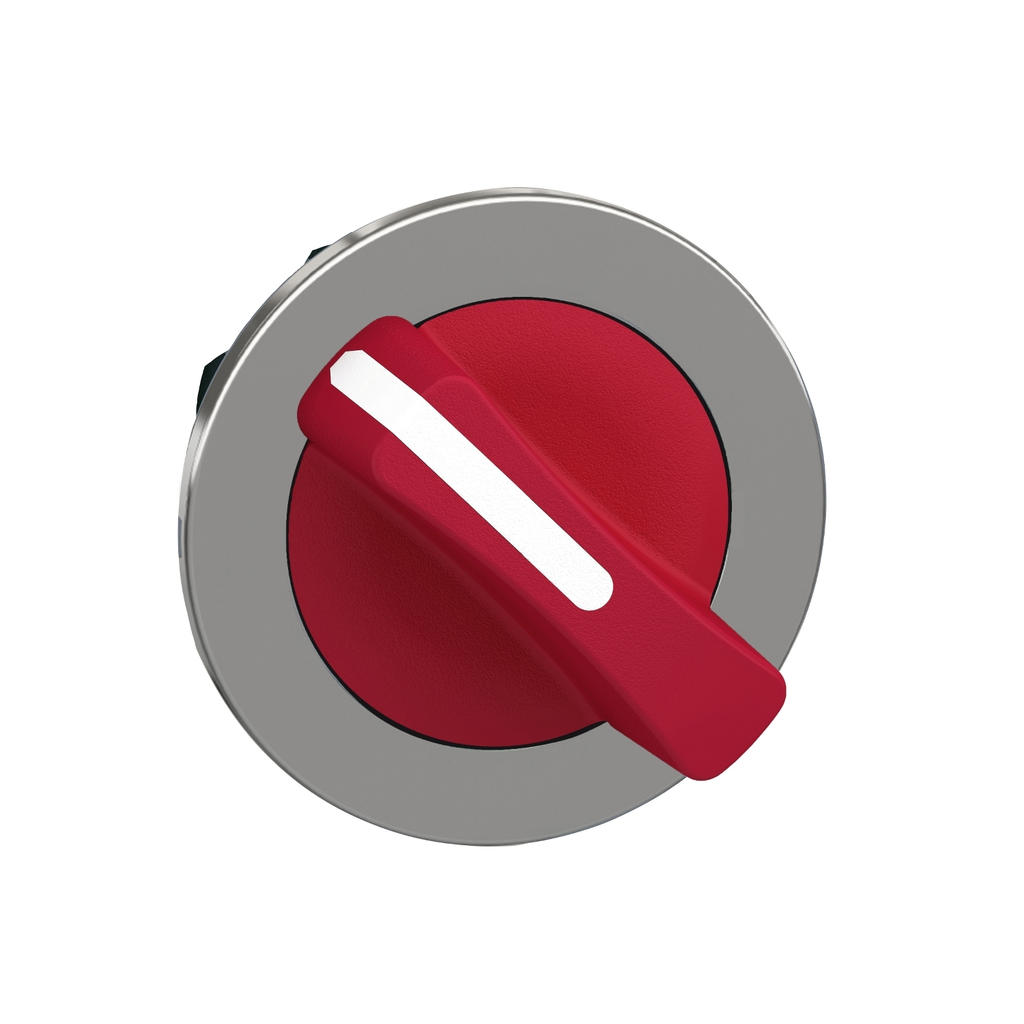

Head for selector switch, Harmony XB4, red handle, flush, 30mm, 2 positions, stay put

Head for selector switch, Harm

SQDZB4FD204 3606489581244
19.90 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for selector switch, Harmony XB4, red handle, flush, 30mm, 2 positions, stay put-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: CCC, CSA, EAC, UL Listed
  • Net Weight: 0.078 kg
  • Standard: CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30.5 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1808008EN
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
  • Environment
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Ik Degree Of Protection : IK06 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class I IEC 60536
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Protective Treatment : TH
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
  • Specifications
    • Sale Per Indivisible Quantity : 1
    • Range Of Product : Harmony XB4
    • Bezel Material : chromium plated metal
    • Operator Profile : red standard handle
    • Operator Position Information : 2 positions 90°
    • Mounting Diameter : 30.5 mm
    • Type Of Operator : stay put
    • Product Or Component Type : head for selector switch
    • Shape Of Signaling Unit Head : round
    • Device Short Name : ZB4F
    • Head Type : built-in-flush
  • Complementary
    • Mechanical Durability : 1000000 cycles
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
    • Cad Overall Width : 36.6 mm
    • Cad Overall Depth : 47 mm
    • Net Weight : 0.078 kg
    • Cad Overall Height : 36.6 mm
    • Device Presentation : basic element
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
