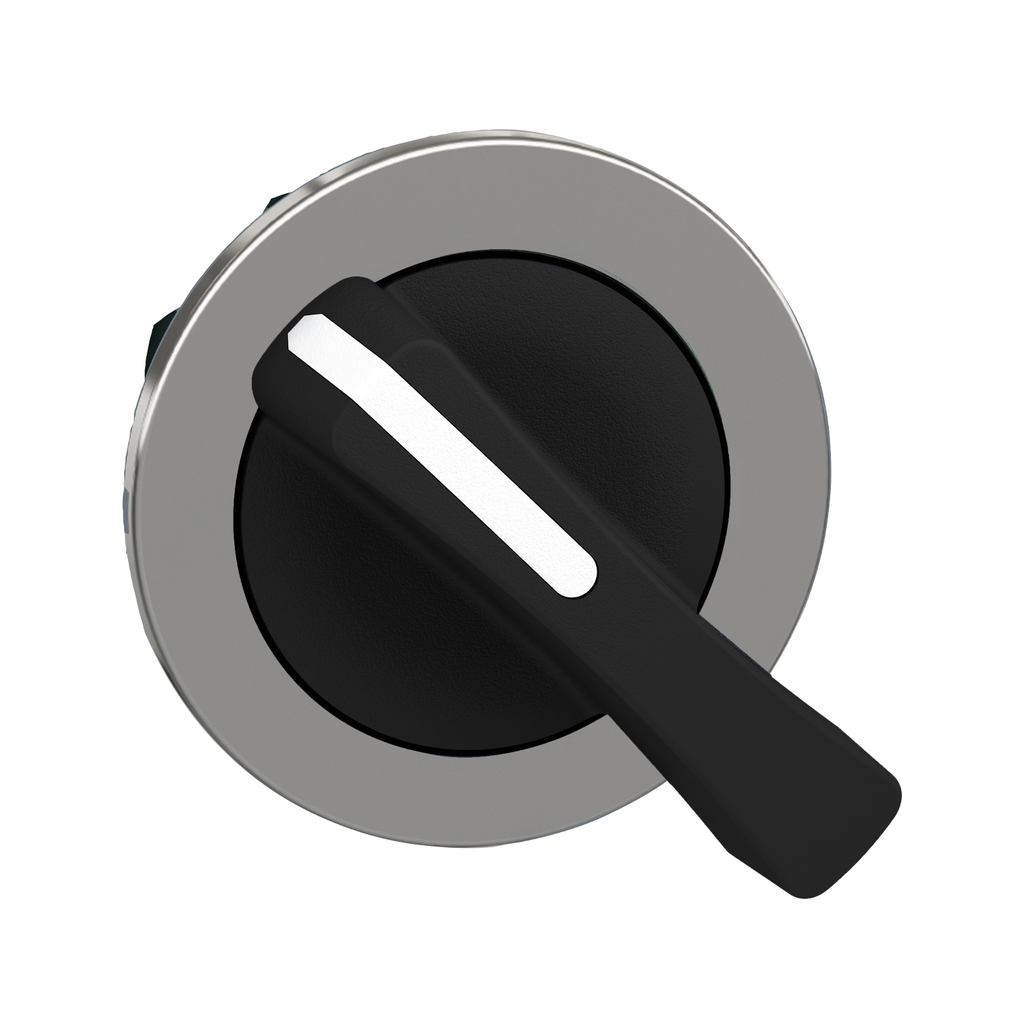

Head for selector switch, Harmony XB4, flush mounted black long handle 2 pos return right to left

Head for selector switch, Harm

SQDZB4FJ4 3606489581909
26.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for selector switch, Harmony XB4, flush mounted black long handle 2 pos return right to left-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: CCC, CSA, EAC, UL Listed
  • IsSustainable: No
  • Net Weight: 0.078 kg
  • Standard: CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30.5 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Complementary
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cad Overall Height : 43 mm
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
    • Mechanical Durability : 1000000 cycles
    • Cad Overall Width : 36.6 mm
    • Net Weight : 0.078 kg
    • Device Presentation : basic element
    • Cad Overall Depth : 47 mm
  • Environment
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class I IEC 60536
    • Protective Treatment : TH
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Ik Degree Of Protection : IK06 IEC 50102
  • Specifications
    • Operator Additional Information : non padlockable
    • Sale Per Indivisible Quantity : 1
    • Product Or Component Type : head for selector switch
    • Type Of Operator : right to left spring return
    • Device Short Name : ZB4F
    • Operator Position Information : 2 positions 90°
    • Shape Of Signaling Unit Head : round
    • Mounting Diameter : 30.5 mm
    • Head Type : built-in-flush
    • Range Of Product : Harmony XB4
    • Bezel Material : chromium plated metal
    • Operator Profile : black long handle
  • Offer Sustainability
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1808008EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Reach Free Of Svhc : Yes
    • Rohs Exemption Information : Yes
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
