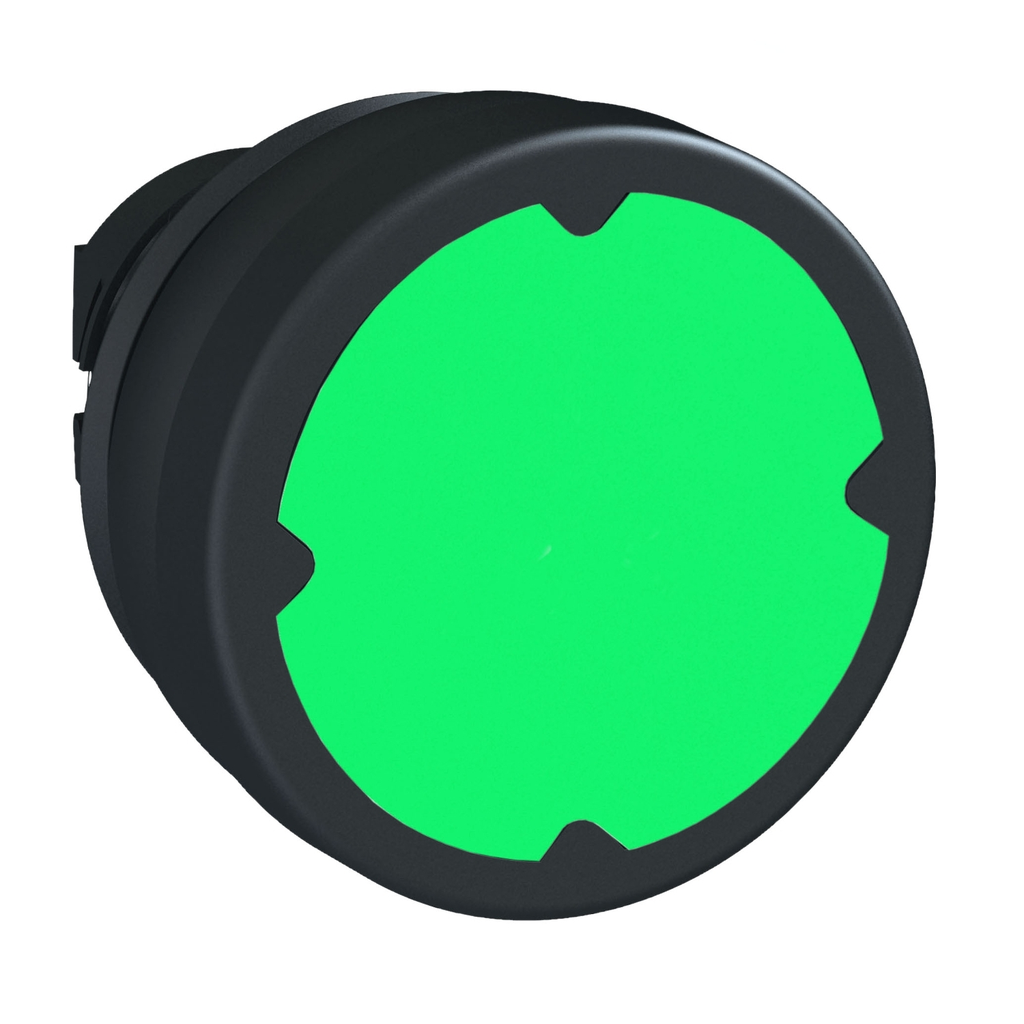

This Harmony XB5, flush green button head operates with a spring return / impulse mechanism, is used in harsh environment. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Environment
- Product Certifications : UL || CSA || CE
- Ik Degree Of Protection : IK03 conforming to IEC 62262
- Ambient Air Temperature For Operation : -40-70 °C
- Standards : UL 508 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2
- Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection : IP66 IEC 60529 || IP69K || IP67
- Ambient Air Temperature For Storage : -40-85 °C
- Nema Degree Of Protection : NEMA 4 UL 508 || NEMA 13 || NEMA 12
- Electrical Shock Protection Class : class II IEC 61140
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP2303008EN
- Sustainable Offer Status : Green Premium product
- Toxic Heavy Metal Free : Yes
- Reach Regulation : Free of Substances of Very High Concern above the threshold
- California Proposition 65 : "WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
- Reach Free Of Svhc : Yes
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI2303008EN
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Complementary
- Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Net Weight : 0.024 kg
- Cad Overall Height : 18.5 mm
- Device Presentation : basic element
- Resistance To High Pressure Washer : 90 Pa 82.5 °C
- Operator Profile : green flush, unmarked
- Mechanical Durability : 10000000 cycles
- Cad Overall Width : 37 mm
- Cad Overall Depth : 37 mm
- Specifications
- Country of Origin : France
- Width : 37 mm
- Height : 18.5 mm
- Weight : 0.024 kg
- Operator Additional Information : vertical mounting || horizontal mounting
- Range Of Product : Harmony XB5
- Mounting Diameter : 22 mm
- Type Of Operator : spring return
- Product Or Component Type : head for push-button
- Shape Of Signaling Unit Head : round
- Head Type : standard
- Sale Per Indivisible Quantity : 1
- Bezel Material : black plastic
- Device Short Name : ZB5
