SQUARE D

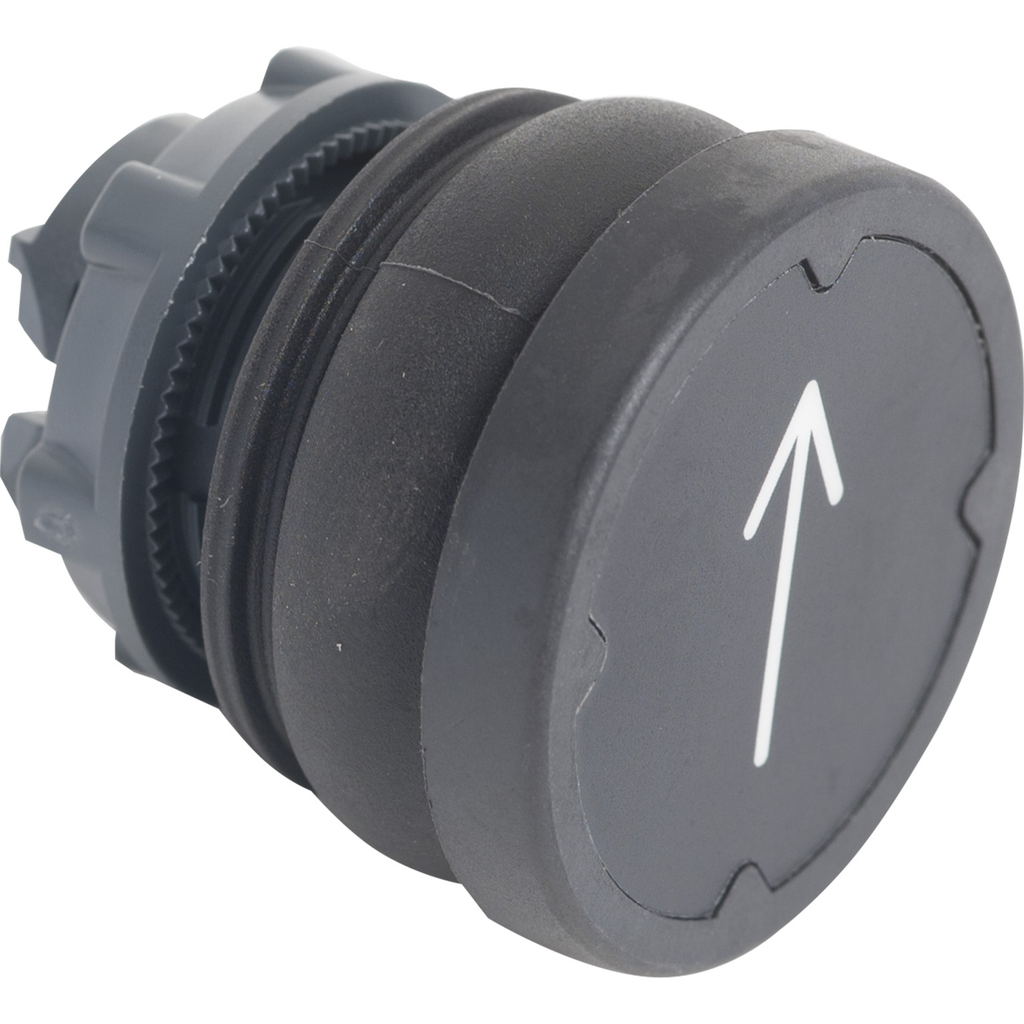

Head for push button, Harmony XB5, XB4, pushbutton harsh environment, black, with marking

HEAD FOR PUSH BUTTON, HARMONY

SQDZB5AC28043 ZB5AC28043 3606480554766
30.28 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for push button, Harmony XB5, XB4, pushbutton harsh environment, black, with marking-1
  • Bezel Material: Plastic
  • Certifications: CE, CSA, UL
  • IsSustainable: No
  • Net Weight: 0.024 kg
  • Standard: CSA C22.2, IEC 60947-1, IEC 60947-5-1, UL 508
  • Storage Temperature: -40-85 °C
QTY
  • Specifications
  • Environment
    • Ik Degree Of Protection : IK03 IEC 62262
    • Ambient Air Temperature For Storage : -40-85 °C
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 60947-1 || UL 508 || IEC 60947-5-1 || CSA C22.2
    • Electrical Shock Protection Class : class II IEC 61140
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69K || IP67
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Product Certifications : CSA || CE || UL
    • Nema Degree Of Protection : NEMA 4 UL 508 || NEMA 13 || NEMA 12
  • Specifications
    • Operator Additional Information : vertical mounting
    • Head Type : standard
    • Range Of Product : Harmony XB5
    • Shape Of Signaling Unit Head : round
    • Product Or Component Type : head for push-button
    • Device Short Name : ZB5
    • Bezel Material : black plastic
    • Mounting Diameter : 22 mm
    • Sale Per Indivisible Quantity : 1
    • Type Of Operator : spring return
  • Complementary
    • Mechanical Durability : 10000000 cycles
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Operator Profile : black flush, type H043 white)
    • Cad Overall Depth : 37 mm
    • Cad Overall Width : 37 mm
    • Net Weight : 0.024 kg
    • Cad Overall Height : 18.5 mm
    • Resistance To High Pressure Washer : 90 Pa 82.5 °C
  • Offer Sustainability
    • China Rohs Regulation : X
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI1710010EN
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Reach Free Of Svhc : Yes
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Toxic Heavy Metal Free : Yes
    • Environmental Disclosure : ENVPEP1710010EN
