Head for push button, Harmony XB4, push button harsh environment, red, with white marking O

HEAD FOR PUSH BUTTON, HARMONY

SQDZB4BC48021 ZB4BC48021 3606480444647
34.25 / EA
http://schema.org/OutOfStock

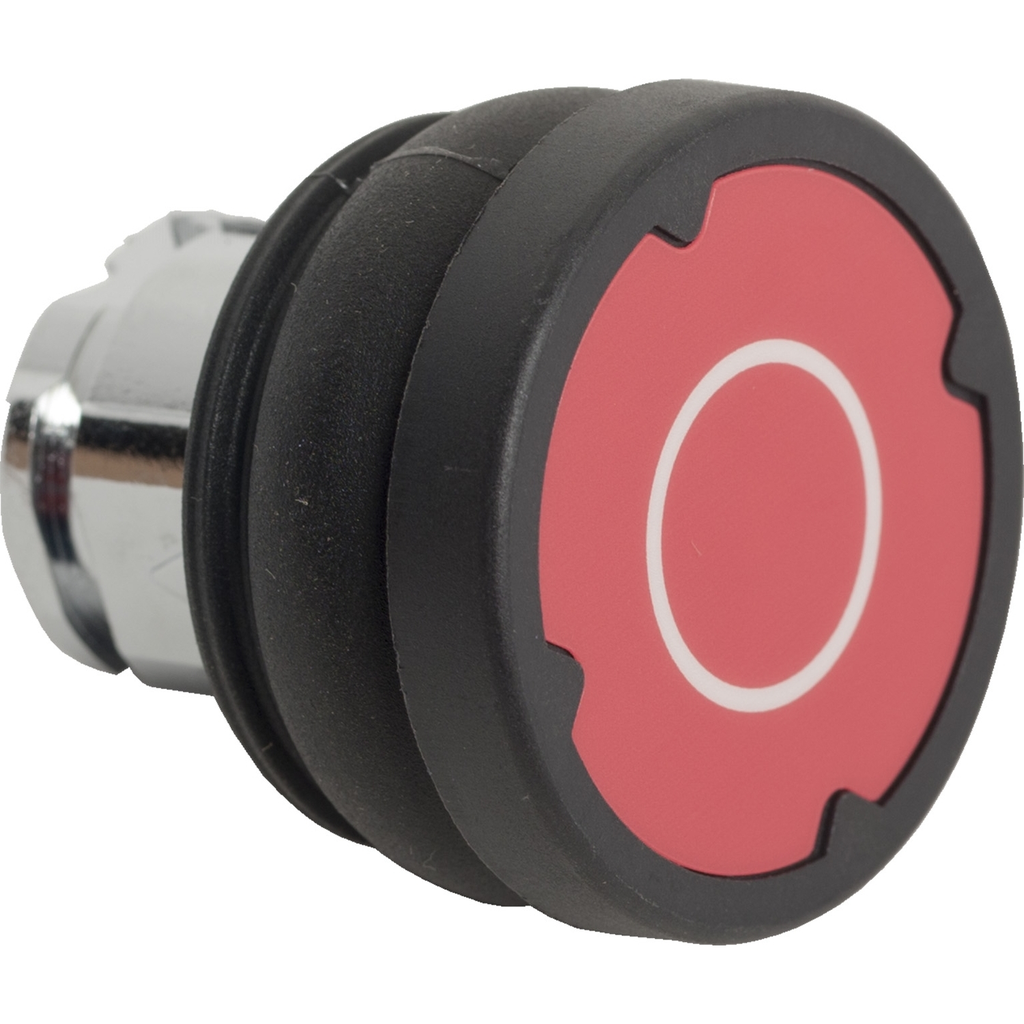

Mayer-DDS-Head for push button, Harmony XB4, push button harsh environment, red, with white marking O-1
  • Bezel Material: Chromium Plated Metal
  • Country of Origin: USA
  • Head Type: Standard
  • Height: 18.5 mm
  • Net Weight: 0.036 kg
  • Warranty Length: 18 mth
  • Weight: 0.036 kg
  • Width: 37 mm
This Harmony XB4, flush red button head operates with a spring return / impulse mechanism, is used in harsh environment. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony XB4, flush red button head operates with a spring return / impulse mechanism, is used in harsh environment. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL || CE || CSA
    • Ik Degree Of Protection : IK06 conforming to IEC 62262
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : CSA C22.2 || UL 508 || IEC 60947-5-1 || IEC 60947-1
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69K || IP67 || IP69
    • Resistance To High Pressure Washer : 90 Pa 82.5 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Nema Degree Of Protection : NEMA 4 UL 508 || NEMA 13 || NEMA 12
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Environmental Disclosure : ENVPEP2308035EN
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2308035EN
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.2865801423
  • Complementary
    • Operator Additional Information : vertical mounting
    • Main Group : harsh environment
    • Type Of Operator : spring return
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
    • Colour Of Marking : white
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • Shape Of Signaling Unit Head : round
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Net Weight : 0.036 kg
    • Cad Overall Height : 18.5 mm
    • Device Presentation : basic element
    • Operator Profile : red flush, type H021 white)
    • Mechanical Durability : 10000000 cycles
    • Marking : type H021
    • Electrical Shock Protection Class : class I IEC 61140
    • Cad Overall Width : 37 mm
    • Cad Overall Depth : 37 mm
    • Group Of Product : flush marked type H021
  • Specifications
    • Country of Origin : United States
    • Width : 37 mm
    • Height : 18.5 mm
    • Weight : 0.036 kg
    • Range Of Product : Harmony XB4
    • Mounting Diameter : 22.5 mm
    • Product Or Component Type : head for push-button
    • Cap/Operator Or Lens Colour : red
    • Head Type : standard
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Device Short Name : ZB4
