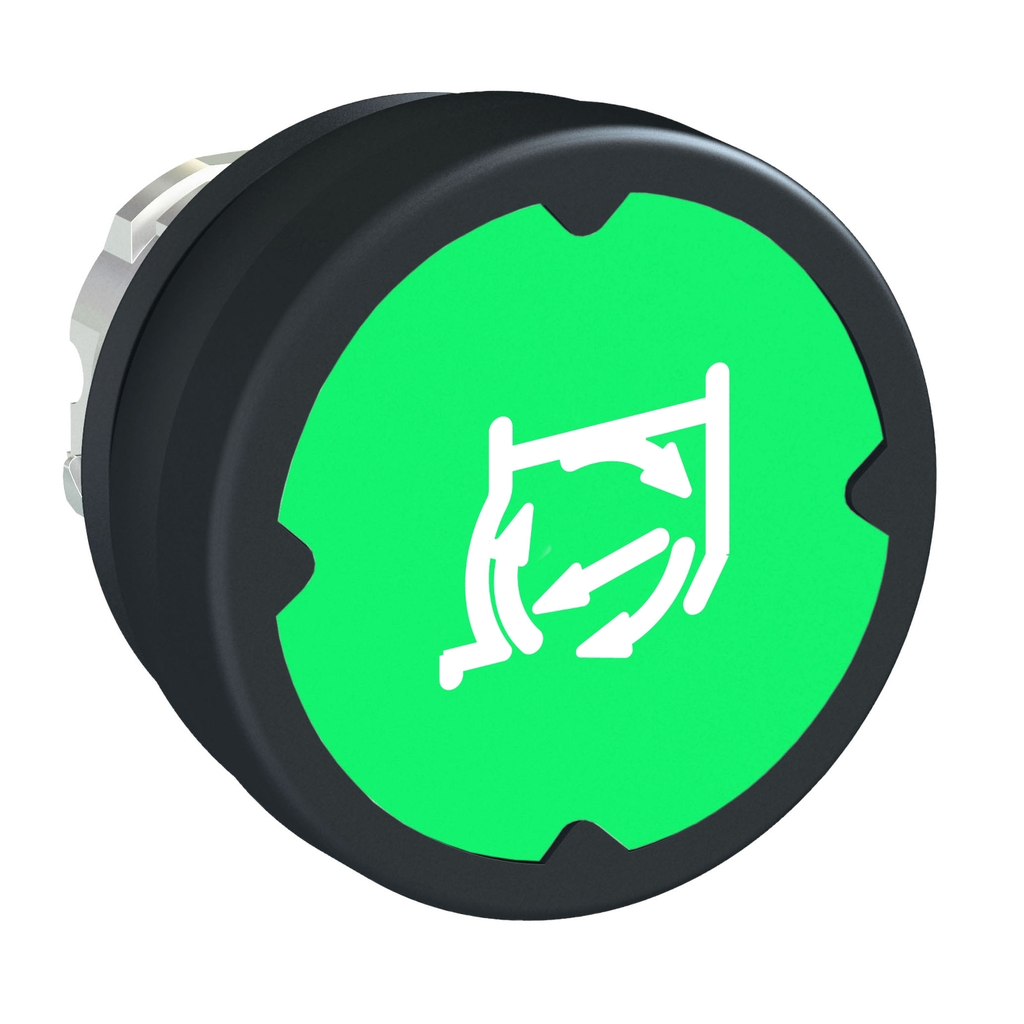

Head for push button, Harmony XB4, pushbutton harsh environment, green, with marking legend rotated 90°

Name: Head for push button, Harmony XB4, pushbutton harsh environment, green, with marking legend rotated 90°
Brand: SQUARE D
SKU: SQDZB4BC38011RA
Price: 35.08 USD
Availability: OutOfStock

SQDZB4BC38011RA ZB4BC38011RA 3606480444388

35.08 / EA

http://schema.org/OutOfStock

Mayer-DDS-Head for push button, Harmony XB4, pushbutton harsh environment, green, with marking legend rotated 90°-1

Bezel Material: Chromium Plated Metal
Head Type: Standard
Warranty Length: 18 mth

QTY

Features
Specifications

Prop 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Physical Attributes

Cad Overall Depth : 37 mm
Cad Overall Height : 18.5 mm
Cad Overall Width : 37 mm
Color Of Marking : white

Important Information Attributes

Customizable : no, 0
Electrical Composition Code : C1 9 single front mounting, C1 9 single front mounting, C1 9 single front mounting, C1 9 single front mounting, C2 9 single and double front mounting, C2 9 single and double front mounting, C2 9 single and double front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C11 3 single front mounting, C11 3 single front mounting, C11 3 single front mounting, C15 1 single front mounting, C15 1 single front mounting, C15 1 single front mounting, C15 1 single front mounting
Electrical Shock Protection Class : class I conforming to IEC 61140, class I conforming to IEC 61140
Operator Profile : green flush, type H011 white), green flush, type H011 white), green flush, type H011 white), green flush, type H011 white)
Resistance To High Pressure Washer : 90 Pa 82.5 °C, 90 Pa 82.5 °C
Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Carbon Footprint Of The Distribution Phase A4 : 0.0041846738, 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0404763938
Carbon Footprint Of The Installation Phase A5 : 0.0064182206, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.2268166074
Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
Local Data Status : Publishable
Local Publishable Date : 2025-11-25
Legacy WEEE Scope : Out
Scope Perimeter : At least in Europe
EOLI Availability Display : Yes
End Of Life Doc Ref : ENVEOLI2308035EN
Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : Yes
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Return Indicator : Y
WD Status : 1 - GSC certified
Bezel Material : chromium plated metal
Color Of Marking : white
Compatibility Code : ZB4
Device Short Name : ZB4
Group Of Product : flush marked type H011
Head Type : standard
Main Group : harsh environment
Mounting Diameter : 22.5 mm
Package Weight Lbs : 34.000 g
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : head for push-button
Range Of Product : Harmony XB4
Returnability : Yes
Shape Of Signaling Unit Head : round
Sustainable Packaging : No
Total Lifecycle Carbon Footprint : 0.3 kg CO2 eq.
Type Of Operator : spring return
Pep Code : ENVPEP2308035EN
Pep Verification Date : 2023-08-01
PCR Version : PEP-PCR-ed4-2021 09 06
PSR Version : PSR-0005-ed2-2016 03 29
Type Of Verification For The Pep : Independent internal review
Functional Unit Description : This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional Unit Unit : Unit
Product Kit Identifier : N

Environment Attributes Main

EU ROHS Directive : Compliant, Pro-active compliance (Product out of EU RoHS legal scope)
IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529, IP69K, IP69
Nema Degree Of Protection : NEMA 4 UL 508, NEMA 4 UL 508, NEMA 13, NEMA 12
Reach Regulation : Free of Substances of Very High Concern above the threshold, Free of Substances of Very High Concern above the threshold
ROHS Exemption Information : Yes
Take Back : No
Reach Free SHVC : Yes
Recycled Metal Content At Cr Level : 0 %
China ROHS Regulation : X
Toxic Heavy Metal Free : Yes
Mercury Free : Yes
Carbon Footprint : 0.2778958956
Circularity Profile : ENVEOLI2308035EN
Environmental Disclosure : ENVPEP2308035EN
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : No
Reach Free Of SVHC : Yes
Pep Code : ENVPEP2308035EN
Pep Verification Date : 2023-08-01
PCR Version : PEP-PCR-ed4-2021 09 06
PSR Version : PSR-0005-ed2-2016 03 29
Type Of Verification For The Pep : Independent internal review

General Attributes

Product Or Component Type : head for push-button
Range Of Product : Harmony XB4

Contractual Warranty Attributes

Warranty Period : 18 months
Warranty : 18 months
