SQUARE D

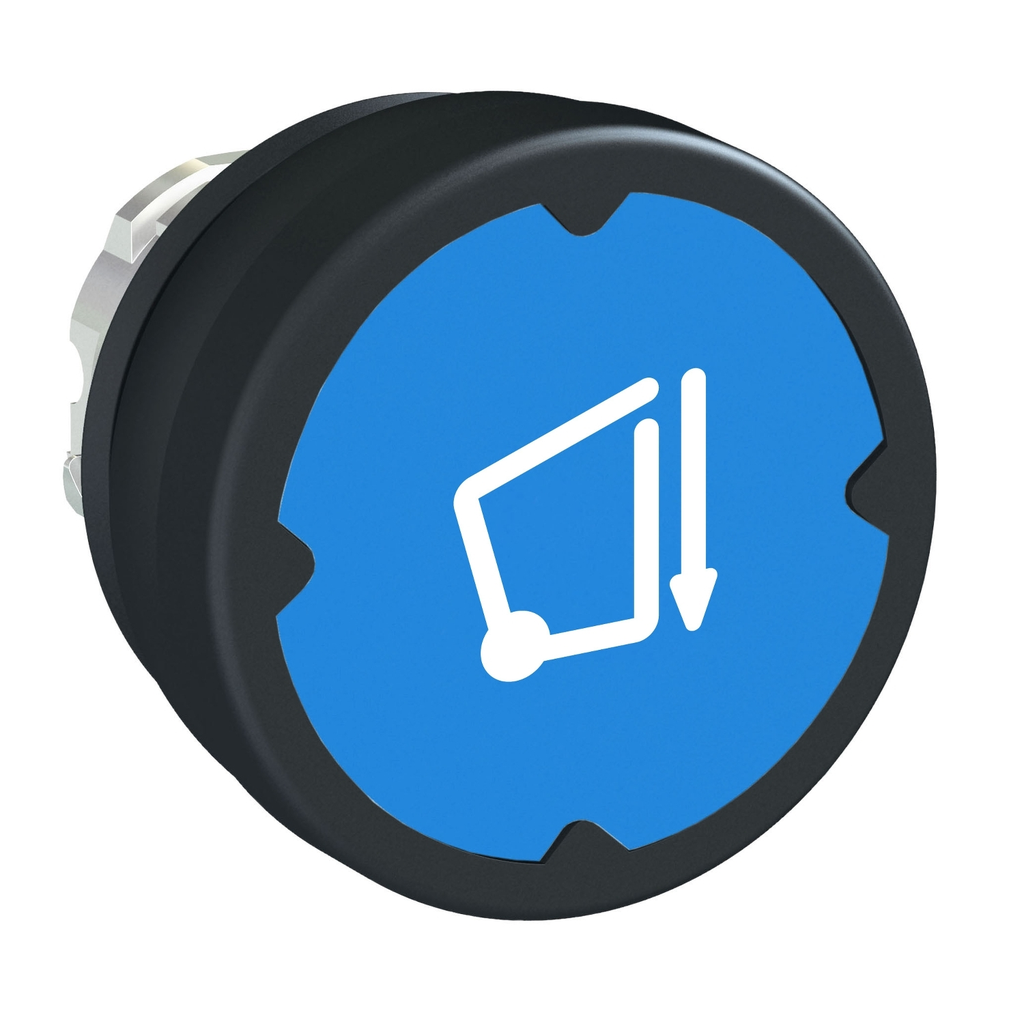

Head for push button, Harmony XB4, pushbutton harsh environment, dark blue, with marking

Head for push button, Harmony XB4, pushbutton harsh environment, dark blue, with marking

SQDZB4BC68006 ZB4BC68006 3606480444692
34.25 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for push button, Harmony XB4, pushbutton harsh environment, dark blue, with marking-1
  • Bezel Material: Chromium Plated Metal
  • Country of Origin: France
  • Head Type: Standard
  • Height: 18.5 mm
  • Net Weight: 0.036 kg
  • Warranty Length: 18 mth
  • Weight: 0.036 kg
  • Width: 37 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL || CE || CSA
    • Ik Degree Of Protection : IK06 conforming to IEC 62262
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : CSA C22.2 || IEC 60947-5-1 || IEC 60947-1 || UL 508
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69K || IP67 || IP69
    • Resistance To High Pressure Washer : 90 Pa 82.5 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Nema Degree Of Protection : NEMA 4 UL 508 || NEMA 13 || NEMA 12
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Environmental Disclosure : ENVPEP2308035EN
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2308035EN
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.2865801423
  • Complementary
    • Operator Additional Information : vertical mounting
    • Main Group : harsh environment
    • Type Of Operator : spring return
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
    • Colour Of Marking : white
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • Shape Of Signaling Unit Head : round
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Net Weight : 0.036 kg
    • Cad Overall Height : 18.5 mm
    • Operator Profile : blue flush, type H006 white)
    • Mechanical Durability : 10000000 cycles
    • Marking : type H006
    • Electrical Shock Protection Class : class I IEC 61140
    • Cad Overall Width : 37 mm
    • Cad Overall Depth : 37 mm
    • Group Of Product : flush marked type H006
  • Specifications
    • Country of Origin : France
    • Width : 37 mm
    • Height : 18.5 mm
    • Weight : 0.036 kg
    • Range Of Product : Harmony XB4
    • Mounting Diameter : 22.5 mm
    • Product Or Component Type : head for push-button
    • Cap/Operator Or Lens Colour : blue
    • Head Type : standard
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Device Short Name : ZB4
