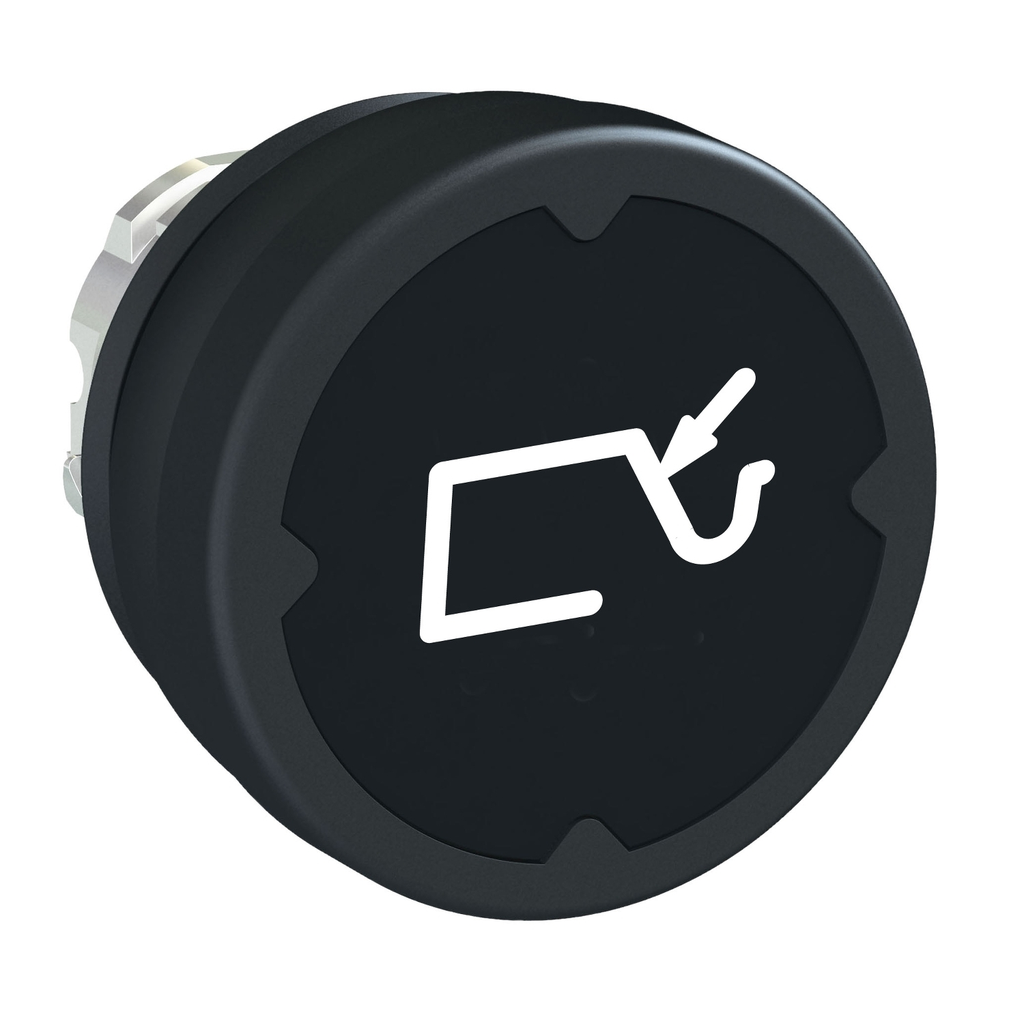

Head for push button, Harmony XB4, push button harsh environment, black, with marking type H010

HEAD FOR PUSH BUTTON, HARMONY

SQDZB4BC28010 ZB4BC28010 3606480444142
36.60 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for push button, Harmony XB4, push button harsh environment, black, with marking type H010-1
  • Bezel Material: Chromium Plated Metal
  • Country of Origin: France
  • Head Type: Standard
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Cap Operator Or Lens Color
    • black
  • Electrical Composition Code
    • C1 9 single front mounting
    • C2 9 single and double front mounting
    • C2 9 single and double front mou
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0072204982
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0 kg CO2 eq.
    • 0.0455359431
  • Standards
    • IEC 60947-1
    • CSA C22.2
    • UL 508
    • IEC 60947-5-1
  • Ip Degree Of Protection
    • IP66 IEC 60529
    • IP69K
    • IP67
    • IP69
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.3 kg CO2 eq.
    • 0.2551686833
  • Electrical Shock Protection Class
    • class I conforming to IEC 61140
  • Nema Degree Of Protection
    • NEMA 4 UL 508
    • NEMA 13
    • NEMA 12
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Customizable
    • no
    • 0
  • Carbon Footprint Of The Distribution Phase A4
    • 0.004707758
    • 0 kg CO2 eq.
  • Resistance To High Pressure Washer
    • 90 Pa 82.5 °C
  • Operator Profile
    • black flush, type H010 white)
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • Product Certifications
    • CSA
    • UL
    • CE
  • Physical Attributes
    • Cad Overall Depth : 37 mm
    • Cad Overall Height : 18.5 mm
    • Cad Overall Width : 37 mm
    • Color Of Marking : white
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-06
    • ETIM 10 : EC000221
    • Manufacturing Carbon Footprint : 0.2551686833
    • Distribution Carbon Footprint : 0.004707758
    • Installation Carbon Footprint : 0.0072204982
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 0.0455359431
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308035EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : chromium plated metal
    • Color Of Marking : white
    • Compatibility Code : ZB4
    • Device Short Name : ZB4
    • Group Of Product : flush marked type H010
    • Head Type : standard
    • Main Group : harsh environment
    • Marking : type H010
    • Mechanical Durability : 10000000 cycles
    • Mounting Diameter : 22.5 mm
    • Operator Additional Information : vertical mounting
    • Package Weight Lbs : 32.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for push-button
    • Range Of Product : Harmony XB4
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 0.3 kg CO2 eq.
    • Type Of Operator : spring return
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.3126328826
  • General Attributes
    • Product Or Component Type : head for push-button
    • Range Of Product : Harmony XB4
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=150048478&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.3126328826
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Circularity Profile : ENVEOLI2308035EN
    • Environmental Disclosure : ENVPEP2308035EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
