SQUARE D

Head for push button, Harmony XB4, pushbutton harsh environment, black, with marking

HEAD FOR PUSH BUTTON, HARMONY

SQDZB4BC28001 3606480444128
32.03 / EA
http://schema.org/OutOfStock

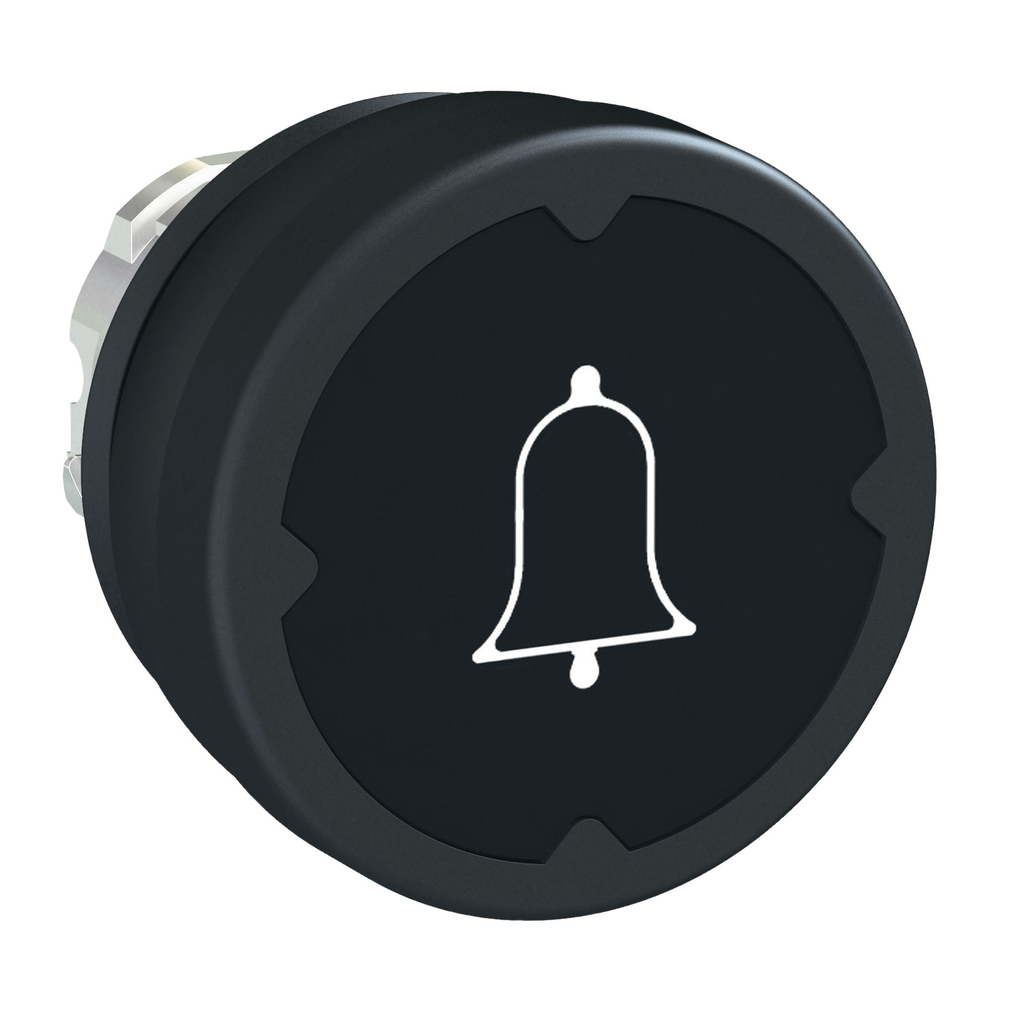

Mayer-DDS-Head for push button, Harmony XB4, pushbutton harsh environment, black, with marking-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: CE, CSA, UL
  • IsSustainable: No
  • Net Weight: 0.036 kg
  • Standard: CSA C22.2, IEC 60947-1, IEC 60947-5-1, UL 508
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Environment
    • Standards : IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 || UL 508
    • Nema Degree Of Protection : NEMA 4 UL 508 || NEMA 13 || NEMA 12
    • Ambient Air Temperature For Storage : -40-85 °C
    • Product Certifications : CSA || CE || UL
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69K || IP67 || IP69
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ik Degree Of Protection : IK06 IEC 62262
    • Resistance To High Pressure Washer : 90 Pa 82.5 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Circularity Profile : ENVEOLI1808008EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Sustainable Offer Status : Green Premium product
    • Reach Free Of Svhc : Yes
  • Complementary
    • Colour Of Marking : white
    • Electrical Shock Protection Class : class I IEC 61140
    • Group Of Product : flush marked type H001
    • Shape Of Signaling Unit Head : round
    • Operator Profile : black flush, type H001 white)
    • Cad Overall Width : 37 mm
    • Cad Overall Height : 18.5 mm
    • Mechanical Durability : 10000000 cycles
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Cap/Operator Or Lens Colour : black
    • Main Group : harsh environment
    • Marking : type H001
    • Net Weight : 0.036 kg
    • Operator Additional Information : vertical mounting
    • Cad Overall Depth : 37 mm
    • Type Of Operator : spring return
  • Specifications
    • Sale Per Indivisible Quantity : 1
    • Head Type : standard
    • Bezel Material : chromium plated metal
    • Mounting Diameter : 22 mm
    • Device Short Name : ZB4
    • Range Of Product : Harmony XB4
    • Product Or Component Type : head for push-button
