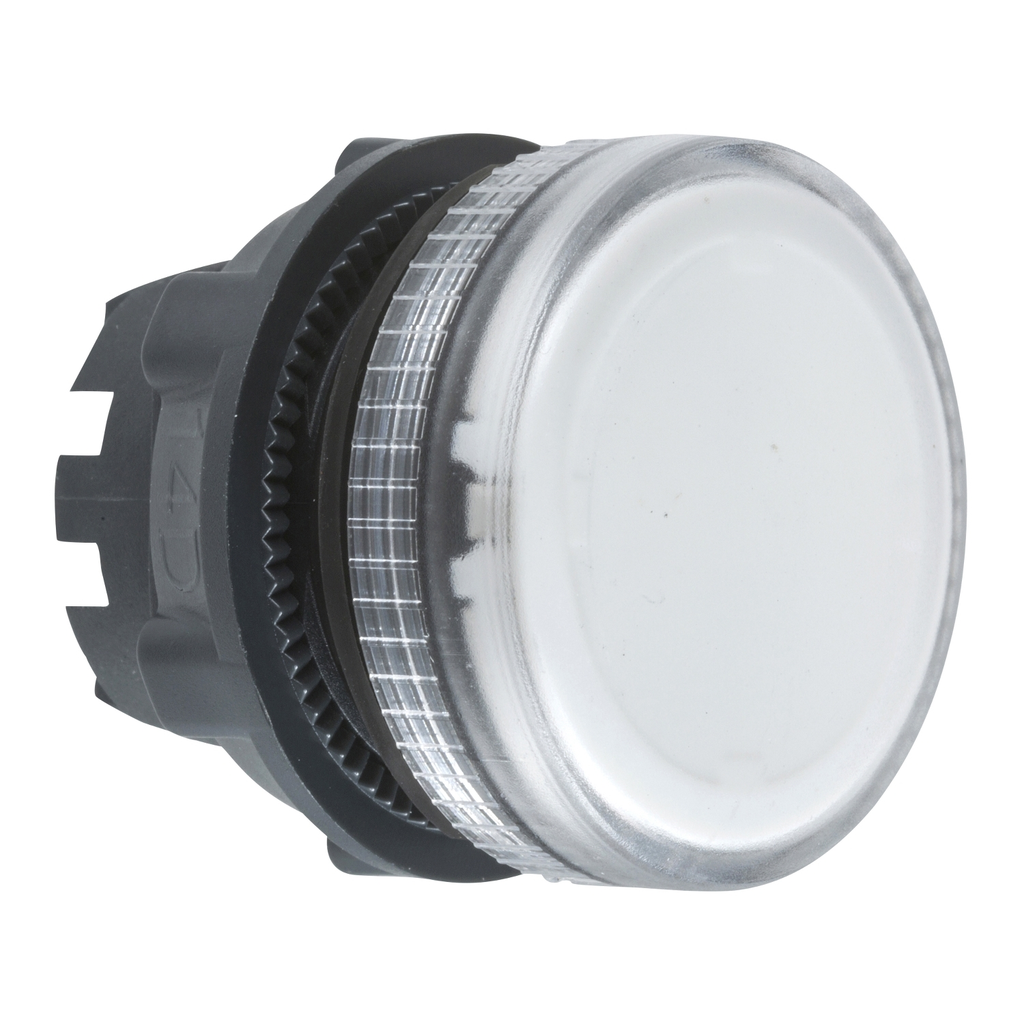

Head for pilot light, Harmony XB5, plastic, clear, 22mm, plain lens, BA9s base fitting

HEAD FOR PILOT LIGHT, HARMONY

SQDZB5AV07 ZB5AV07 3389110137002
7.29 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for pilot light, Harmony XB5, plastic, clear, 22mm, plain lens, BA9s base fitting-1
  • Bezel Material: Plastic
  • Country of Origin: France
  • Head Type: Standard
  • Warranty Length: 18 mth
This Harmony XB5 plain lens head for pilot light is supplied with BA9s base. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of lens. It enables complex machine
QTY
  • Product Description
  • Features
  • Specifications
This Harmony XB5 plain lens head for pilot light is supplied with BA9s base. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of lens. It enables complex machine
  • Cap Operator Or Lens Color
    • clear
  • Overvoltage Category
    • class II conforming to IEC 60536
  • Electrical Composition Code
    • P3 front mounting BA 9s
    • P4 front mounting BA 9s and transformer
    • PF2 front mounting BA 9s
    • PF2 front mo
  • Carbon Footprint Of The Installation Phase A5
    • 0.0062173333
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0 kg CO2 eq.
    • 0.0277568889
  • Standards
    • IEC 60947-5-4
    • IEC 60947-1
    • JIS C8201-5-1
    • UL 508
    • IEC 60947-5-5
    • CSA C22.2 No 14
    • IEC 60947-5-1
    • JIS C8201-1
  • Station Name
    • XALD 1...5 cut-outs
    • XALK 2...5 cut-outs
  • Ip Degree Of Protection
    • IP66 IEC 60529
    • IP67 IEC 60529
    • IP69 IEC 60529
    • IP69K ISO 20653
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.1 kg CO2 eq.
    • 0.12208
  • Nema Degree Of Protection
    • NEMA 13
    • NEMA 4X
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Customizable
    • no
    • 1
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0020922667
    • 0 kg CO2 eq.
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave ac
  • Physical Attributes
    • Cad Overall Depth : 31 mm
    • Cad Overall Height : 29 mm
    • Cad Overall Width : 29 mm
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • ETIM 10 : EC000223
    • Manufacturing Carbon Footprint : 0.12208
    • Distribution Carbon Footprint : 0.0020922667
    • Installation Carbon Footprint : 0.0062173333
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 0.0277568889
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308027EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : dark grey plastic
    • Compatibility Code : ZB5
    • Device Short Name : ZB5
    • Gcr Bridge : ZB5AVCUST01
    • Group Of Product : lens fitted BA9s
    • Head Type : standard
    • Main Group : pilot light
    • Mounting Diameter : 22 mm
    • Operator Additional Information : with plain lens
    • Package Weight Lbs : 16.0 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for pilot light
    • Protective Treatment : TH
    • Range Of Product : Harmony XB5
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.1581464889
    • Relationshiptype : Compatible relationship
    • Accessories : ZB5AZ905
  • General Attributes
    • Product Or Component Type : head for pilot light
    • Range Of Product : Harmony XB5
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=654942&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.1581464889
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2308027EN
    • Environmental Disclosure : ENVPEP2308027EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Product Compatibility : BA 9s
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
  • Overview Attributes
    • Device Presentation : basic element
