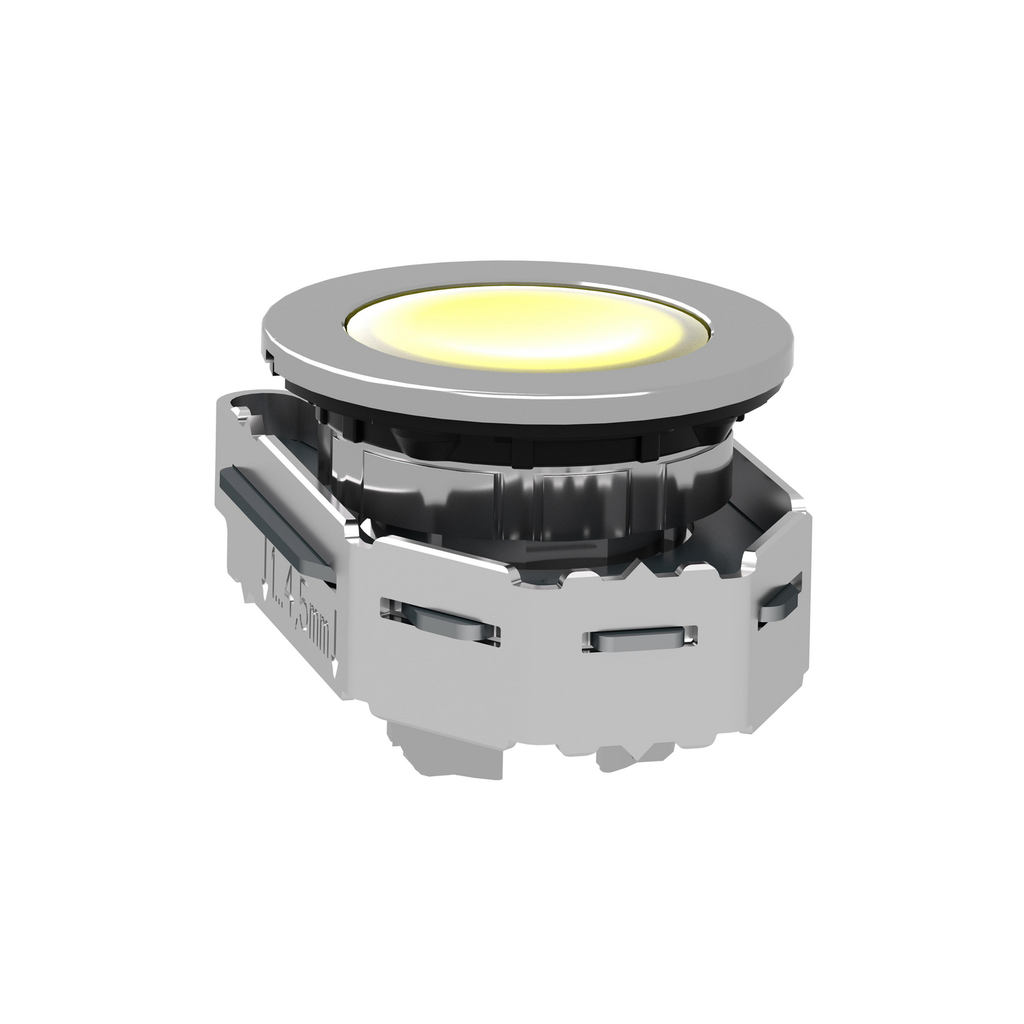

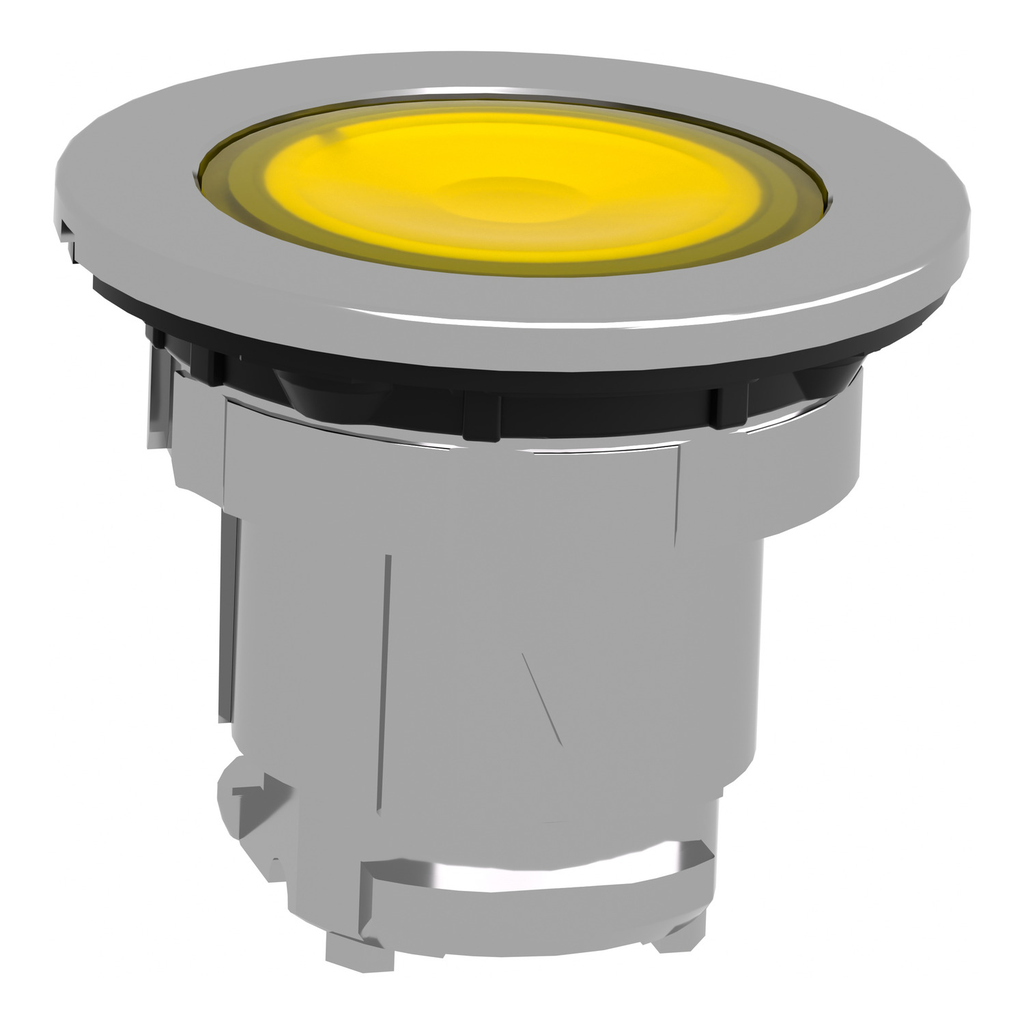

This pilot light head for universal LED provides clear visual feedback on the status of your machines. It is easily installed into a 30.5mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance.

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FV013_CAD_2023&p_File_name=zb4fv013_2d-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FV013_CAD_2023&p_File_name=zb4fv013_2d-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FV013_CAD_2023&p_File_name=zb4fv013_2d-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FV013_CAD_2023&p_File_name=zb4fv013_2d-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FV013_CAD_2023&p_File_name=zb4fv013_2d-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FV013_CAD_2023&p_File_name=zb4fv013_2d-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FV013_CAD_2023&p_File_name=zb4fv013_2d-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FV013_CAD_2023&p_File_name=zb4fv013_2d-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FV013_CAD_2023&p_File_name=zb4fv013_2d-rear.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FV013_CAD_2023&p_File_name=zb4fv013_2d-rear.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FV013_CAD_2023&p_File_name=zb4fv013_2d-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FV013_CAD_2023&p_File_name=zb4fv013_2d-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FV013_CAD_2023&p_File_name=zb4fv013_2d-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FV013_CAD_2023&p_File_name=zb4fv013_2d-top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FV013_CAD_2023&p_File_name=ZB4FV013.stp
• Physical Attributes
• Cap Operator Or Lens Color : yellow, yellow
• Cad Overall Depth : 31 mm
• Cad Overall Height : 36.6 mm
• Cad Overall Width : 36.6 mm
• Conformance Attributes
• Product Certifications : UL Listed, CSA, CCC, EAC
• Standards : IEC 60947-5-4, IEC 60947-5-1, UL 508, CSA C22.2 No 14, IEC 60947-1, JIS C8201-5-1, CE, JIS C8201-1
• Important Information Attributes
• Customizable : 1, no
• Electrical Composition Code : P1 front mounting integral LED, P2 front mounting integral LED and transformer
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
• Vibration Resistance : 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
• Cap Operator Or Lens Color : yellow, yellow
• Carbon Footprint Of The Distribution Phase A4 : 0.0075843447, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0692762136
• Carbon Footprint Of The Installation Phase A5 : 0.0107440777, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.4 kg CO2 eq., 0.4352463592
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Medium Desc : Head for pilot light, Harmony XB4, metal, yellow flush mounted, 30mm, universal LED, plain lens
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : Y
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308026EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Product Kit Identifier : N
• Average Percentage Of Recycled Metal Content : 20 %
• Average Percentage Of Recycled Plastic Content : 44 %
• Bezel Material : chromium plated metal
• Compatibility Code : ZB4
• Device Short Name : ZB4F
• Gcr Bridge : ZB4FVCUST01
• Group Of Product : lens fitted integral LED
• Head Type : built-in-flush
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Main Group : pilot light
• Mounting Diameter : 30.5 mm
• Operator Additional Information : with plain lens
• Overvoltage Category : class I conforming to IEC 60536
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : head for pilot light
• Protective Treatment : TH
• Range Of Product : Harmony XB4
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.5 kg CO2 eq.
• Operator Add Information : with plain lens
• Pep Code : ENVPEP2308026_V1-EN
• Database Version : 2022-01
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : XB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-70 °C, -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Ip Degree Of Protection : IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
• Take Back : Nej
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 20 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.5228509951
• Circularity Profile : ENVEOLI2308026EN
• Environmental Disclosure : ENVPEP2308026_V1-EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : universal LED
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308026_V1-EN
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : head for pilot light
• Range Of Product : Harmony XB4
• ETIM
• ETIM 8 : EC000223
• ETIM 9 : EC000223
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : basic element
