Head for pilot light, Harmony XB4, metal, orange flush mounted, 30mm, universal LED, plain lens

Head for pilot light, Harmony XB4, metal, orange flush mounted, 30mm, universal LED, plain lens

SQDZB4FV053 ZB4FV053 3606489582562
7.58 / EA
http://schema.org/OutOfStock

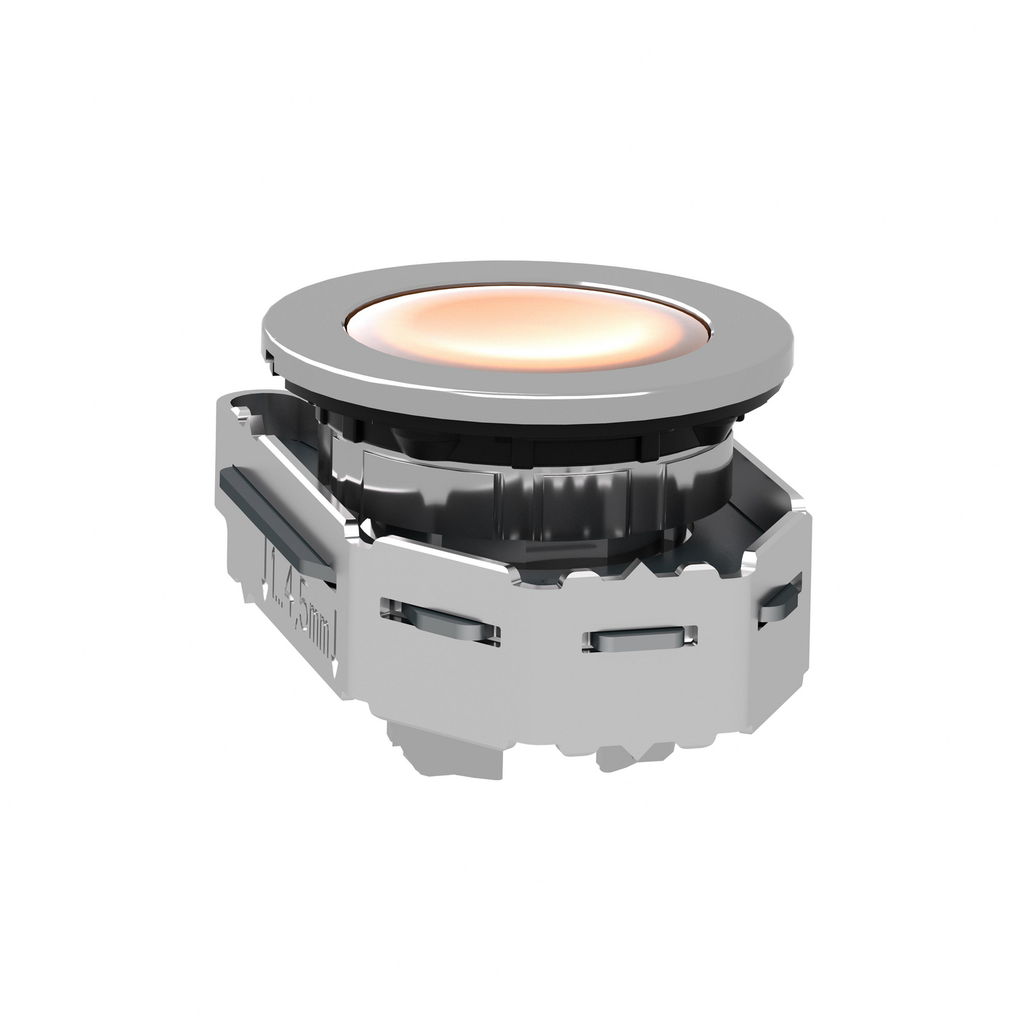

Mayer-DDS-Head for pilot light, Harmony XB4, metal, orange flush mounted, 30mm, universal LED, plain lens-2
  • Bezel Material: Chromium Plated Metal
  • Country of Origin: France
  • Head Type: Built-in-flush
  • Height: 36.6 mm
  • Net Weight: 0.058 kg
  • Warranty Length: 18 mth
  • Weight: 0.058 kg
  • Width: 36.6 mm
This pilot light head for universal LED provides clear visual feedback on the status of your machines. It is easily installed into a 30.5mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance.
QTY
  • Product Description
  • Specifications
This pilot light head for universal LED provides clear visual feedback on the status of your machines. It is easily installed into a 30.5mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance.
  • Environment
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Ik Degree Of Protection : IK06 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 60947-5-4 || IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 || 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class I conforming to IEC 60536
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2308026EN
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2308026EN
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Global Warming ; Total Life Cycle​ : 1 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.5228509951
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Electrical Composition Code : P1 front mounting integral LED || P2 front mounting integral LED and transformer
    • Net Weight : 0.058 kg
    • Cad Overall Height : 36.6 mm
    • Device Presentation : basic element
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cad Overall Width : 36.6 mm
    • Cad Overall Depth : 31 mm
  • Specifications
    • Country of Origin : France
    • Width : 36.6 mm
    • Height : 36.6 mm
    • Weight : 0.058 kg
    • Operator Additional Information : with plain lens
    • Range Of Product : Harmony XB4
    • Mounting Diameter : 30.5 mm
    • Product Or Component Type : head for pilot light
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : orange
    • Head Type : built-in-flush
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Product Compatibility : universal LED
    • Device Short Name : ZB4F
