Head for pilot light, Harmony XAC, for incandescent bulb, plastic, yellow cap, 22mm

PILOT LIGHT

SQDZA2BV05 3389110648249
8.40 / EA
http://schema.org/OutOfStock
  • Color: Yellow
  • Net Weight: 0.015 kg
  • Operating Temperature: -25-55 °C
  • Standard: CSA C22.2 No 14, IEC 60947-5-1
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
QTY
  • Product Description
  • Specifications

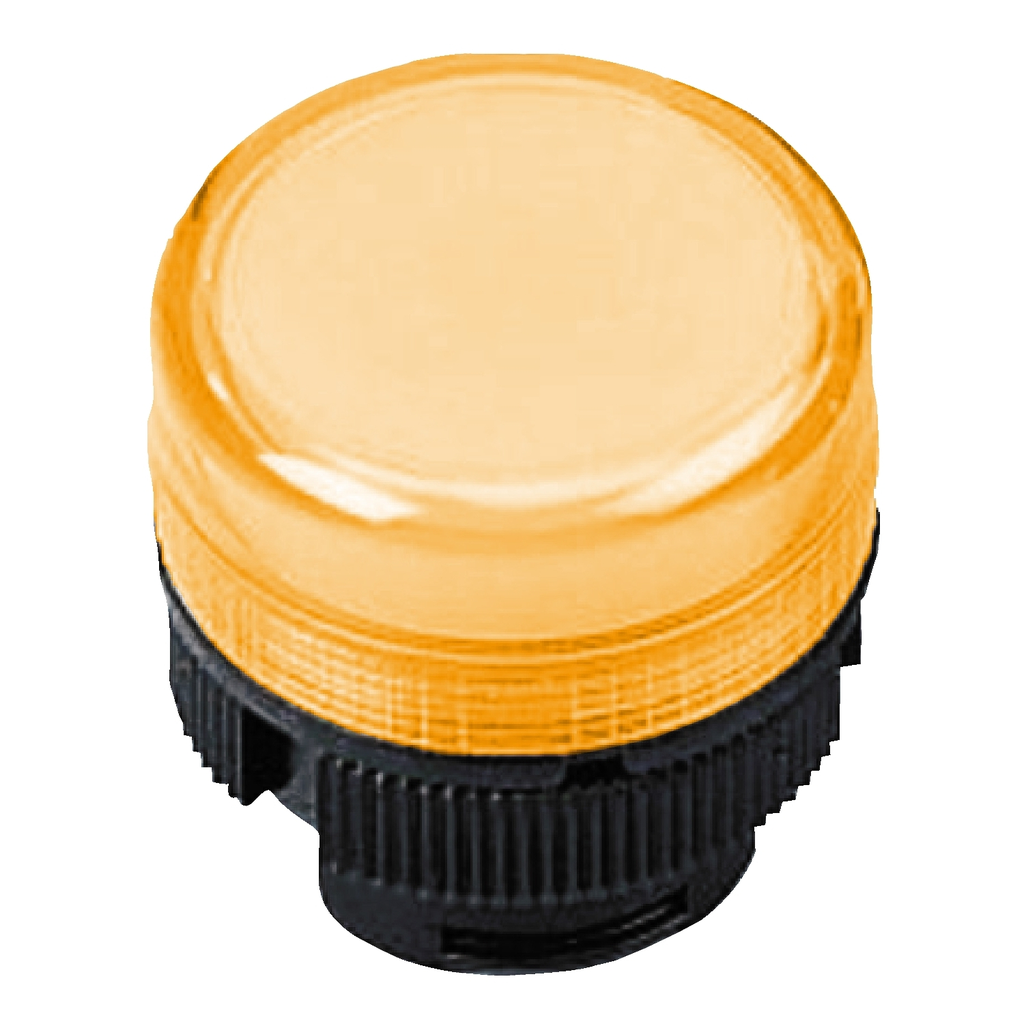

This Harmony ZA2BV05 is an amber pilot light. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
  • Environment
    • Ik Degree Of Protection : IK08 conforming to IEC 62262
    • Ambient Air Temperature For Operation : -25-55 °C
    • Standards : IEC 60947-5-1 || CSA C22.2 No 14
    • Shock Resistance : 100 gn IEC 60068-2-27
    • Vibration Resistance : 15 gn 10-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP65 conforming to IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 61140
    • Electrical Shock Protection Class : class II IEC 61140
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1710010EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Net Weight : 0.015 kg
    • Mechanical Durability : 1000000 cycles
    • Compatibility Code : ZA2B
  • Specifications
    • Range Of Product : Harmony
    • Product Or Component Type : head for pilot light
    • Cap/Operator Or Lens Colour : yellow
    • Product Specific Application : for incandescent bulb
