SQUARE D

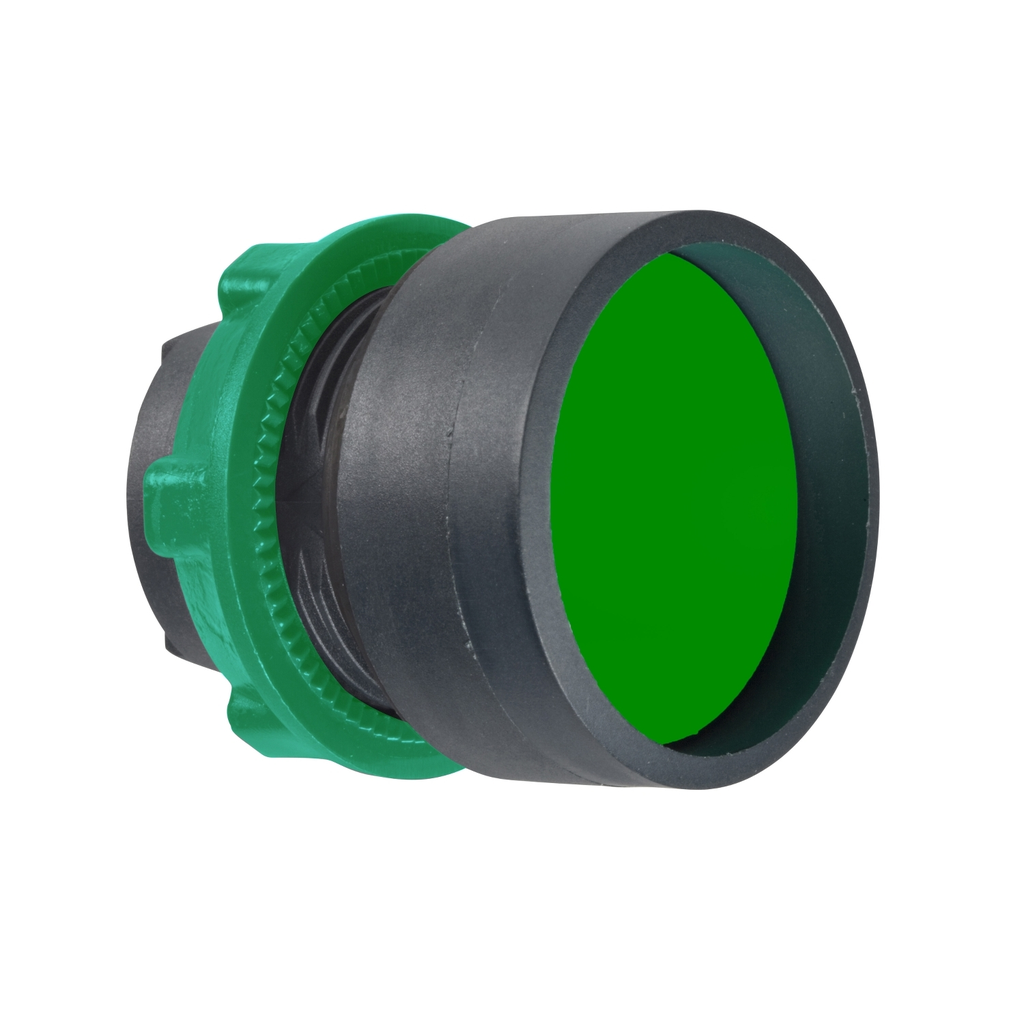

Head for non illuminated push button, Harmony XB5, green recessed, 22mm, spring return, unmarked

HEAD FOR NON ILLUMINATED PUSH

SQDZB5AA36 3389110291520
28.18 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for non illuminated push button, Harmony XB5, green recessed, 22mm, spring return, unmarked-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.02 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Environment
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Ik Degree Of Protection : IK03 IEC 50102
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ambient Air Temperature For Operation : -40-70 °C
    • Protective Treatment : TH
    • Standards : EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Overvoltage Category : class II IEC 60536
    • Ambient Air Temperature For Storage : -40-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Product Certifications : CSA || LROS (Lloyds register of shipping) || UL Listed || DNV || GL || BV
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Sustainable Offer Status : Green Premium product
    • China Rohs Regulation : X
    • Environmental Disclosure : ENVPEP1710010EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1710010EN
    • Rohs Exemption Information : Yes
  • Complementary
    • Net Weight : 0.02 kg
    • Cad Overall Height : 29 mm
    • Cad Overall Width : 29 mm
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Depth : 31 mm
    • Device Presentation : basic element
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
  • Specifications
    • Operator Additional Information : high guard
    • Bezel Material : dark grey plastic
    • Shape Of Signaling Unit Head : round
    • Range Of Product : Harmony XB5
    • Type Of Operator : spring return
    • Operator Profile : green recessed, unmarked
    • Sale Per Indivisible Quantity : 1
    • Product Or Component Type : head for non-illuminated push-button
    • Head Type : standard
    • Mounting Diameter : 22 mm
    • Device Short Name : ZB5
