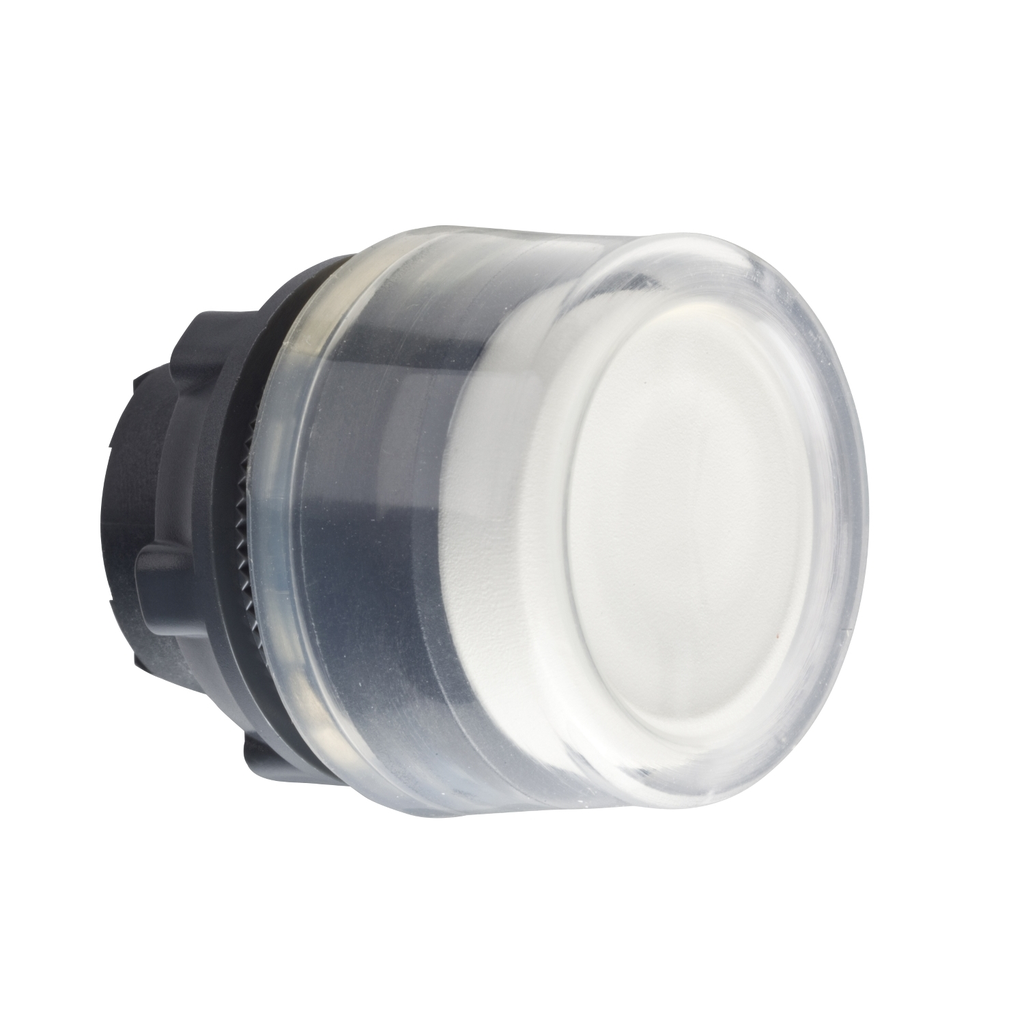

This white projecting button head with clear membrane silicone boot provides a simple solution to comply with hygiene requirement. This makes it ideal in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed and repl

• Overvoltage Category
• class II conforming to IEC 60536
• Electrical Composition Code
• C1 9 single front mounting
• C2 9 single and double front mounting
• C2 9 single and double front mou
• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0055369982
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.0379498082
• Standards
• CSA C22.2 No 14
• IEC 60947-5-1
• IEC 60947-1
• IEC 60947-5-4
• JIS C8201-5-1
• UL 508
• JIS C8201-1
• Station Name
• XALD 1...5 cut-outs
• XALK 2...5 cut-outs
• Ip Degree Of Protection
• IP66 IEC 60529
• IP67 IEC 60529
• IP69 IEC 60529
• IP69K ISO 20653
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.2 kg CO2 eq.
• 0.1563750959
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• Vibration Resistance
• 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Customizable
• no
• 1
• Carbon Footprint Of The Distribution Phase A4
• 0.0073330862
• 0 kg CO2 eq.
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Operator Profile
• white projecting, unmarked
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac
• Product Certifications
• CSA
• DNV
• BV
• LROS (Lloyds register of shipping)
• UL Listed

• Physical Attributes
• Cad Overall Depth : 35 mm
• Cad Overall Height : 30 mm
• Cad Overall Width : 30 mm
• Cap Operator Or Lens Color : white
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2024-02-06
• ETIM 10 : EC000221
• Manufacturing Carbon Footprint : 0.1563750959
• Distribution Carbon Footprint : 0.0073330862
• Installation Carbon Footprint : 0.0055369982
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 0.0379498082
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2303008EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Bezel Material : dark grey plastic
• Cap Operator Or Lens Color : white
• Compatibility Code : ZB5
• Device Short Name : ZB5
• Gcr Bridge : ZB5APCUST01
• Group Of Product : silicone boot push
• Head Type : standard
• Main Group : push-button
• Marking : unmarked
• Mechanical Durability : 10000000 cycles
• Mounting Diameter : 22 mm
• Operator Additional Information : clear boot
• Package Weight Lbs : 21.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : head for non-illuminated push-button
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
• Type Of Operator : spring return
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.2071949885
• Relationshiptype : Compatible relationship
• Accessories : ZB5AZ905
• General Attributes
• Product Or Component Type : head for non-illuminated push-button
• Range Of Product : Harmony XB5
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=655218&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 0.2071949885
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2303008EN
• Environmental Disclosure : ENVPEP2303008EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : not compatible with legend holder
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Overview Attributes
• Device Presentation : basic element
