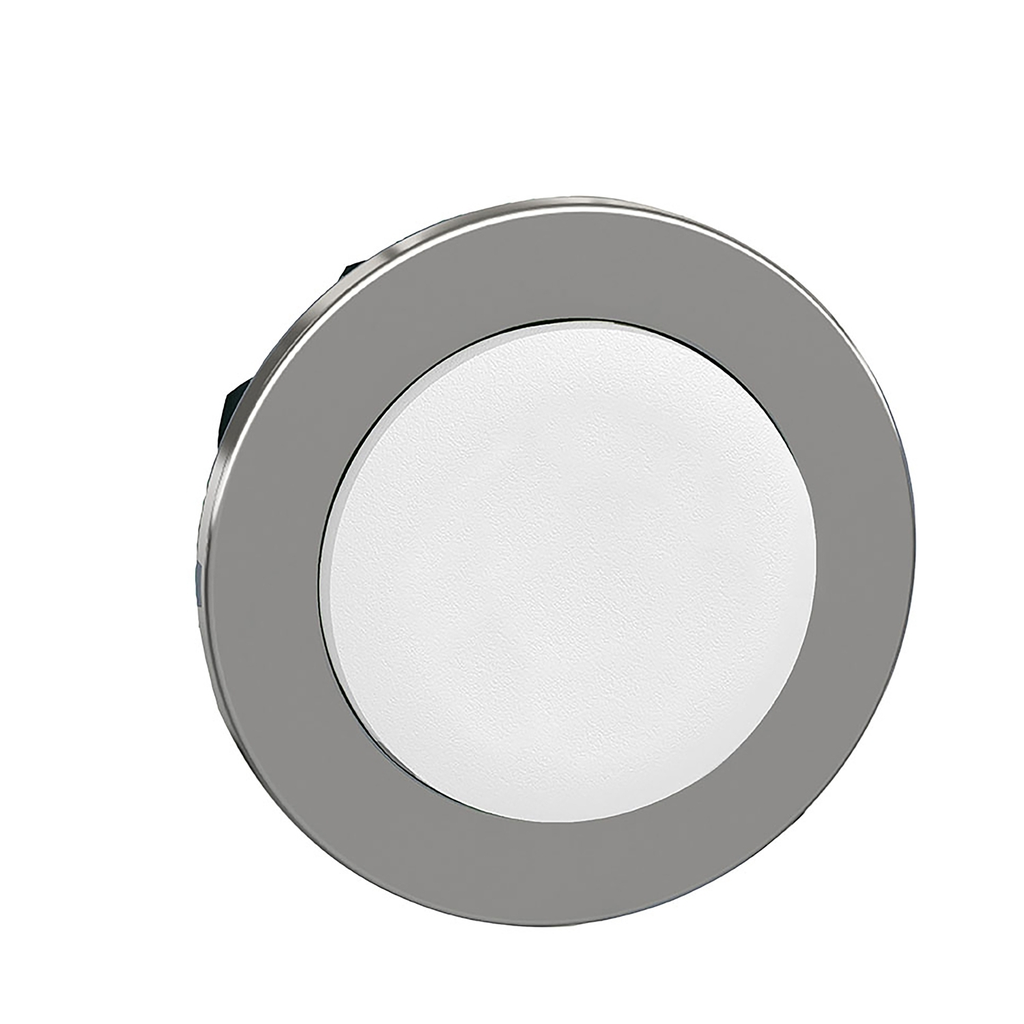

This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Features
• Chromium plated metal bezel
• Wide range of operating temperature from -40°C to 70°C
• Class I conforming to IEC 60536
• Shock protection level up to IK06 rating
• High vibration resistance with shake proof terminal screws

• Physical Attributes
• Cad Overall Depth : 33 mm
• Cad Overall Height : 36.6 mm
• Cad Overall Width : 36.6 mm
• Cap Operator Or Lens Color : white
• Conformance Attributes
• Product Certifications : UL Listed, CSA, CCC, EAC
• Standards : CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, UL 508, IEC 60947-1, JIS C8201-5-1, CE, JIS C8201-1
• Important Information Attributes
• Customizable : 1, no
• Electrical Composition Code : C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
• Vibration Resistance : 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
• Carbon Footprint Of The Distribution Phase A4 : 0.0078462633, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.0758932384
• Carbon Footprint Of The Installation Phase A5 : 0.0120341637, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.4 kg CO2 eq., 0.4252811388
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308035EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Bezel Material : chromium plated metal
• Cap Operator Or Lens Color : white
• Compatibility Code : ZB4
• Device Short Name : ZB4F
• GCR Bridge : ZB4FLCUST01
• Group Of Product : projecting push non illum
• Head Type : built-in-flush
• Main Group : push-button
• Marking : unmarked
• Mechanical Durability : 10000000 cycles
• Mounting Diameter : 30.5 mm
• Operator Profile : white projecting, unmarked
• Overvoltage Category : class I conforming to IEC 60536
• Package Weight Lbs : 60.0 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : head for non-illuminated push-button
• Protective Treatment : TH
• Range Of Product : Harmony XB4
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.5 kg CO2 eq.
• Type Of Operator : spring return

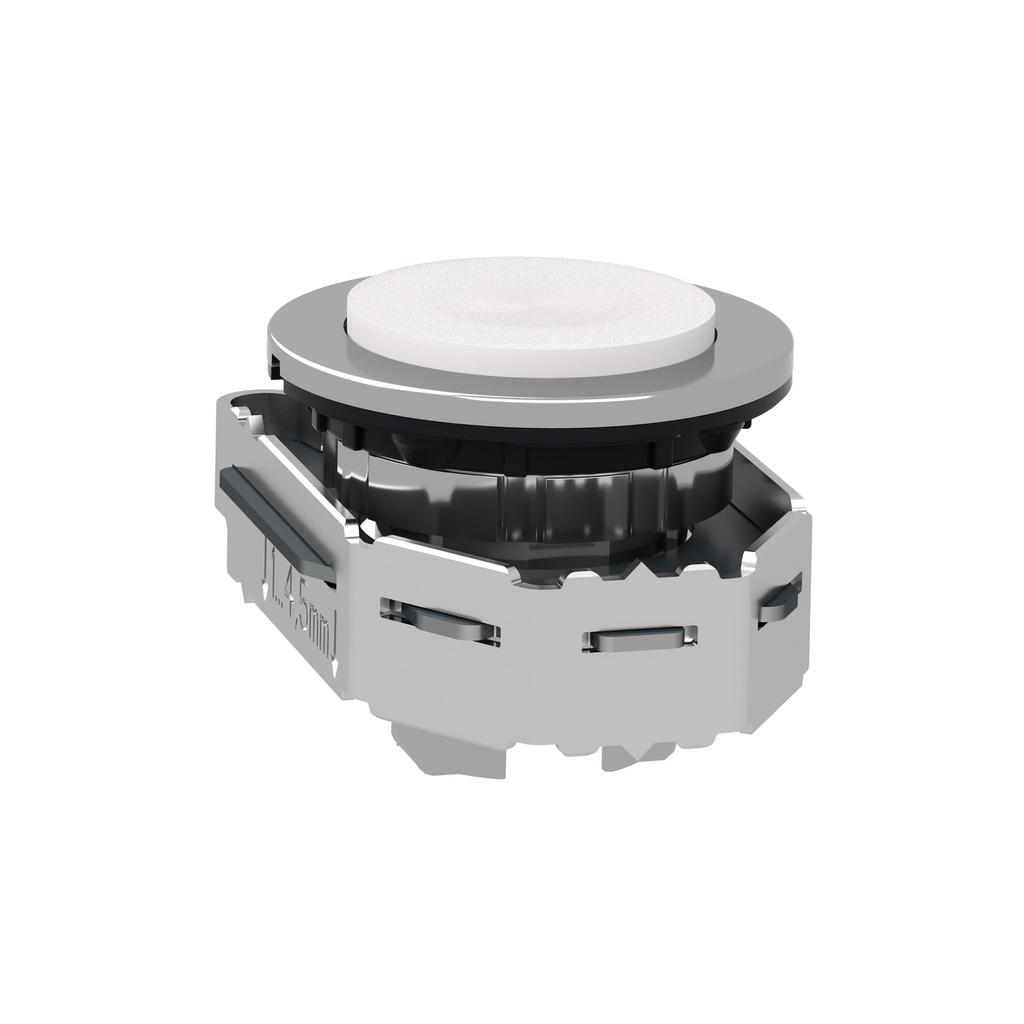

• Medium Desc : Head for non illuminated push button, Harmony XB4, flush mounted white projecting pushbutton
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2308035EN
• Database Version : 2022-01
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.5210548043
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2308035EN
• Environmental Disclosure : ENVPEP2308035EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308035EN
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : head for non-illuminated push-button
• Range Of Product : Harmony XB4
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : basic element
