Head for non illuminated push button, Harmony XB4, flush mounted blue pushbutton recessed

Head for non illuminated push

SQDZB4FA66 ZB4FA66 3606489581169
33.03 / EA
http://schema.org/OutOfStock

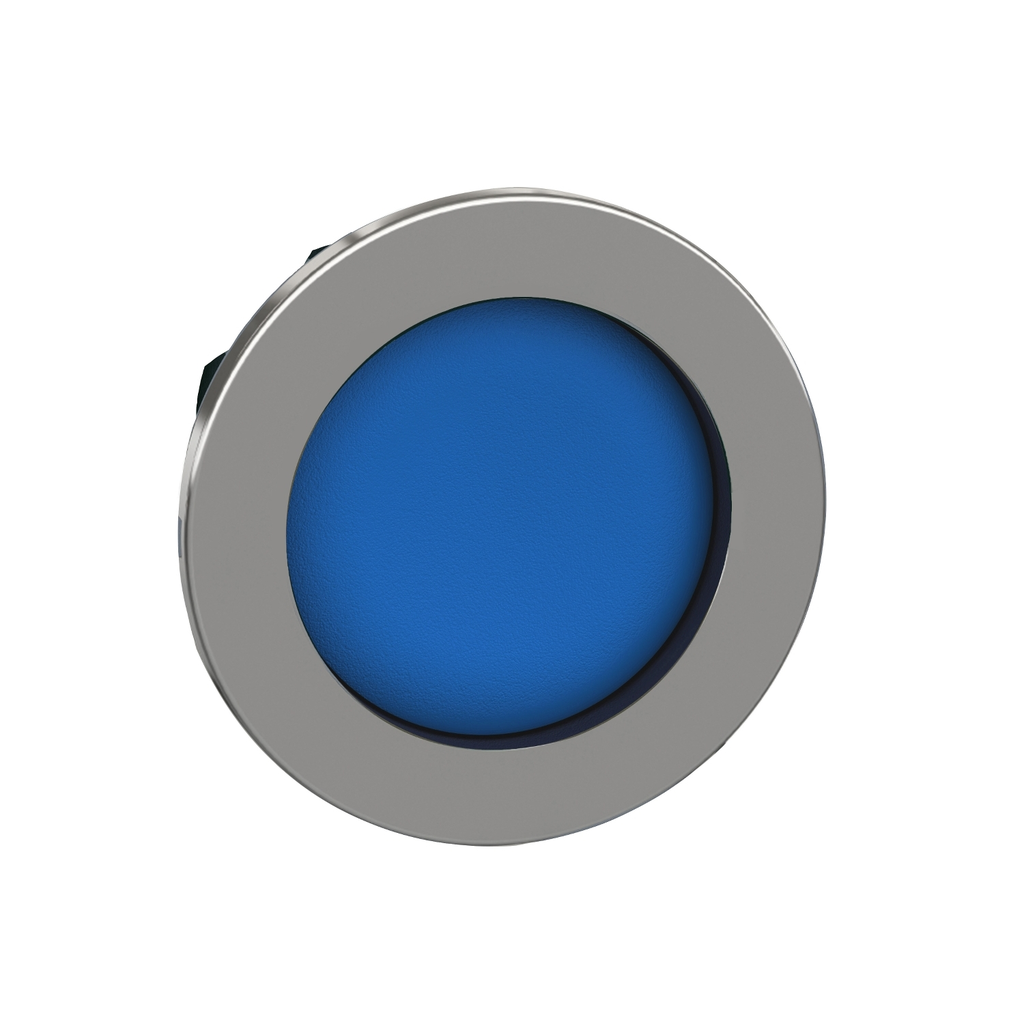

Mayer-DDS-Head for non illuminated push button, Harmony XB4, flush mounted blue pushbutton recessed-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: CCC, CSA, EAC, UL Listed
  • Standard: CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Environment
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Ik Degree Of Protection : IK06 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class I IEC 60536
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Protective Treatment : TH
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1808008EN
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
  • Complementary
    • Mechanical Durability : 10000000 cycles
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
    • Cad Overall Width : 36.6 mm
    • Cad Overall Depth : 31 mm
    • Cad Overall Height : 36.6 mm
    • Device Presentation : basic element
  • Specifications
    • Sale Per Indivisible Quantity : 1
    • Range Of Product : Harmony XB4
    • Bezel Material : chromium plated metal
    • Operator Profile : blue recessed, unmarked
    • Mounting Diameter : 30.5 mm
    • Type Of Operator : spring return
    • Product Or Component Type : head for non-illuminated push-button
    • Shape Of Signaling Unit Head : round
    • Device Short Name : ZB4F
    • Head Type : built-in-flush
