Head for illuminated push button, Harmony XB4, metal, black flush, 30mm, spring return, white marked STOP

Head for non illuminated push

SQDZB4FL234 3606489582425
16.55 / EA
http://schema.org/OutOfStock

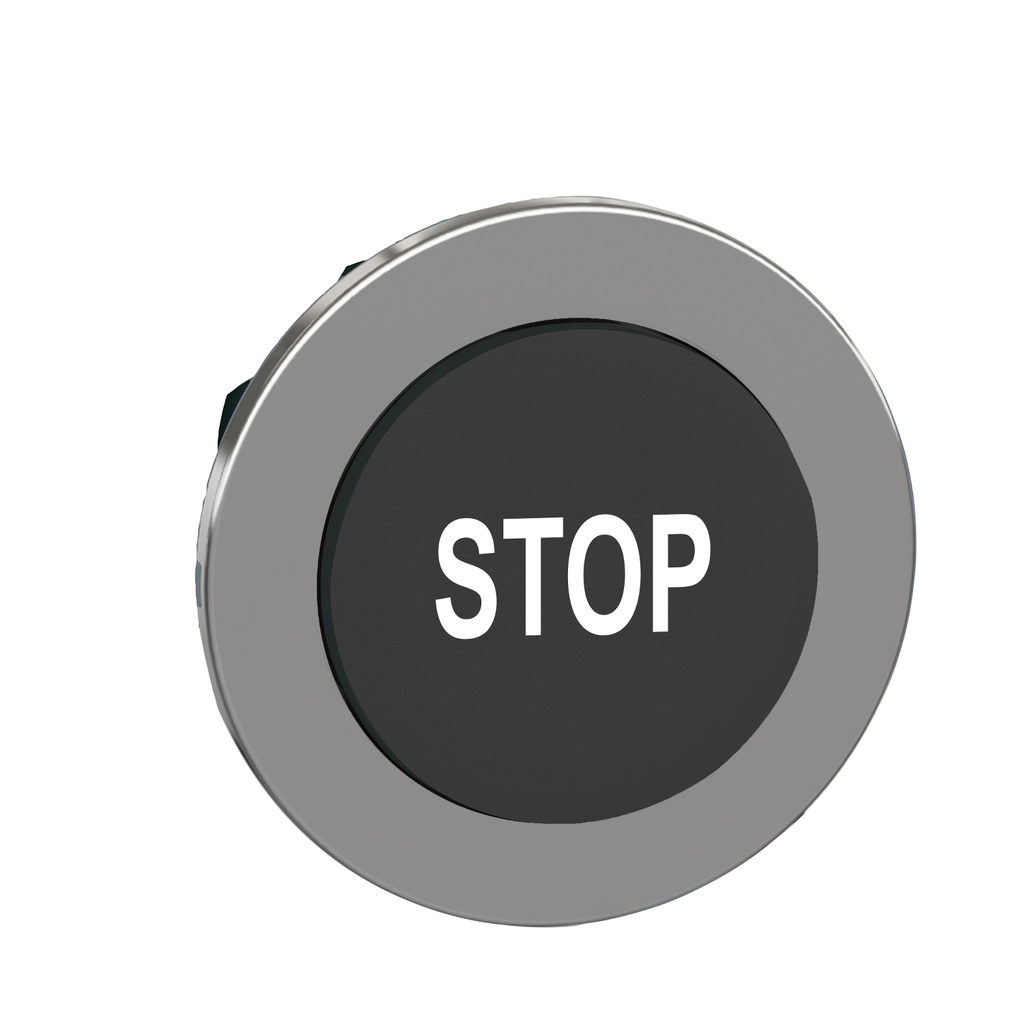

Mayer-DDS-Head for illuminated push button, Harmony XB4, metal, black flush, 30mm, spring return, white marked STOP-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: CCC, CSA, EAC, UL Listed
  • IsSustainable: No
  • Standard: CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Environment
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Protective Treatment : TH
    • Ambient Air Temperature For Operation : -40-70 °C
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Overvoltage Category : class I IEC 60536
    • Ik Degree Of Protection : IK06 IEC 50102
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
    • Ambient Air Temperature For Storage : -40-70 °C
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Toxic Heavy Metal Free : Yes
    • Reach Free Of Svhc : Yes
    • Rohs Exemption Information : Yes
    • Circularity Profile : ENVEOLI1808008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • China Rohs Regulation : X
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Sustainable Offer Status : Green Premium product
  • Complementary
    • Device Presentation : basic element
    • Cad Overall Depth : 33 mm
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
    • Cad Overall Height : 36.6 mm
    • Cad Overall Width : 36.6 mm
    • Mechanical Durability : 10000000 cycles
  • Specifications
    • Range Of Product : Harmony XB4
    • Sale Per Indivisible Quantity : 1
    • Head Type : built-in-flush
    • Operator Profile : black projecting, STOP white)
    • Device Short Name : ZB4F
    • Shape Of Signaling Unit Head : round
    • Mounting Diameter : 30.5 mm
    • Bezel Material : chromium plated metal
    • Type Of Operator : spring return
    • Product Or Component Type : head for non-illuminated push-button
