Head for non illuminated push button, Harmony XB4, flush mounted black flush caps pushbutton push

Head for non illuminated push

SQDZB4FH02 3606489581572
14.66 / EA
http://schema.org/OutOfStock

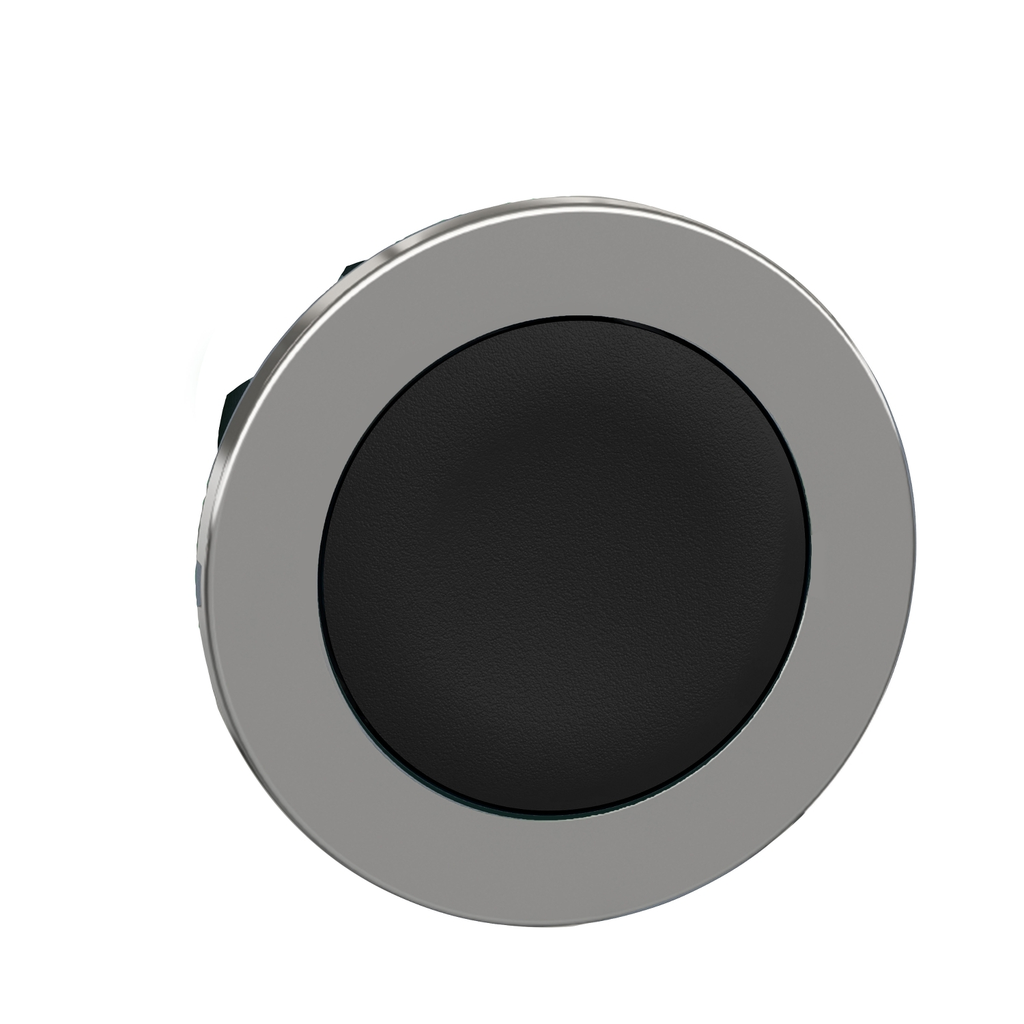

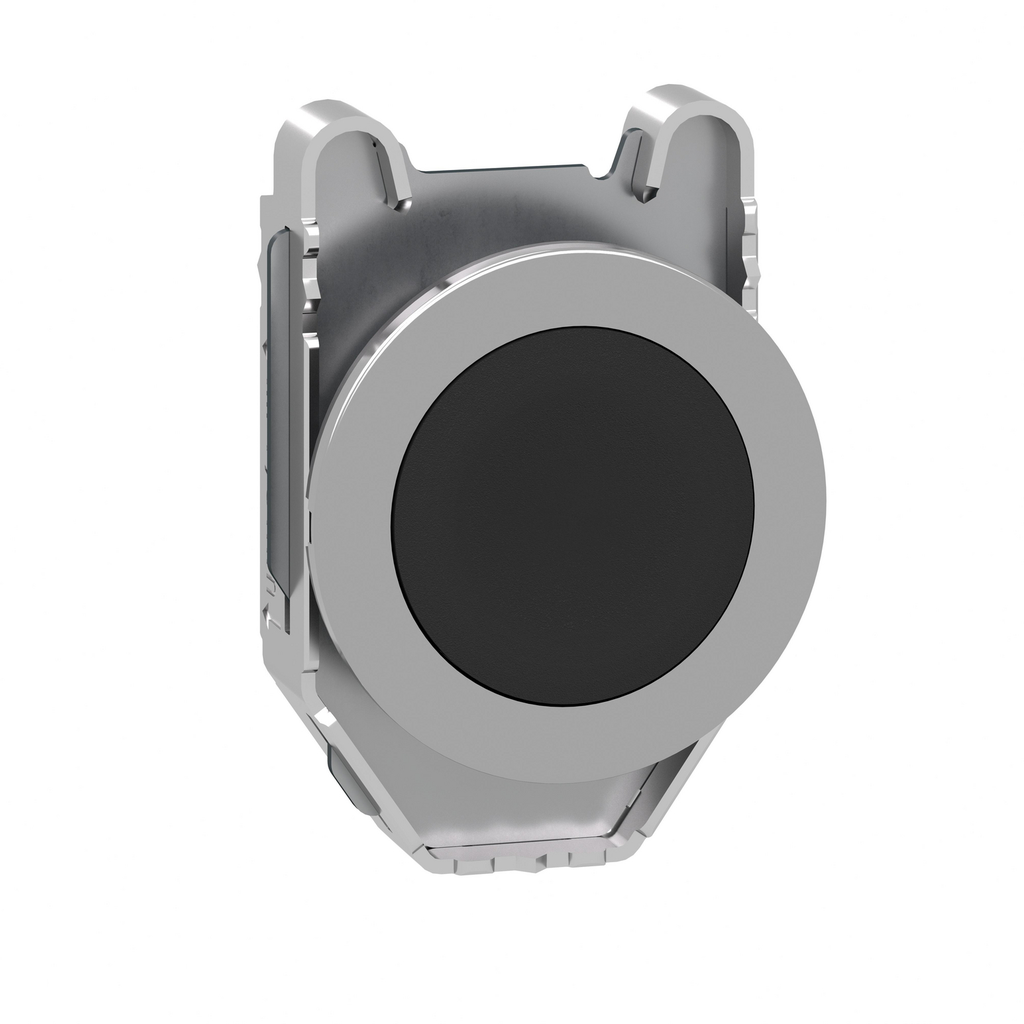

Mayer-DDS-Head for non illuminated push button, Harmony XB4, flush mounted black flush caps pushbutton push-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: CCC, CSA, EAC, UL Listed
  • IsSustainable: No
  • Standard: CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Environment
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Overvoltage Category : class I IEC 60536
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Ik Degree Of Protection : IK06 IEC 50102
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
    • Protective Treatment : TH
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ambient Air Temperature For Operation : -40-70 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Free Of Svhc : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Circularity Profile : ENVEOLI1808008EN
    • Sustainable Offer Status : Green Premium product
  • Complementary
    • Cad Overall Depth : 31 mm
    • Cad Overall Height : 36.6 mm
    • Cad Overall Width : 36.6 mm
    • Device Presentation : basic element
    • Mechanical Durability : 500000 cycles
    • Electrical Composition Code : C11 3 single front mounting || C15 1 single front mounting || C9 3 single front mounting
  • Specifications
    • Type Of Operator : push-push
    • Device Short Name : ZB4F
    • Head Type : built-in-flush
    • Bezel Material : chromium plated metal
    • Mounting Diameter : 30.5 mm
    • Range Of Product : Harmony XB4
    • Product Or Component Type : head for non-illuminated push-button
    • Shape Of Signaling Unit Head : round
    • Sale Per Indivisible Quantity : 1
    • Operator Profile : black flush, unmarked
