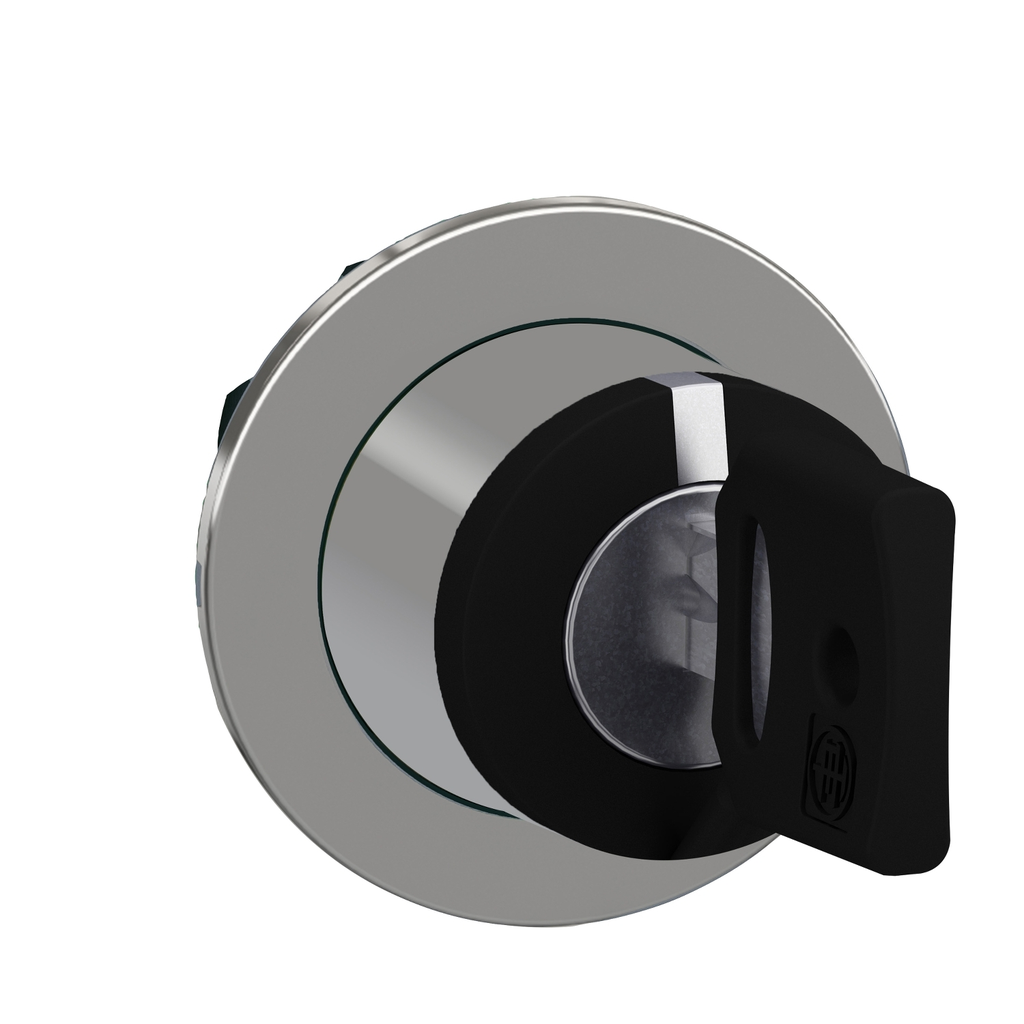

Head for key selector switch, Harmony XB4, flush mounted 455 3, position stay put

Head for key selector switch,

SQDZB4FG5 3606489581497
73.96 / EA
http://schema.org/OutOfStock

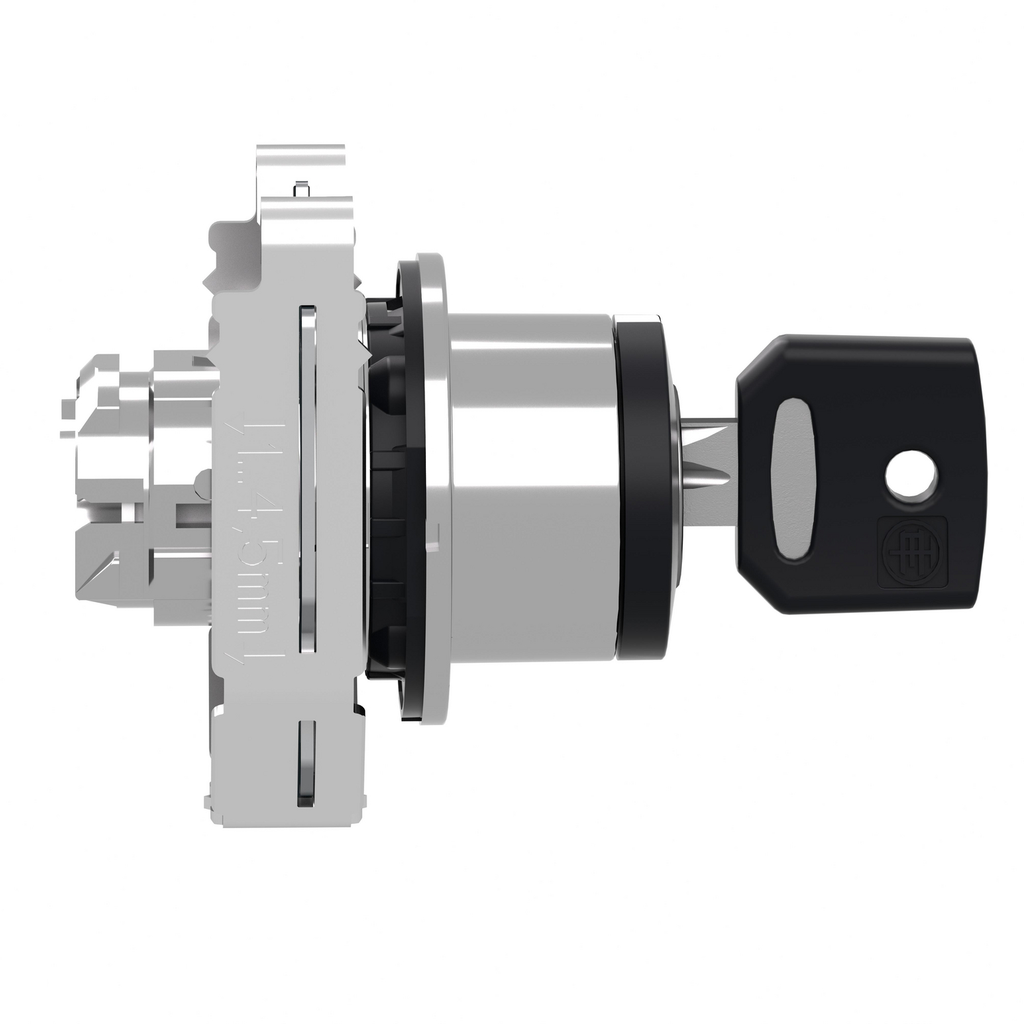

Mayer-DDS-Head for key selector switch, Harmony XB4, flush mounted 455 3, position stay put-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: CCC, CSA, EAC, UL Listed
  • IsSustainable: No
  • Net Weight: 0.133 kg
  • Standard: CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Environment
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
    • Overvoltage Category : class I IEC 60536
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Ambient Air Temperature For Storage : -40-70 °C
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Operation : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Protective Treatment : TH
    • Ik Degree Of Protection : IK06
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Environmental Disclosure : ENVPEP1808008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • Rohs Exemption Information : Yes
    • Sustainable Offer Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1808008EN
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Complementary
    • Mechanical Durability : 1000000 cycles
    • Device Presentation : basic element
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
    • Cad Overall Height : 36.6 mm
    • Net Weight : 0.133 kg
    • Cad Overall Depth : 49 mm
    • Cad Overall Width : 36.6 mm
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
  • Specifications
    • Bezel Material : chromium plated metal
    • Shape Of Signaling Unit Head : round
    • Mounting Diameter : 30.5 mm
    • Key Withdrawal Position : left and right
    • Range Of Product : Harmony XB4
    • Head Type : built-in-flush
    • Product Or Component Type : head for key selector switch
    • Sale Per Indivisible Quantity : 1
    • Operator Profile : black key switch
    • Device Short Name : ZB4F
    • Type Of Operator : stay put
    • Operator Position Information : 3 positions +/- 45°
    • Type Of Keylock : key 455
