SQUARE D

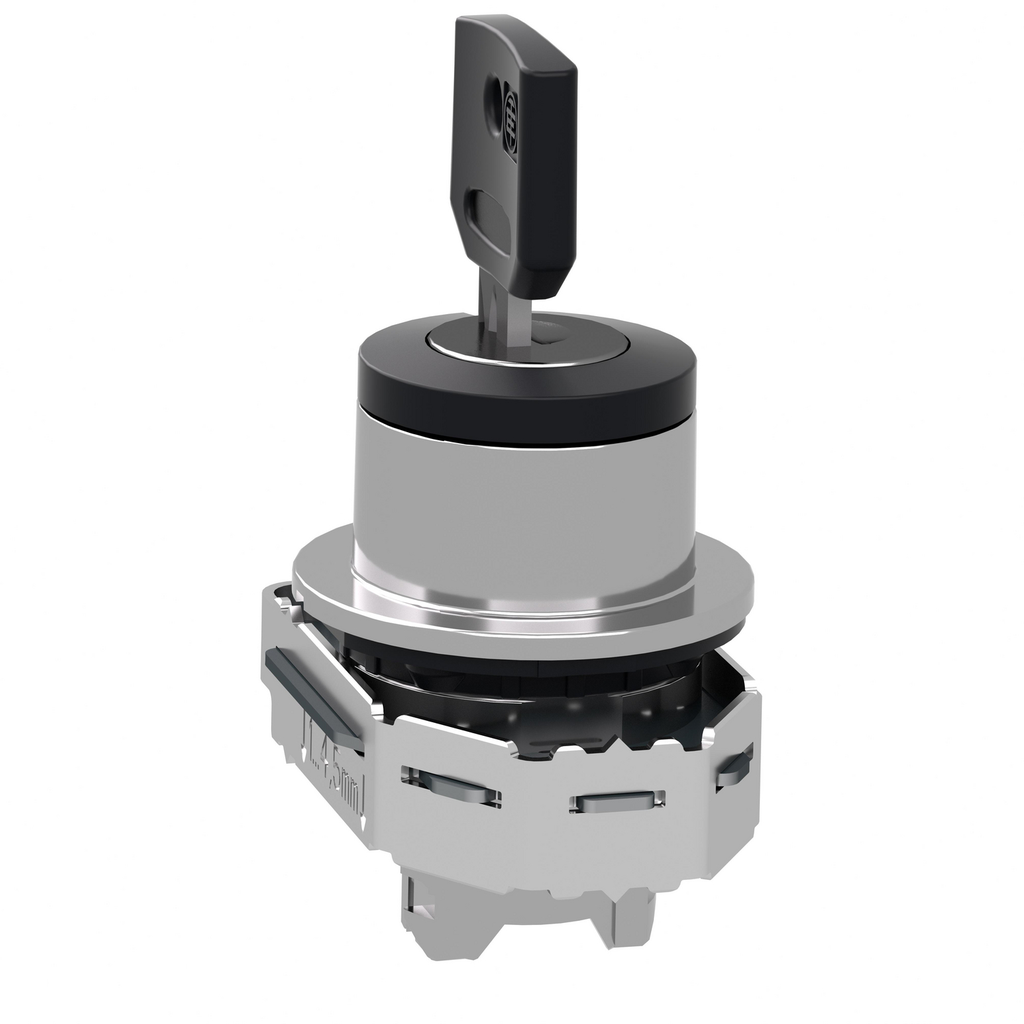

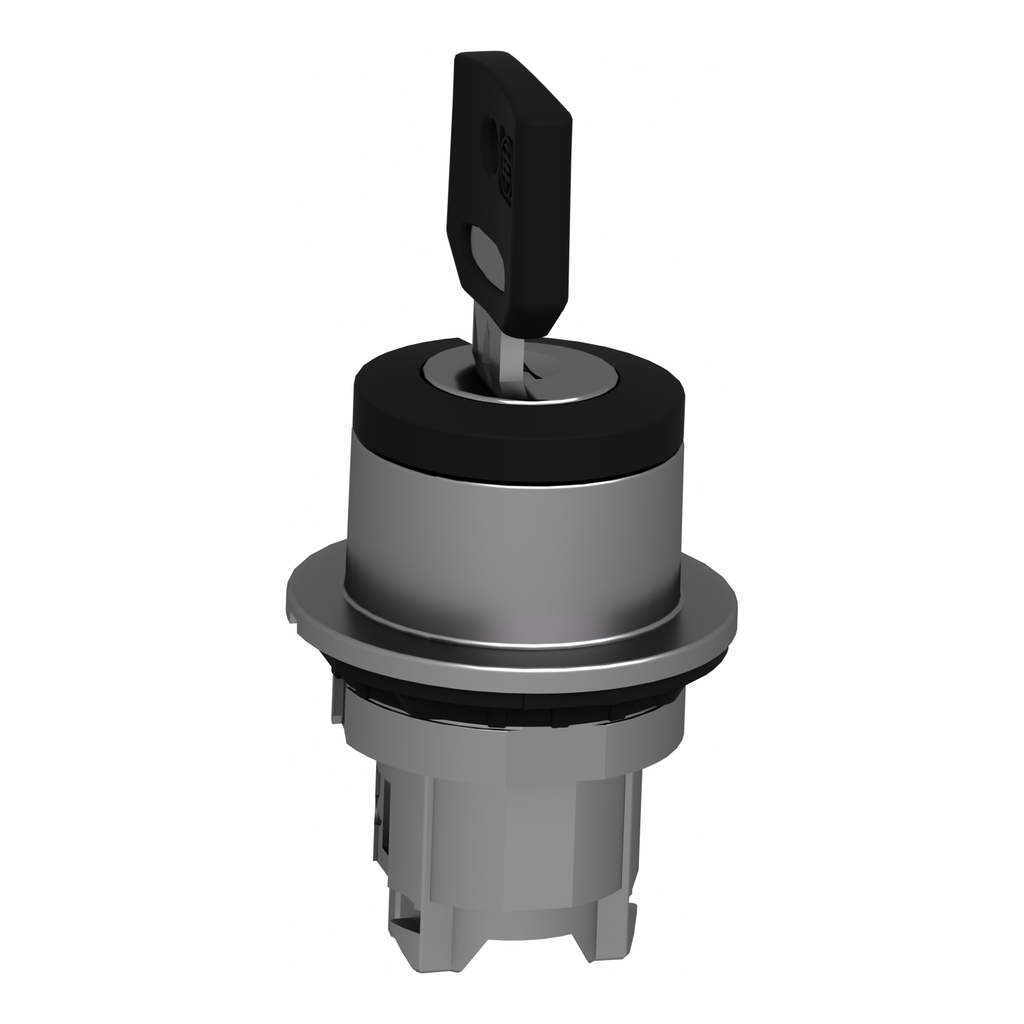

Head for key selector switch, Harmony XB4, flush mounted, 455, 3 positions, stay put

Head for key selector switch,

SQDZB4FG0 ZB4FG0 3606489581374
84.51 / EA
http://schema.org/OutOfStock
  • Bezel Material: Chromium Plated Metal
  • Country of Origin: France
  • Head Type: Built-in-flush
  • Height: 36.6 mm
  • Net Weight: 0.133 kg
  • Warranty Length: 18 mth
  • Weight: 0.133 kg
  • Width: 36.6 mm
This 30.5 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Features
  • Specifications
This 30.5 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 || 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class I conforming to IEC 60536
    • Ik Degree Of Protection : IK06
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : f28cb399-1b6a-409d-ac7b-4169e47b25c8
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.9782309402
  • Complementary
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
    • Net Weight : 0.133 kg
    • Cad Overall Height : 36.6 mm
    • Device Presentation : basic element
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Mechanical Durability : 1000000 cycles
    • Cad Overall Width : 36.6 mm
    • Cad Overall Depth : 49 mm
  • Specifications
    • Country of Origin : France
    • Width : 36.6 mm
    • Height : 36.6 mm
    • Weight : 0.133 kg
    • Range Of Product : Harmony XB4
    • Mounting Diameter : 30.5 mm
    • Product Or Component Type : head for key selector switch
    • Shape Of Signaling Unit Head : round
    • Head Type : built-in-flush
    • Key Withdrawal Position : in any position
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Operator Profile : black key switch
    • Operator Position Information : 3 positions +/- 45°
    • Type Of Operator : stay put
    • Device Short Name : ZB4F
    • Type Of Keylock : key 455
