SQUARE D

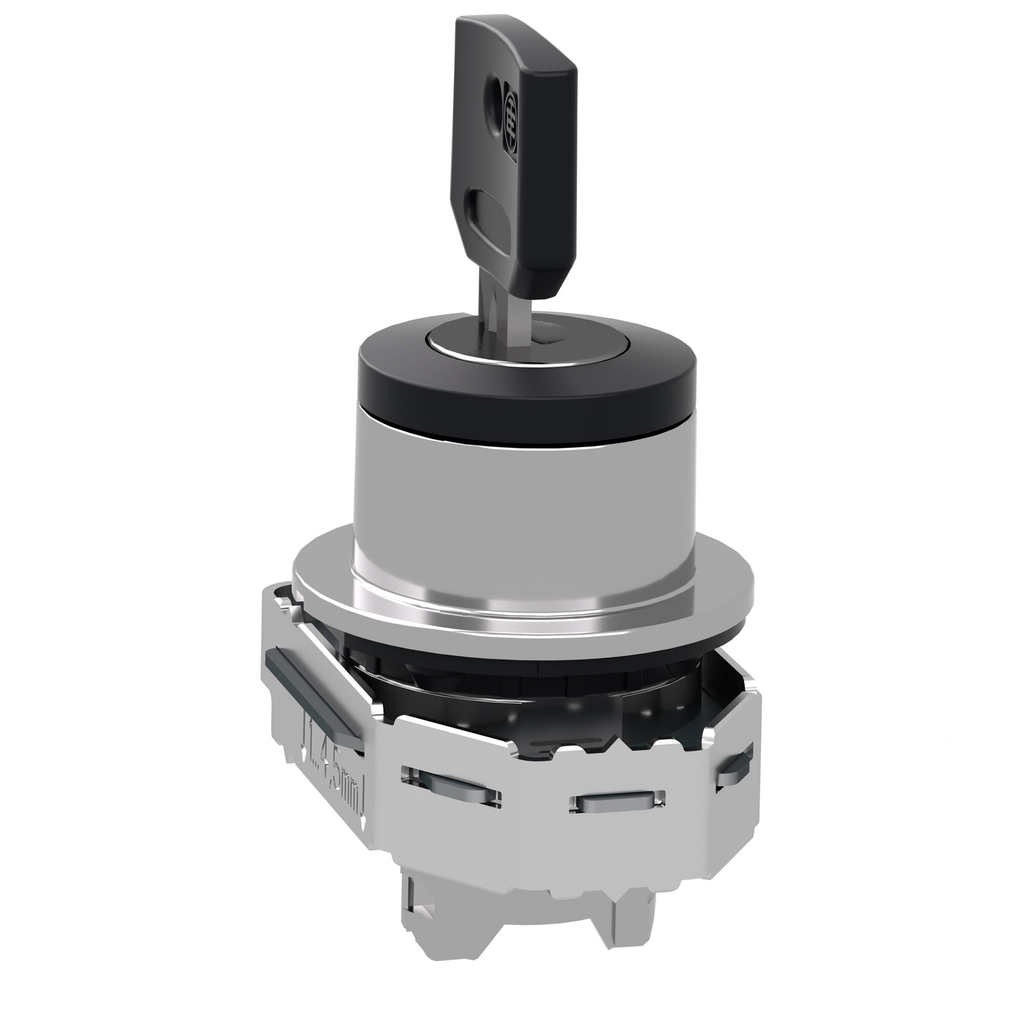

Head for key selector switch, Harmony XB4, flush mounted 455 3, position return right to center

Head for key selector switch,

SQDZB4FG05 3606489581428
95.25 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for key selector switch, Harmony XB4, flush mounted 455 3, position return right to center-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: CCC, CSA, EAC, UL Listed
  • IsSustainable: No
  • Net Weight: 0.133 kg
  • Standard: CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Environment
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Ambient Air Temperature For Operation : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Ik Degree Of Protection : IK06
    • Ambient Air Temperature For Storage : -40-70 °C
    • Protective Treatment : TH
    • Overvoltage Category : class I IEC 60536
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Sustainable Offer Status : Green Premium product
    • Environmental Disclosure : ENVPEP1808008EN
    • Circularity Profile : ENVEOLI1808008EN
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Complementary
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
    • Cad Overall Height : 36.6 mm
    • Mechanical Durability : 1000000 cycles
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cad Overall Width : 36.6 mm
    • Cad Overall Depth : 49 mm
    • Net Weight : 0.133 kg
    • Device Presentation : basic element
  • Specifications
    • Sale Per Indivisible Quantity : 1
    • Operator Position Information : 3 positions +/- 45°
    • Shape Of Signaling Unit Head : round
    • Return : right to centre
    • Bezel Material : chromium plated metal
    • Mounting Diameter : 30.5 mm
    • Head Type : built-in-flush
    • Product Or Component Type : head for key selector switch
    • Operator Profile : black key switch
    • Device Short Name : ZB4F
    • Key Withdrawal Position : left and center
    • Type Of Operator : spring return
    • Range Of Product : Harmony XB4
    • Type Of Keylock : key 455
