SQUARE D

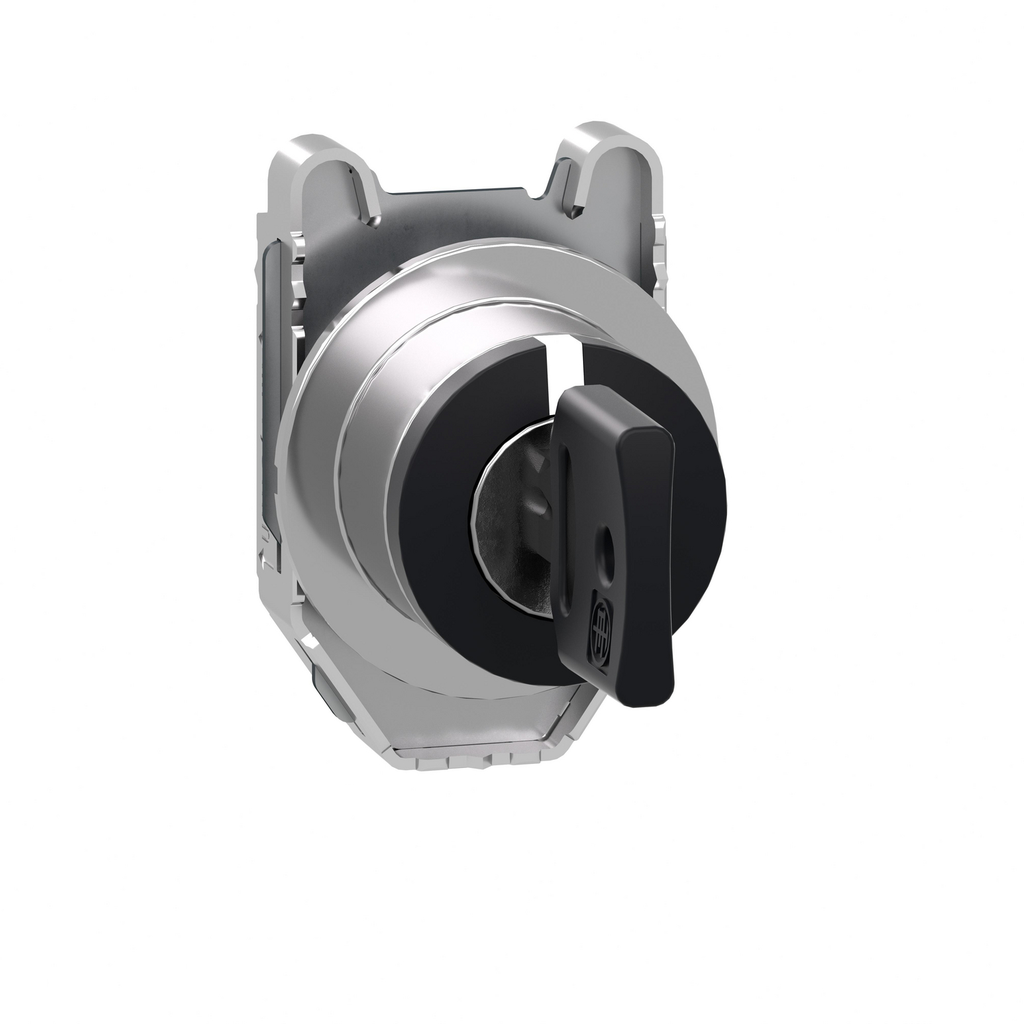

Head for key selector switch, Harmony XB4, black key, flush, 30mm, 3 positions, center key withdrawal, key 455

Head for key selector switch,

SQDZB4FG7 3606489581510
95.25 / EA
http://schema.org/OutOfStock
  • Bezel Material: Chromium Plated Metal
  • Certifications: CCC, CSA, EAC, UL Listed
  • Net Weight: 0.133 kg
  • Standard: CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Environment
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class I IEC 60536
    • Ik Degree Of Protection : IK06
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1808008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
    • Net Weight : 0.133 kg
    • Cad Overall Height : 36.6 mm
    • Device Presentation : basic element
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Mechanical Durability : 1000000 cycles
    • Cad Overall Width : 36.6 mm
    • Cad Overall Depth : 49 mm
  • Specifications
    • Range Of Product : Harmony XB4
    • Mounting Diameter : 30.5 mm
    • Product Or Component Type : head for key selector switch
    • Shape Of Signaling Unit Head : round
    • Head Type : built-in-flush
    • Key Withdrawal Position : center
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Operator Profile : black key switch
    • Operator Position Information : 3 positions +/- 45°
    • Type Of Operator : spring return
    • Return : to centre
    • Device Short Name : ZB4F
    • Type Of Keylock : key 455
