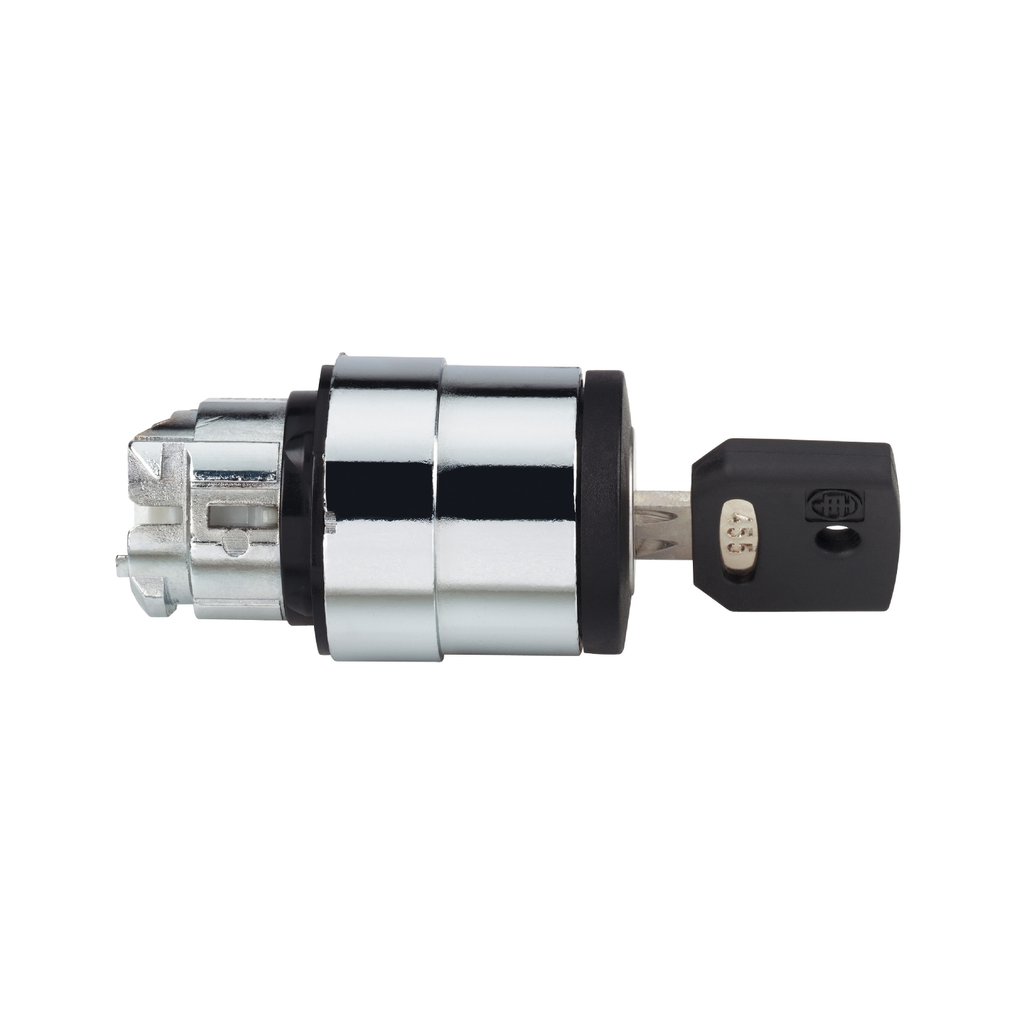

Head for key selector switch, Harmony XB4, black key, 22mm, 2 positions, left key withdrawal, key 2132E

HEAD FOR KEY SELECTOR SWITCH,

SQDZB4BG2K2132E ZB4BG2K2132E 785901637141
86.28 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for key selector switch, Harmony XB4, black key, 22mm, 2 positions, left key withdrawal, key 2132E-1
  • Bezel Material: Chromium Plated Metal
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cad Overall Depth : 72 mm
    • Cad Overall Height : 29 mm
    • Cad Overall Width : 29 mm
  • Important Information Attributes
    • Electrical Composition Code : C3 6 single front mounting, C3 6 single front mounting, C3 6 single front mounting, C3 6 single front mounting, C4 6 single and double front mounting, C4 6 single and double front mounting, C4 6 single and double front mounting, C4 6 single and double front mounting, C5 5 single front mounting, C5 5 single front mounting, C5 5 single front mounting, C5 5 single front mounting, C6 5 single and double front mounting, C6 5 single and double front mounting, C6 5 single and double front mounting, C6 5 single and double front mounting, C7 4 single front mounting, C7 4 single front mounting, C7 4 single front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C8 4 single and double front mounting, C8 4 single and double front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C11 3 single front mounting, C11 3 single front mounting, C11 3 single front mounting, C15 1 single front mounting, C15 1 single front mounting, C15 1 single front mounting, C15 1 single front mounting
    • Operator Profile : black key switch, black key switch
    • Overvoltage Category : class I conforming to IEC 60536, class I conforming to IEC 60536
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Carbon Footprint Of The Distribution Phase A4 : 0.012815438596491228, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.242
    • Carbon Footprint Of The Installation Phase A5 : 0.012320701754385963, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.6 kg CO2 eq., 0.644638596491228
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-25
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308006EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : chromium plated metal
    • Compatibility Code : ZB4
    • Device Short Name : ZB4
    • Key Withdrawal Position : left
    • Mounting Diameter : 22 mm
    • Operator Position Information : 2 positions 90°
    • Package Weight Lbs : 104.326 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : head for key selector switch
    • Range Of Product : Harmony XB4
    • Returnability : Yes
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 0.9 kg CO2 eq.
    • Type Of Keylock : key 2132E
    • Pep Code : ENVPEP2308006EN
    • Pep Verification Date : 2024-06-09
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Key selector switch has 2 positions which operates with a stay-put mechanism with key withdrawal on the left position and it has metal bezel. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. Product has power consumption of 0.002 W with use rate of 72% for a period of 10 years and adhering to international standard IEC 60947-5-1.
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP69K IEC 60529, IP69K IEC 60529
    • Nema Degree Of Protection : NEMA 13, NEMA 4X
    • Product Compatibility : 4 multi-chip, 4 multi-chip
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 0.9117747368421052
    • Circularity Profile : ENVEOLI2308006EN
    • Environmental Disclosure : ENVPEP2308006EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP2308006EN
    • Pep Verification Date : 2024-06-09
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : head for key selector switch
    • Range Of Product : Harmony XB4
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : basic element
