Head for key selector switch, Harmony XB4, black key, 22mm, 2 positions, left key withdrawal, 1242A

HEAD FOR KEY SELECTOR SWITCH,

SQDZB4BG2K1242A ZB4BG2K1242A 3606480711916
96.68 / EA
http://schema.org/OutOfStock

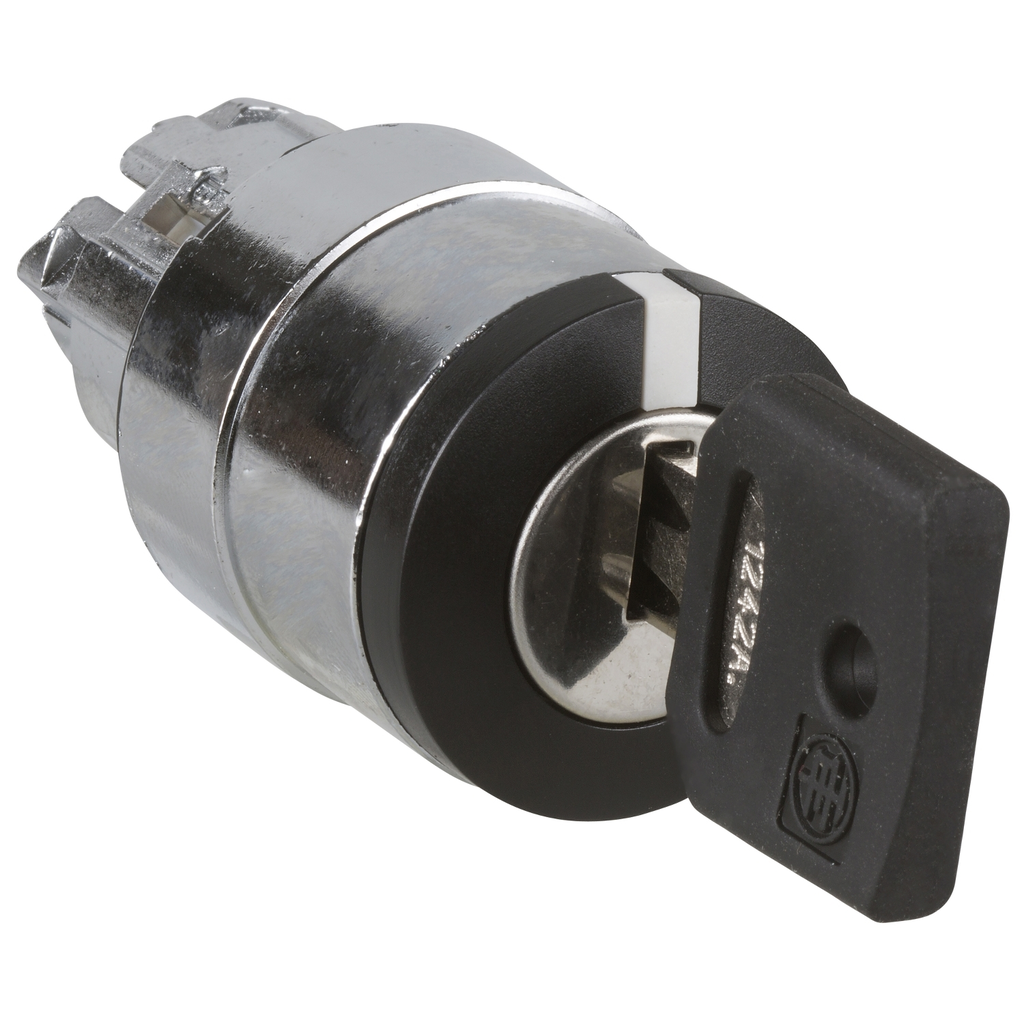

Mayer-DDS-Head for key selector switch, Harmony XB4, black key, 22mm, 2 positions, left key withdrawal, 1242A-1
  • Country of Origin: France
  • Head Type: Standard
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Customizable : 0, no
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Carbon Footprint Of The Distribution Phase A4 : 0.012815438596491228, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.242
    • Carbon Footprint Of The Installation Phase A5 : 0.012320701754385963, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.6 kg CO2 eq., 0.644638596491228
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 2
    • End Of Life Carbon Footprint : 0.242
    • Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308006EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 7
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Compatibility Code : ZB4
    • Device Short Name : ZB4
    • Group Of Product : key switch
    • Head Type : standard
    • Main Group : selector switch
    • Mechanical Durability : 1000000 cycles
    • Mounting Diameter : 22 mm
    • Operator Position Information : 2 positions 90°
    • Operator Profile : key switch
    • Overvoltage Category : class I conforming to IEC 60536
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for key selector switch
    • Protective Treatment : TH
    • Range Of Product : Harmony XB4
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 0.9 kg CO2 eq.
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Warranty In Months : 18
    • Pep Code : ENVPEP2308006EN
    • Database Version : 2022-01
    • Pep Verification Date : 2024-06-09
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : Key selector switch has 2 positions which operates with a stay-put mechanism with key withdrawal on the left position and it has metal bezel. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. Product has power consumption of 0.002 W with use rate of 72% for a period of 10 years and adhering to international standard IEC 60947-5-1.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y2 : 10
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27
    • Offer Owner Code : 190786
    • Pn : 1
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 2 : 0.242
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 2 : 0.242
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 2 : 0.0104
  • Environment Attributes Main
    • Ip Degree Of Protection : IP66 IEC 60529, IP67, IP69, IP69K
    • Nema Degree Of Protection : UL type 13, NEMA 13
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 0.9117747368421052
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2308006EN
    • Environmental Disclosure : ENVPEP2308006EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2308006EN
    • Pep Verification Date : 2024-06-09
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : head for key selector switch
    • Range Of Product : Harmony XB4
  • ETIM
    • ETIM 8 : EC000222
    • ETIM 9 : EC000222
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
  • Overview Attributes
    • Device Presentation : basic element
