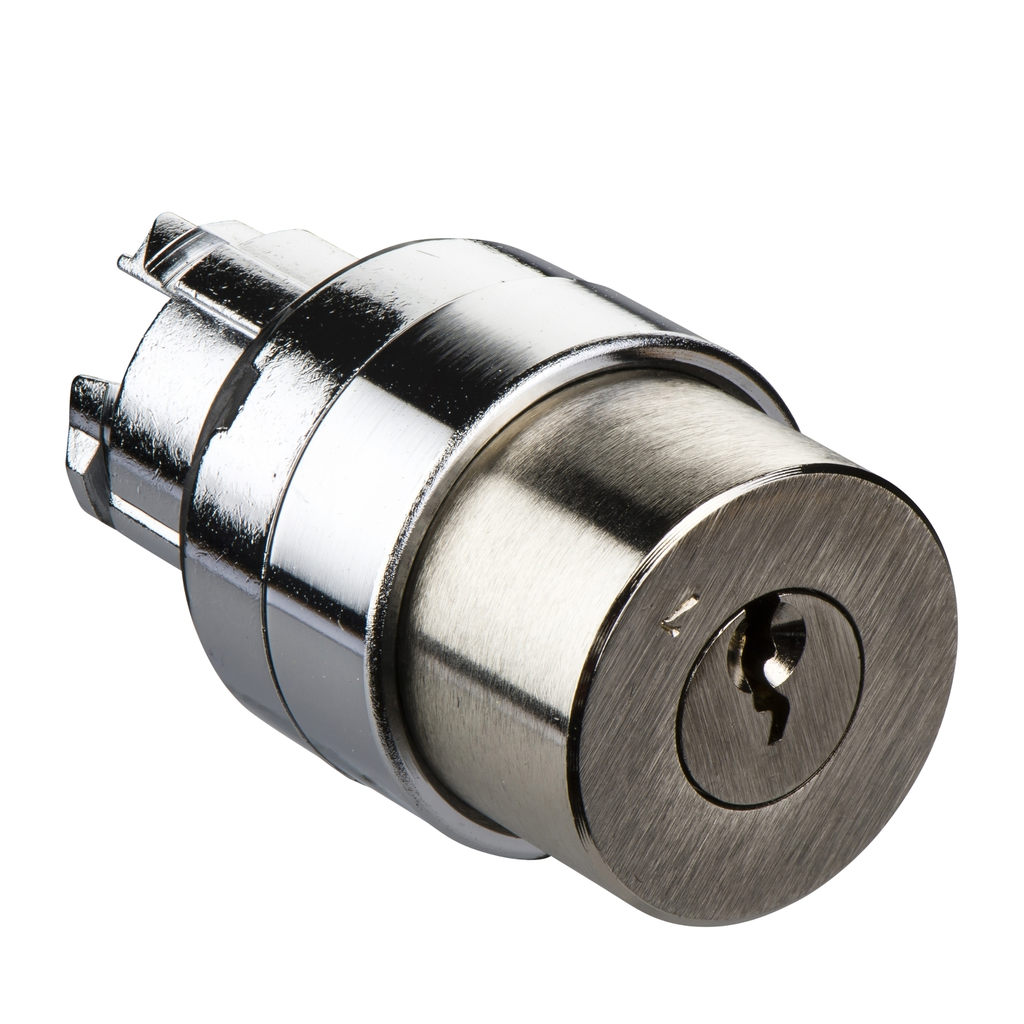

Head for key selector switch, Harmony XB4, bks E7

Name: Head for key selector switch, Harmony XB4, bks E7
Brand: SQUARE D
SKU: SQDZB4BG4E7
Price: 78.77 USD
Availability: OutOfStock

SQDZB4BG4E7 ZB4BG4E7 3389110965902

78.77 / EA

http://schema.org/OutOfStock

Mayer-DDS-Head for key selector switch, Harmony XB4, bks E7-1

QTY

Specifications

Environment

Product Certifications : DNV || GL || LROS (Lloyds register of shipping) || UL Listed || BV || CSA
Ambient Air Temperature For Operation : -40-70 °C
Standards : EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || GB 14048.5 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || UL 508
Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
Ambient Air Temperature For Storage : -40-70 °C
Overvoltage Category : class I IEC 60536
Nema Degree Of Protection : NEMA 13 || NEMA 4X
Protective Treatment : TH

Contractual warranty

Warranty : 18 months

Offer Sustainability

Rohs Exemption Information : Yes
Mercury Free : Yes
Environmental Disclosure : ENVPEP2308006EN
Sustainable Offer Status : Green Premium product
Reach Regulation : Reference contains Substances of Very High Concern above the threshold
California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
China Rohs Regulation : X
Circularity Profile : ENVEOLI2308006EN
Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)

Complementary

Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Net Weight : 0.098 kg
Cad Overall Height : 29 mm
Device Presentation : basic element
Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
Mechanical Durability : 1000000 cycles
Cad Overall Width : 29 mm
Cad Overall Depth : 72 mm

Specifications

Country of Origin : France
Width : 29 mm
Height : 29 mm
Weight : 0.098 kg
Range Of Product : Harmony XB4
Mounting Diameter : 22 mm
Product Or Component Type : head for key selector switch
Shape Of Signaling Unit Head : round
Head Type : standard
Key Withdrawal Position : in any position
Sale Per Indivisible Quantity : 1
Bezel Material : chromium plated metal
Operator Profile : black key switch
Operator Position Information : 2 positions 90°
Device Short Name : ZB4
Type Of Keylock : special key
