SQUARE D

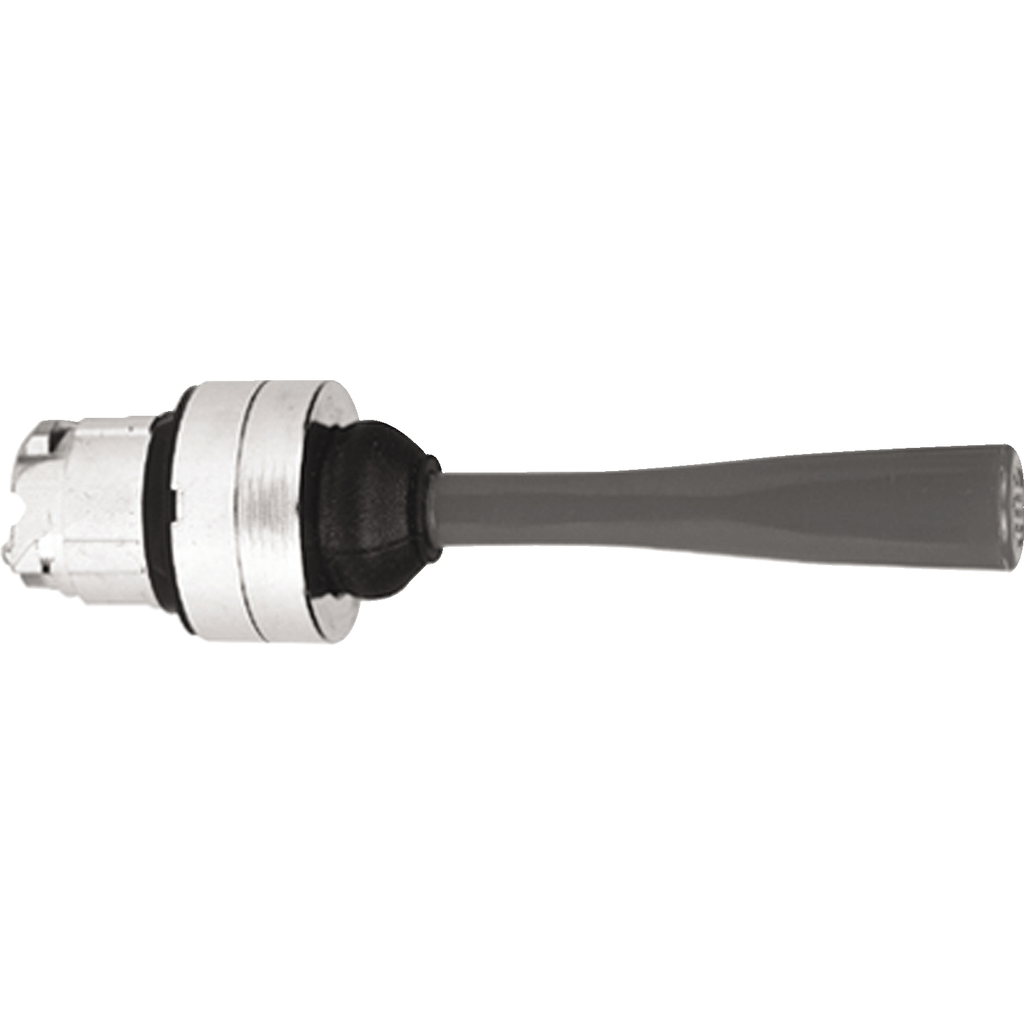

Head for joystick controller, Harmony XB4, black metal, 22mm, omnidirectional, spring return

HEAD FOR JOYSTICK CONTROLLER,

SQDZB4BB2 3389110173239
52.51 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for joystick controller, Harmony XB4, black metal, 22mm, omnidirectional, spring return-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.058 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XB4, black head operates with omnidirectional and spring return / impulse mechanism. This wobble stick head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible omnidirectional controllers. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
QTY
  • Product Description
  • Specifications
This Harmony XB4, black head operates with omnidirectional and spring return / impulse mechanism. This wobble stick head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible omnidirectional controllers. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
  • Environment
    • Ambient Air Temperature For Operation : -25-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Storage : -40-70 °C
    • Product Certifications : UL Listed || GL || BV || LROS (Lloyds register of shipping) || DNV || CSA
    • Protective Treatment : TH
    • Electrical Shock Protection Class : class I IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ip Degree Of Protection : IP66 IEC 60529
    • Ik Degree Of Protection : IK03 IEC 50102
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-5 || JIS C8201-1
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Environmental Disclosure : ENVPEP1808008EN
    • Toxic Heavy Metal Free : Yes
    • Reach Free Of Svhc : Yes
    • Mercury Free : Yes
    • Sustainable Offer Status : Green Premium product
    • Circularity Profile : ENVEOLI1808008EN
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Net Weight : 0.058 kg
    • Mechanical Durability : 1000000 cycles
    • Operator Position Information : all positions
    • Device Presentation : basic element
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
  • Specifications
    • Mounting Diameter : 22 mm
    • Head Type : standard
    • Operator Profile : black 54 mm long operating shaft
    • Product Or Component Type : head for joystick controller
    • Bezel Material : chromium plated metal
    • Device Short Name : ZB4
    • Operator Direction Information : omnidirectional
    • Sale Per Indivisible Quantity : 1
    • Range Of Product : Harmony XB4
    • Shape Of Signaling Unit Head : round
    • Type Of Operator : to zero position spring return
