SQUARE D

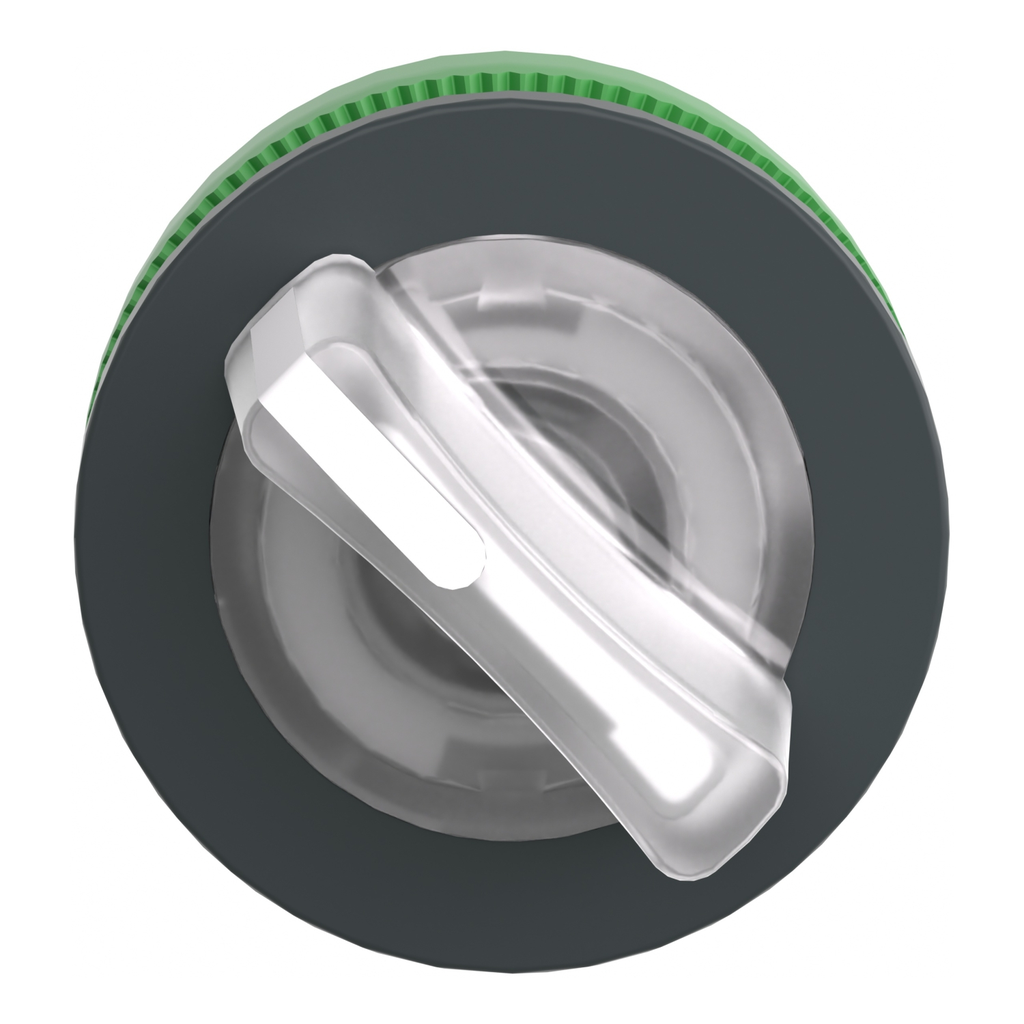

Head for illuminated selector switch, Harmony XB5, plastic, white handle, universal LED, 2 positions, spring return

HEAD FOR ILLUMINATED SELECTOR

SQDZB5FK1413 ZB5FK1413 3606481340306
48.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated selector switch, Harmony XB5, plastic, white handle, universal LED, 2 positions, spring return-3
  • Bezel Material: Plastic
  • Country of Origin: France
  • Head Type: Built-in-flush
  • Height: 37 mm
  • Net Weight: 0.03 kg
  • Weight: 0.03 kg
  • Width: 37 mm
This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Features
  • Specifications
This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CSA || DNV || BV || LROS (Lloyds register of shipping) || UL Listed
    • Ik Degree Of Protection : IK03 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II conforming to IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TH
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2308010EN
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2308010EN
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.3022656148
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Electrical Composition Code : M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
    • Net Weight : 0.03 kg
    • Cad Overall Height : 37 mm
    • Mechanical Durability : 500000 cycles
    • Cad Overall Width : 37 mm
    • Cad Overall Depth : 46 mm
  • Specifications
    • Country of Origin : France
    • Width : 37 mm
    • Height : 37 mm
    • Weight : 0.03 kg
    • Range Of Product : Harmony XB5
    • Mounting Diameter : 30.5 mm
    • Type Of Operator : right to left spring return
    • Product Or Component Type : head for illuminated selector switch
    • Shape Of Signaling Unit Head : round
    • Head Type : built-in-flush
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : dark grey plastic
    • Operator Profile : white standard handle
    • Operator Position Information : 2 positions 90°
    • Product Compatibility : universal LED
    • Device Short Name : ZB5
