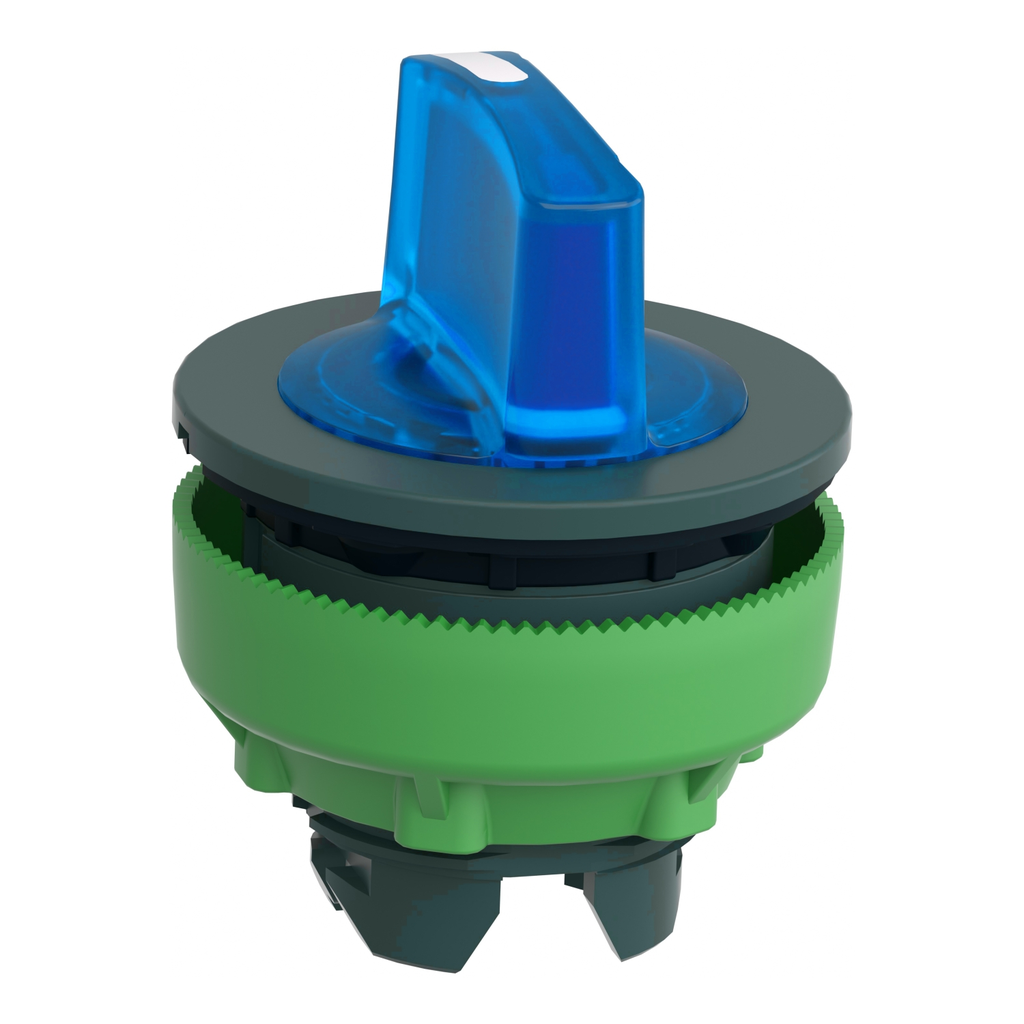

Head for illuminated selector switch, Harmony XB5, plastic, blue handle, universal LED, 3 positions, to center

HEAD FOR ILLUMINATED SELECTOR

SQDZB5FK1563 3606481340368
44.90 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated selector switch, Harmony XB5, plastic, blue handle, universal LED, 3 positions, to center-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.03 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ik Degree Of Protection : IK03 IEC 50102
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Overvoltage Category : class II IEC 60536
    • Standards : UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-1
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Product Certifications : GL || LROS (Lloyds register of shipping) || UL Listed || CSA || DNV || BV
    • Protective Treatment : TH
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Ambient Air Temperature For Operation : -40-70 °C
  • Offer Sustainability
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Circularity Profile : ENVEOLI1710010EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
    • Sustainable Offer Status : Green Premium product
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Cad Overall Depth : 46 mm
    • Net Weight : 0.03 kg
    • Electrical Composition Code : M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
    • Mechanical Durability : 500000 cycles
    • Cad Overall Width : 37 mm
    • Cad Overall Height : 37 mm
  • Specifications
    • Shape Of Signaling Unit Head : round
    • Range Of Product : Harmony XB5
    • Bezel Material : dark grey plastic
    • Type Of Operator : to centre spring return
    • Product Compatibility : universal LED
    • Sale Per Indivisible Quantity : 1
    • Operator Profile : blue standard handle
    • Head Type : built-in-flush
    • Operator Position Information : 3 positions +/- 45°
    • Device Short Name : ZB5
    • Mounting Diameter : 30.5 mm
    • Product Or Component Type : head for illuminated selector switch
