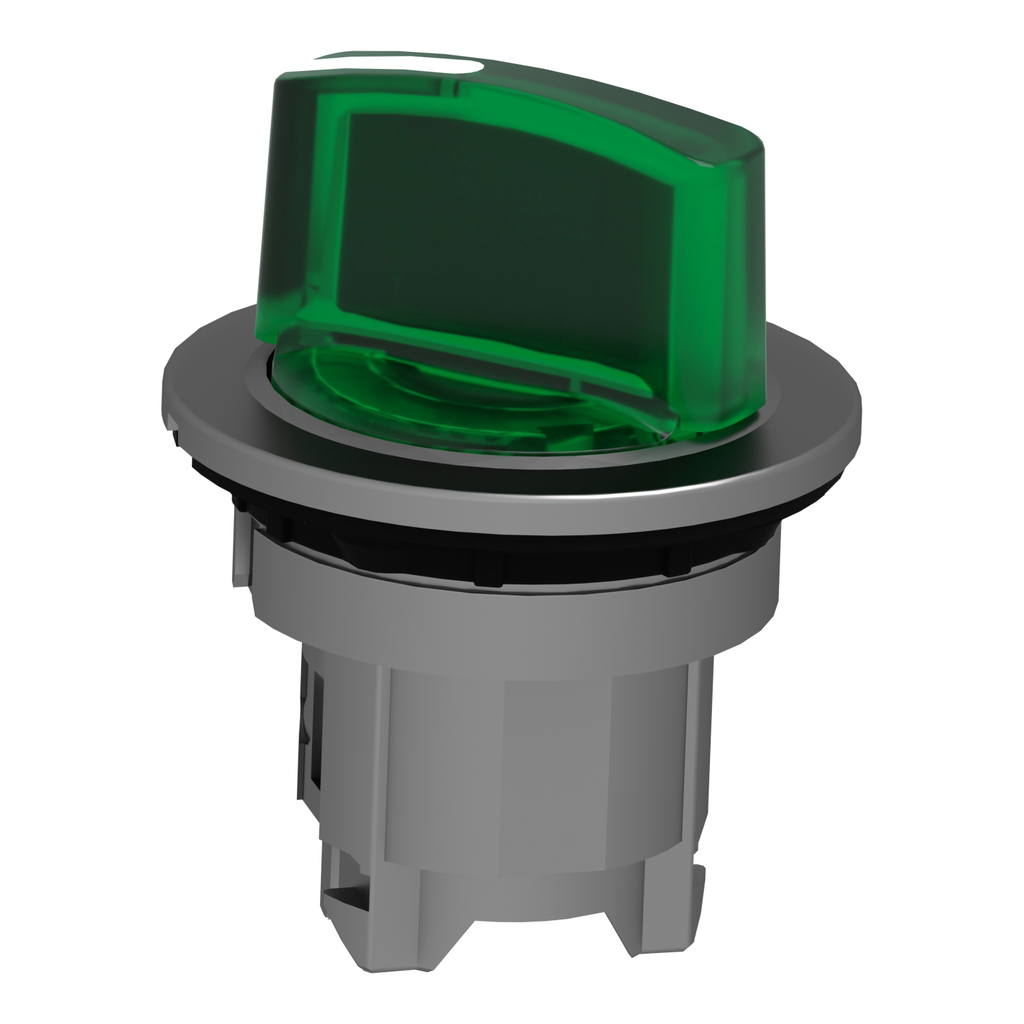

Head for illuminated selector switch, Harmony XB4, metal, green handle, flush mounted, 30mm, universal LED, 2 positions

Head for illuminated selector

SQDZB4FK1433 3606489582159
42.01 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated selector switch, Harmony XB4, metal, green handle, flush mounted, 30mm, universal LED, 2 positions-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: CCC, CSA, EAC, UL Listed
  • IsSustainable: No
  • Net Weight: 0.078 kg
  • Standard: CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Environment
    • Protective Treatment : TH
    • Ik Degree Of Protection : IK06 IEC 50102
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Ambient Air Temperature For Storage : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Overvoltage Category : class I IEC 60536
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1808008EN
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Rohs Exemption Information : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Free Of Svhc : Yes
    • Sustainable Offer Status : Green Premium product
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Cad Overall Width : 36.6 mm
    • Cad Overall Depth : 47 mm
    • Electrical Composition Code : M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Mechanical Durability : 500000 cycles
    • Net Weight : 0.078 kg
    • Cad Overall Height : 36.6 mm
    • Device Presentation : basic element
  • Specifications
    • Mounting Diameter : 30.5 mm
    • Shape Of Signaling Unit Head : round
    • Product Or Component Type : head for illuminated selector switch
    • Sale Per Indivisible Quantity : 1
    • Device Short Name : ZB4F
    • Operator Position Information : 2 positions 90°
    • Bezel Material : chromium plated metal
    • Head Type : built-in-flush
    • Product Compatibility : universal LED
    • Type Of Operator : right to left spring return
    • Range Of Product : Harmony XB4
    • Operator Profile : green standard handle
