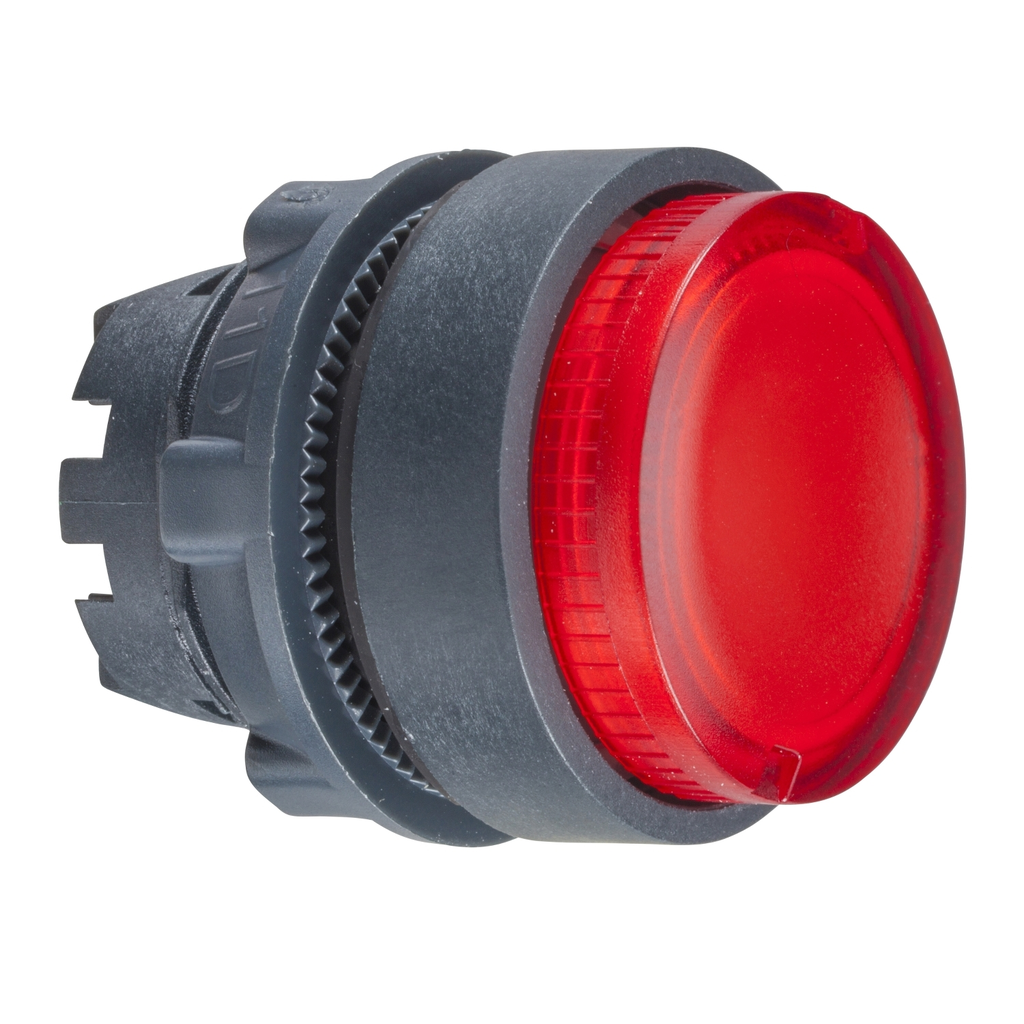

This red projecting illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is also distinguishable by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW1S, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW1F, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW14_CAD
• Physical Attributes
• Cad Overall Depth : 32 mm
• Cad Overall Height : 29 mm
• Cad Overall Width : 29 mm
• Cap Operator Or Lens Color : red
• Conformance Attributes
• Product Certifications : CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
• Standards : UL 508, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-5-1, CSA C22.2 No 14, GB 14048.5, IEC 60947-1, JIS C8201-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Bezel Material : dark grey plastic, dark grey plastic
• Customizable : 0, no
• Electrical Composition Code : M7 6 single front mounting BA 9s, M8 6 single and double front mounting BA 9s, M9 2 single front mounting BA 9s and transformer, MF2 2 single front mounting BA 9s
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Station Name : XALD 1...5 cut-outs, XALK 2...5 cut-outs
• Carbon Footprint Of The Distribution Phase A4 : 0.004900303030303031, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0392969696969697
• Carbon Footprint Of The Installation Phase A5 : 0.004712121212121212, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.1 kg CO2 eq., 0.11850000000000001
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Medium Desc : Head for illuminated push button, Harmony XB5, red projecting, 22mm, BA9s bulb, spring return, unmarked
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Html Descr : Red projecting illuminated pushbutton head Dia 22 spring return for BA9s bulb
• Return Indicator : Y
• Stocking Flag : N
• Manufacturer : Schneider Electric
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2404014EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Metal Content : 29 %
• Average Percentage Of Recycled Plastic Content : 16 %
• Compatibility Code : ZB5
• Device Short Name : ZB5
• Group Of Product : projected push BA9s
• Head Type : standard
• Main Group : illum push-button
• Marking : unmarked
• Mechanical Durability : 10000000 cycles
• Mounting Diameter : 22 mm
• Operator Additional Information : with plain lens
• Operator Profile : red projecting, unmarked
• Overvoltage Category : class II conforming to IEC 60536
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : head for illuminated push-button
• Protective Treatment : TC
• Range Of Product : Harmony XB5
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Software Version : v5.9.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
• Type Of Operator : spring return
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Cap Operator Or Lens Color : red
• Operator Add Information : with plain lens
• X C Product : projected push BA9s
• Operator Profile 1 Cap Operator Or Lens Color : red
• Pep Code : ENVPEP2404014_V1
• Database Version : 2022-01
• Pep Verification Date : 2024-06-09
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Harmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 & UL 508.
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Environment Attributes Main
• Ip Degree Of Protection : IP66 IEC 60529, IP69, IP69K
• Nema Degree Of Protection : UL type 4X/13, NEMA 13, NEMA 4X
• Take Back : Nej
• Recycled Metal Content At Cr Level : 29 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 0.16740939393939394
• Ambient Air Temperature For Operation : -40-55 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2404014EN
• Environmental Disclosure : ENVPEP2404014_V1
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Product Compatibility : BA 9s
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2404014_V1
• Pep Verification Date : 2024-06-09
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : head for illuminated push-button
• Range Of Product : Harmony XB5
• ETIM
• ETIM 8 : EC000221
• ETIM 9 : EC000221
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : basic sub-assemblies
