SQUARE D

Head for illuminated push button, Harmony XB5, plastic, red flush mounted, 30mm, universal LED, illuminated ring

HEAD FOR ILLUMINATED PUSH BUTT

SQDZB5FW943 3606481340481
18.73 / EA
http://schema.org/OutOfStock

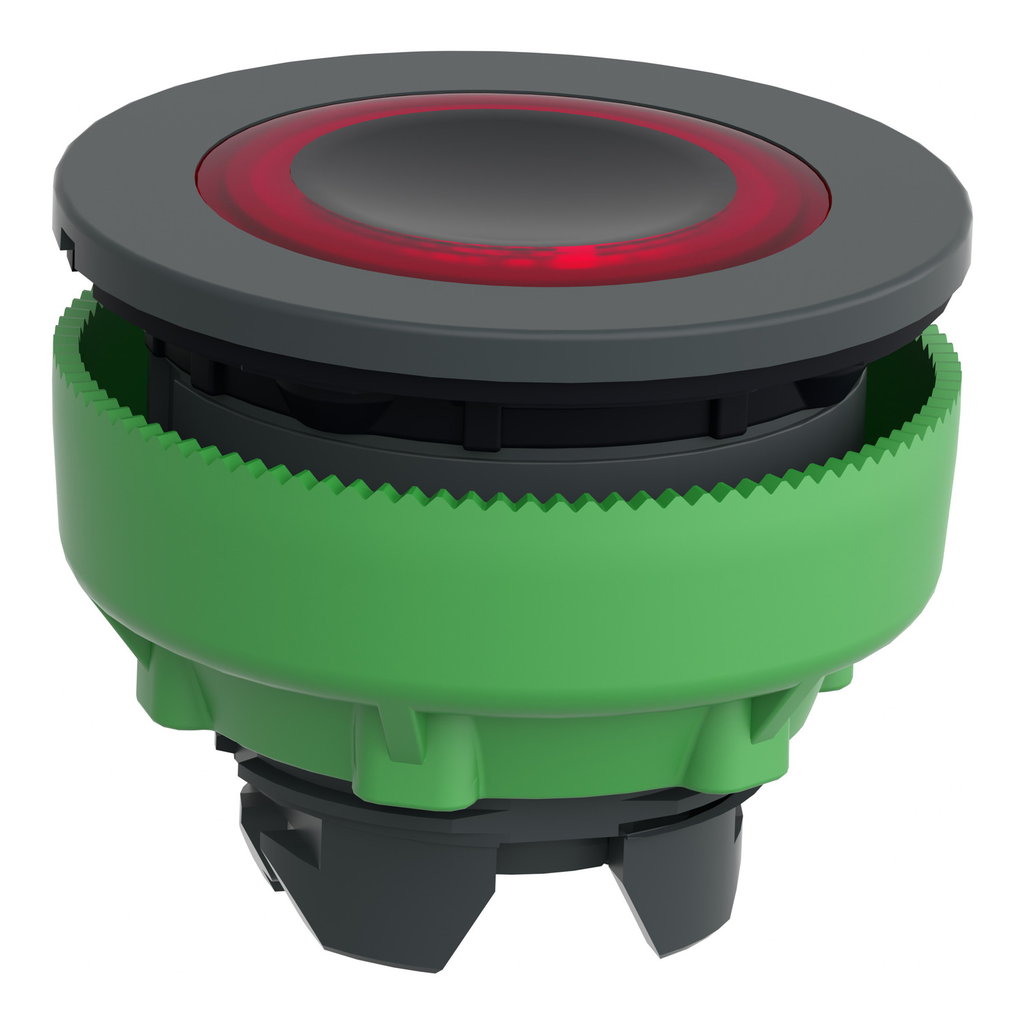

Mayer-DDS-Head for illuminated push button, Harmony XB5, plastic, red flush mounted, 30mm, universal LED, illuminated ring-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.017 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Standards : UL 508 || GB 14048.5 || EN/IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-1
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TC
    • Ambient Air Temperature For Operation : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ik Degree Of Protection : IK03 EN 50102
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Product Certifications : GL || LROS (Lloyds register of shipping) || DNV || UL Listed || BV || CSA
  • Offer Sustainability
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Circularity Profile : ENVEOLI1710010EN
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Mercury Free : Yes
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Cad Overall Width : 37 mm
    • Net Weight : 0.017 kg
    • Cad Overall Height : 37 mm
    • Cap/Operator Or Lens Colour : red
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED
    • Group Of Product : flush push with ring illum LED
    • Marking : unmarked
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Depth : 30 mm
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Main Group : illum push-button
  • Specifications
    • Product Compatibility : universal LED
    • Head Type : built-in-flush
    • Shape Of Signaling Unit Head : round
    • Device Short Name : ZB5
    • Product Or Component Type : head for illuminated push-button
    • Type Of Operator : spring return
    • Bezel Material : dark grey plastic
    • Operator Additional Information : with illuminated ring
    • Sale Per Indivisible Quantity : 1
    • Range Of Product : Harmony XB5
    • Operator Profile : red flush, unmarked
    • Mounting Diameter : 30.5 mm
