SQUARE D

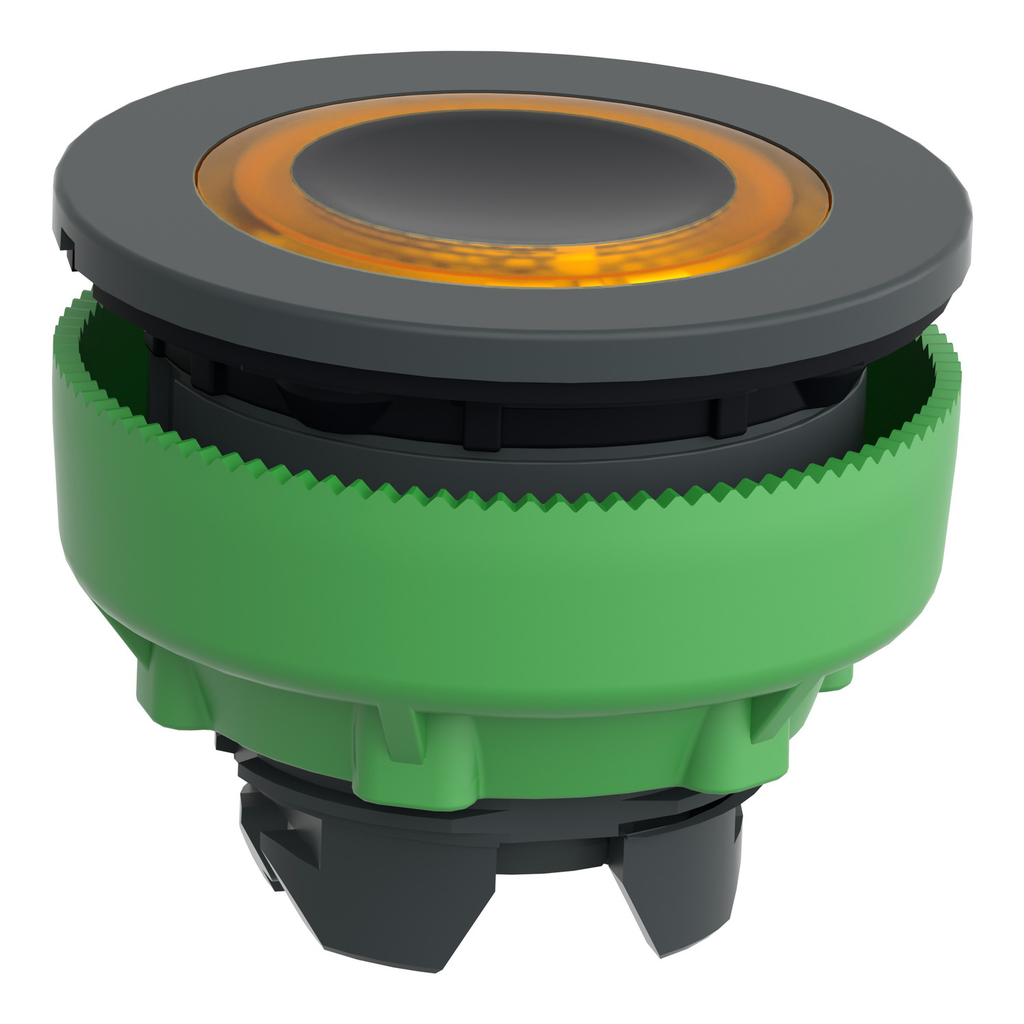

Head for illuminated push button, Harmony XB5, plastic, orange flush mounted, 30mm, universal LED, illuminated ring

HEAD FOR ILLUMINATED PUSH BUTT

SQDZB5FW953 3606481340498
18.73 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, plastic, orange flush mounted, 30mm, universal LED, illuminated ring-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.017 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Storage : -40-70 °C
    • Product Certifications : UL Listed || DNV || BV || CSA || LROS (Lloyds register of shipping) || GL
    • Standards : EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || GB 14048.5 || EN/IEC 60947-5-4 || JIS C8201-1
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Overvoltage Category : class II IEC 60536
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ik Degree Of Protection : IK03 EN 50102
    • Protective Treatment : TC
    • Ambient Air Temperature For Operation : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
  • Offer Sustainability
    • Environmental Disclosure : ENVPEP1710010EN
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Rohs Exemption Information : Yes
    • Toxic Heavy Metal Free : Yes
    • Sustainable Offer Status : Green Premium product
    • Reach Free Of Svhc : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1710010EN
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cad Overall Depth : 30 mm
    • Group Of Product : flush push with ring illum LED
    • Mechanical Durability : 10000000 cycles
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED
    • Cad Overall Width : 37 mm
    • Cap/Operator Or Lens Colour : orange
    • Net Weight : 0.017 kg
    • Marking : unmarked
    • Main Group : illum push-button
    • Cad Overall Height : 37 mm
  • Specifications
    • Product Or Component Type : head for illuminated push-button
    • Type Of Operator : spring return
    • Range Of Product : Harmony XB5
    • Product Compatibility : universal LED
    • Operator Additional Information : with illuminated ring
    • Device Short Name : ZB5
    • Head Type : built-in-flush
    • Bezel Material : dark grey plastic
    • Sale Per Indivisible Quantity : 1
    • Operator Profile : orange flush, unmarked
    • Shape Of Signaling Unit Head : round
    • Mounting Diameter : 30.5 mm
