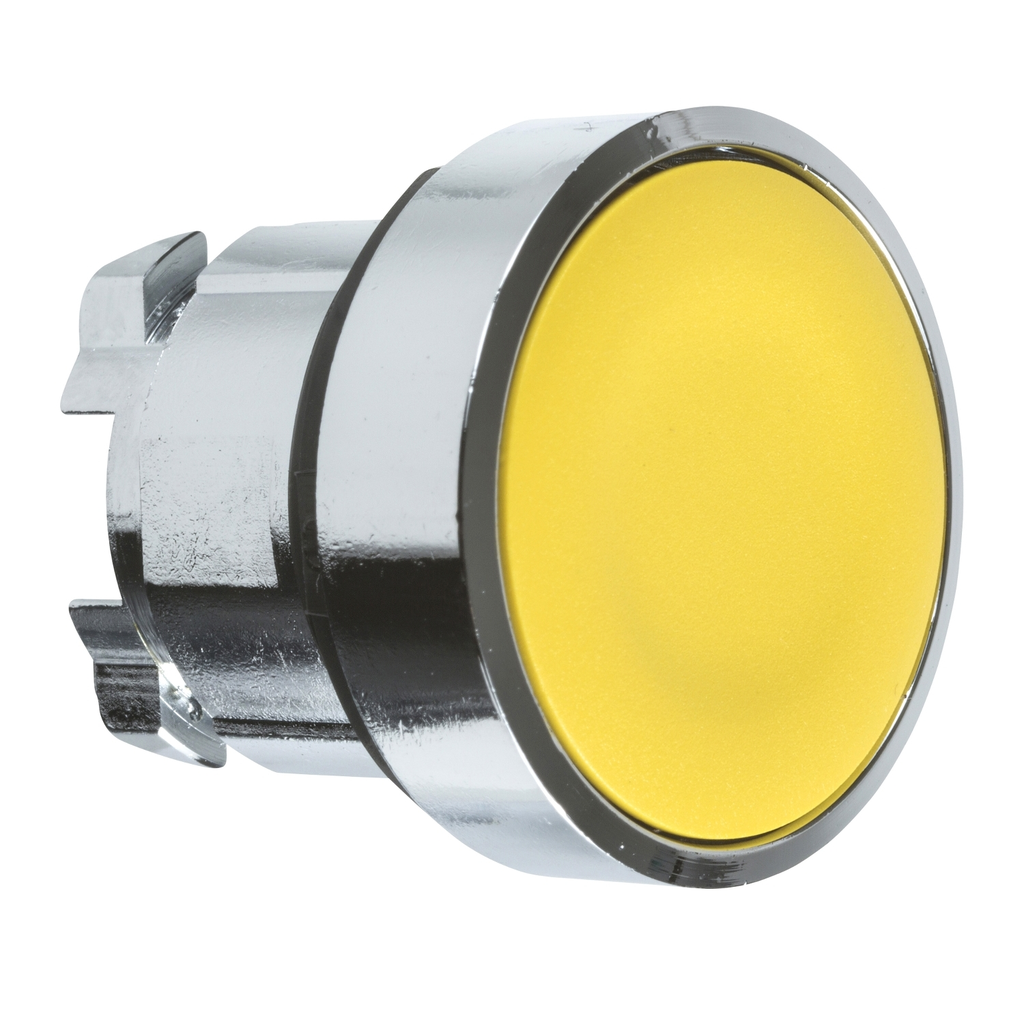

Head for illuminated push button, Harmony XB4, metal, yellow flush, 22mm, push-push, unmarked

HEAD FOR NON ILLUMINATED PUSH

SQDZB4BH05 ZB4BH05 3389110122701
17.60 / EA
http://schema.org/OutOfStock
QTY
  • Product Description
  • Specifications
This Harmony XB4, flush yellow button head operates with a latched push-push mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Environment
    • Product Certifications : DNV || LROS (Lloyds register of shipping) || GL || CSA || BV || UL Listed
    • Ik Degree Of Protection : IK06 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 60947-5-5 || IEC 60947-5-4 || UL 508 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class I IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2308035EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI2308035EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Electrical Composition Code : C11 3 single front mounting || C15 1 single front mounting || C9 3 single front mounting
    • Cad Overall Height : 29 mm
    • Device Presentation : basic element
    • Mechanical Durability : 2000000 cycles
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 28 mm
  • Specifications
    • Country of Origin : Czechia
    • Width : 29 mm
    • Height : 29 mm
    • Range Of Product : Harmony XB4
    • Mounting Diameter : 22.5 mm
    • Type Of Operator : push-push
    • Product Or Component Type : head for non-illuminated push-button
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : yellow
    • Head Type : standard
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Operator Profile : yellow flush, unmarked
    • Device Short Name : ZB4
