SQUARE D

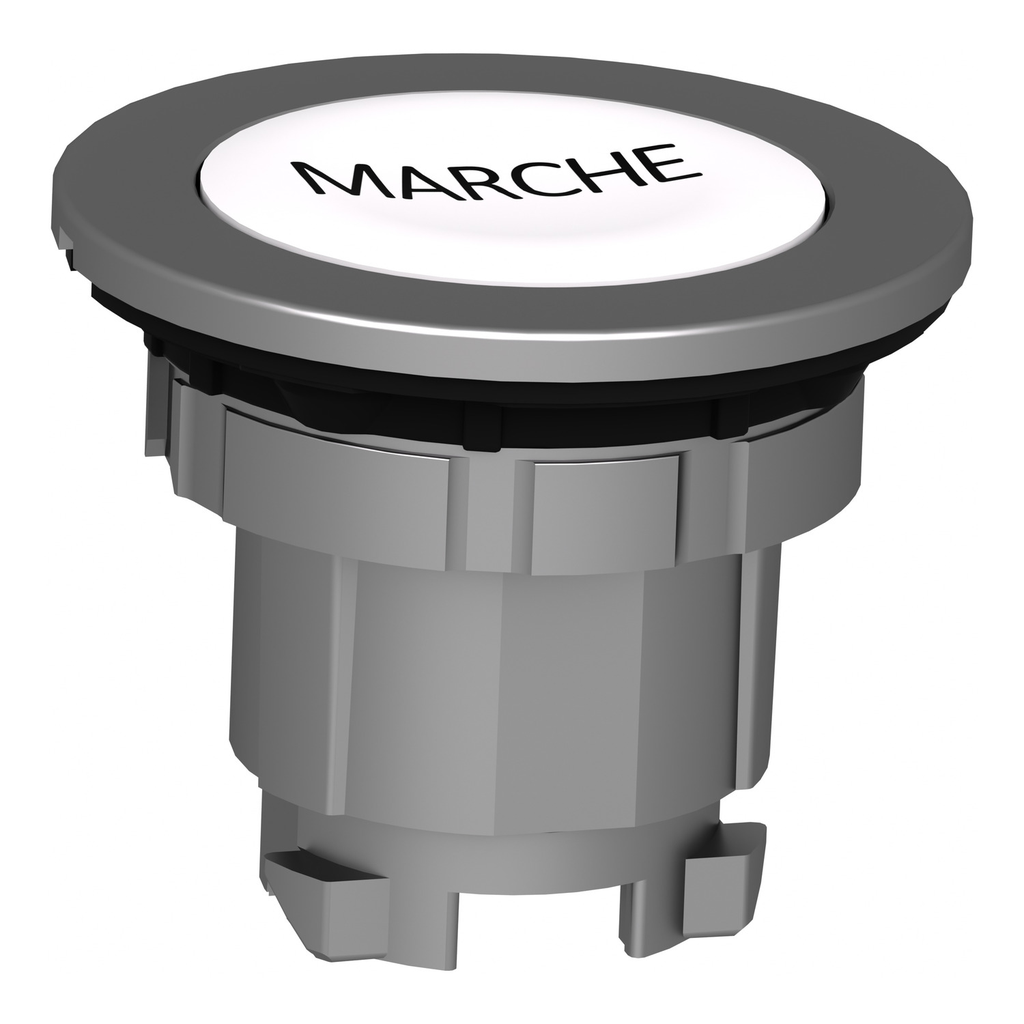

Head for illuminated push button, Harmony XB4, metal, white flush, 30mm, spring return, black marked MARCHE

HEAD FOR NON ILLUMINATED PUSH

SQDZB4FA142 SQDZB4FA142
12.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB4, metal, white flush, 30mm, spring return, black marked MARCHE-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: CCC, CSA, EAC, UL Listed
  • IsSustainable: No
  • Standard: CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Environment
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
    • Overvoltage Category : class I IEC 60536
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    • Ik Degree Of Protection : IK06 IEC 50102
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Protective Treatment : TH
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Ambient Air Temperature For Storage : -40-70 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Circularity Profile : ENVEOLI1808008EN
    • Sustainable Offer Status : Green Premium product
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Complementary
    • Cad Overall Width : 36.6 mm
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
    • Device Presentation : basic element
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Depth : 31 mm
    • Cad Overall Height : 36.6 mm
  • Specifications
    • Range Of Product : Harmony XB4
    • Sale Per Indivisible Quantity : 1
    • Mounting Diameter : 30.5 mm
    • Operator Profile : white flush, MARCHE black)
    • Bezel Material : chromium plated metal
    • Type Of Operator : spring return
    • Device Short Name : ZB4F
    • Head Type : built-in-flush
    • Product Or Component Type : head for non-illuminated push-button
    • Shape Of Signaling Unit Head : round
