Head for illuminated push button, Harmony XB4, metal, black flush, 30mm, spring return, white marked O

HEAD FOR NON ILLUMINATED PUSH

SQDZB4FL232 3606489582401
16.55 / EA
http://schema.org/OutOfStock

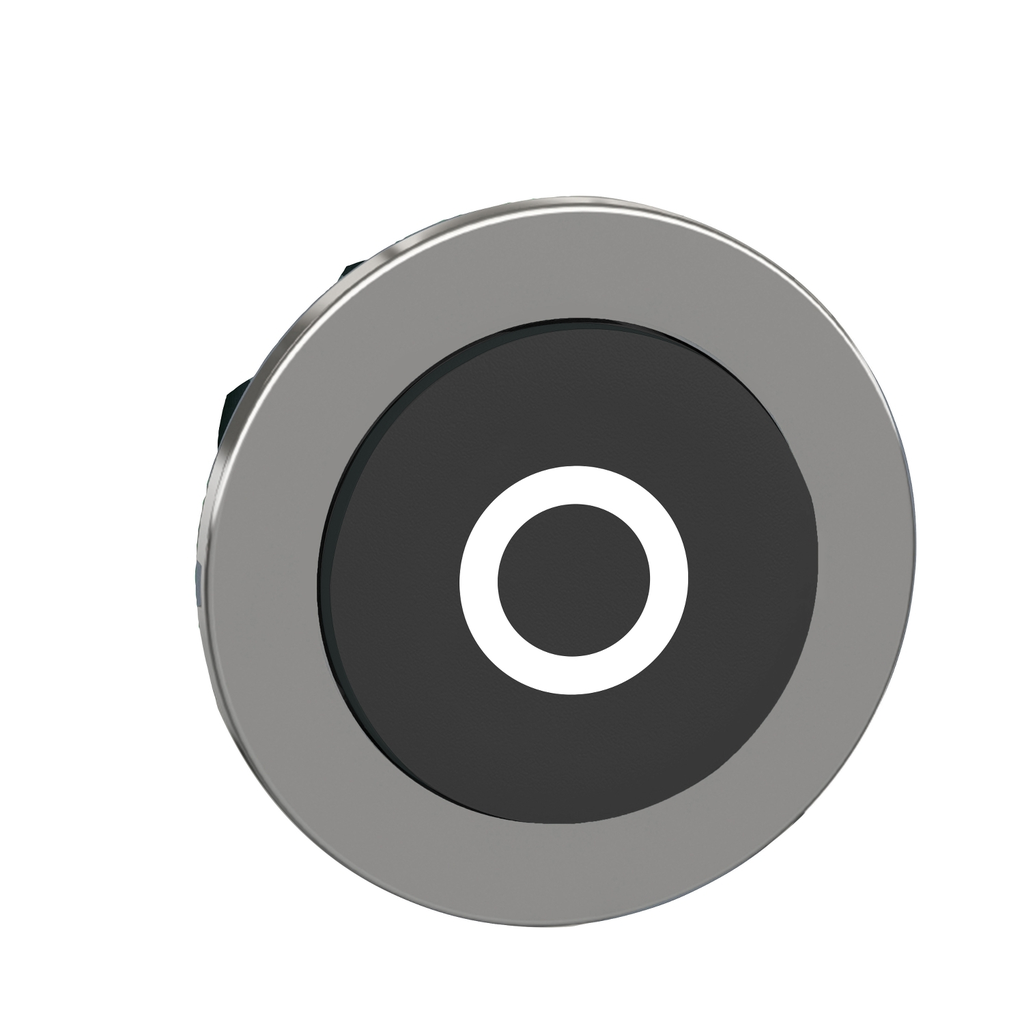

Mayer-DDS-Head for illuminated push button, Harmony XB4, metal, black flush, 30mm, spring return, white marked O-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: CCC, CSA, EAC, UL Listed
  • IsSustainable: No
  • Standard: CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Environment
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ik Degree Of Protection : IK06 IEC 50102
    • Protective Treatment : TH
    • Ambient Air Temperature For Storage : -40-70 °C
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Overvoltage Category : class I IEC 60536
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Environmental Disclosure : ENVPEP1808008EN
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Sustainable Offer Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Rohs Exemption Information : Yes
    • Circularity Profile : ENVEOLI1808008EN
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
  • Complementary
    • Device Presentation : basic element
    • Cad Overall Depth : 33 mm
    • Cad Overall Height : 36.6 mm
    • Cad Overall Width : 36.6 mm
    • Mechanical Durability : 10000000 cycles
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
  • Specifications
    • Sale Per Indivisible Quantity : 1
    • Product Or Component Type : head for non-illuminated push-button
    • Mounting Diameter : 30.5 mm
    • Operator Profile : black projecting, O white)
    • Range Of Product : Harmony XB4
    • Type Of Operator : spring return
    • Device Short Name : ZB4F
    • Head Type : built-in-flush
    • Bezel Material : chromium plated metal
    • Shape Of Signaling Unit Head : round
