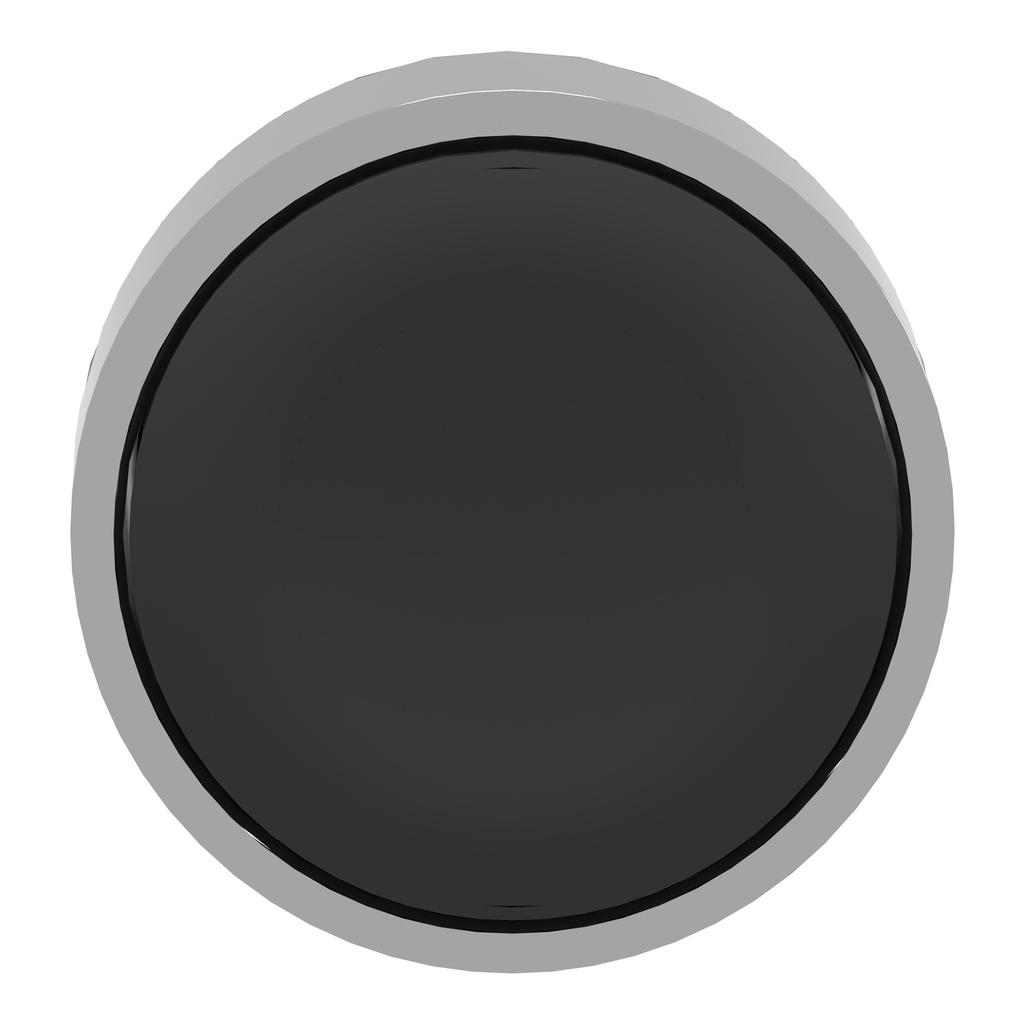

Head for non illuminated push button, Harmony XB4, metal, black flush, 22mm, spring return, unmarked, set of 100

HARMONY XB4, PUSH BUTTON HEAD,

SQDZB4BA2TQ 3389110865295
11.38 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for non illuminated push button, Harmony XB4, metal, black flush, 22mm, spring return, unmarked, set of 100-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This button head provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly It is sold by 100 units High performance International standards & certifications ( Marine certification, IP66)
QTY
  • Product Description
  • Specifications
This button head provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly It is sold by 100 units High performance International standards & certifications ( Marine certification, IP66)
  • Environment
    • Ambient Air Temperature For Operation : -40-70 °C
    • Product Certifications : GL || UL Listed || BV || LROS (Lloyds register of shipping) || DNV || CSA
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Standards : IEC 60947-1 || UL 508 || IEC 60947-5-5 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ik Degree Of Protection : IK06 IEC 50102
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Overvoltage Category : class I IEC 60536
    • Protective Treatment : TH
    • Ambient Air Temperature For Storage : -40-70 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Sustainable Offer Status : Green Premium product
    • Rohs Exemption Information : Yes
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1808008EN
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Complementary
    • Cad Overall Depth : 28 mm
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
    • Cad Overall Width : 29 mm
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Height : 29 mm
  • Specifications
    • Device Short Name : ZB4
    • Sale Per Indivisible Quantity : 100
    • Mounting Diameter : 22 mm
    • Head Type : standard
    • Type Of Operator : spring return
    • Operator Profile : black flush, unmarked
    • Bezel Material : chromium plated metal
    • Range Of Product : Harmony XB4
    • Product Or Component Type : head for non-illuminated push-button
    • Shape Of Signaling Unit Head : round
