Head for illuminated push button, Harmony XB4, plastic, white projecting, 30mm, universal LED, spring return, plain lens

Head for illuminated push butt

SQDZB4FW113 ZB4FW113 3606489582593
12.76 / EA
http://schema.org/OutOfStock

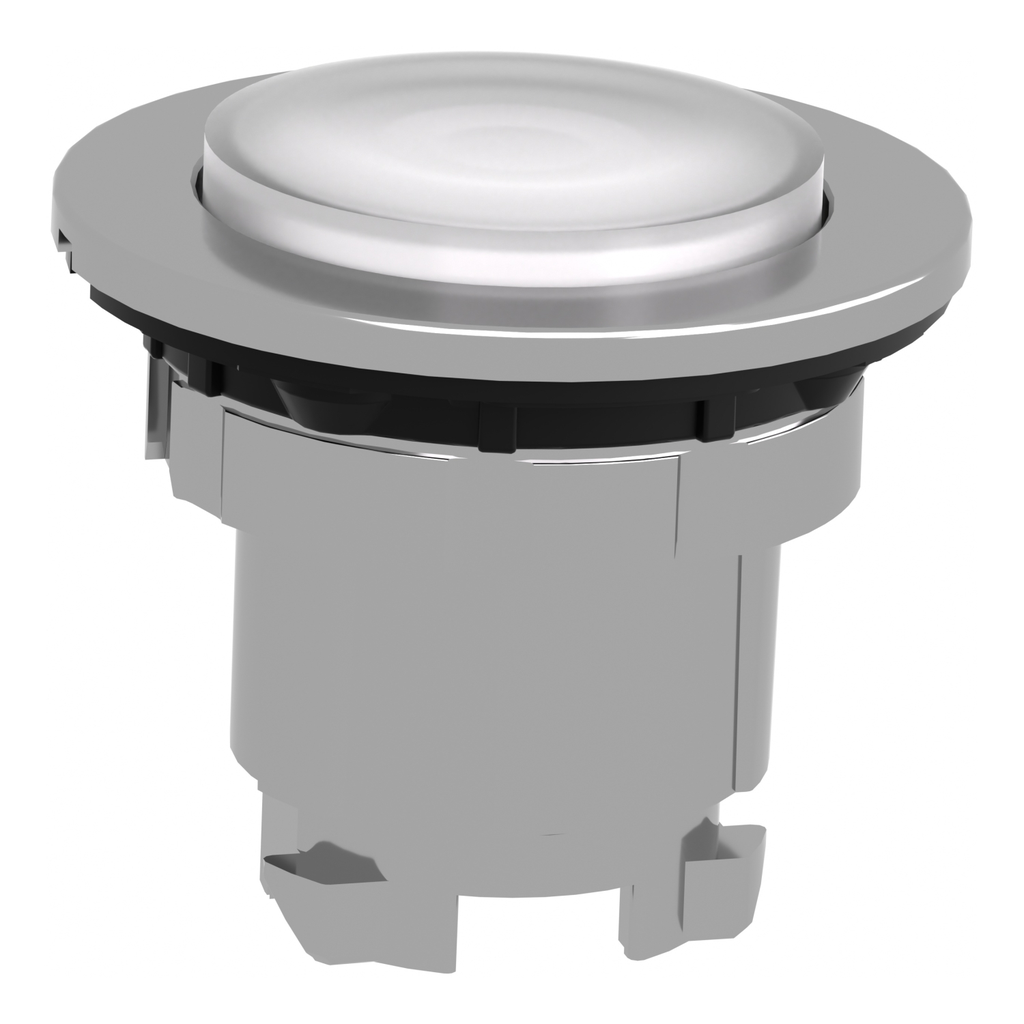

Mayer-DDS-Head for illuminated push button, Harmony XB4, plastic, white projecting, 30mm, universal LED, spring return, plain lens-2
  • Bezel Material: Chromium Plated Metal
  • Country of Origin: France
  • Head Type: Built-in-flush
  • Warranty Length: 18 mth
This 30.5 mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishab
QTY
  • Product Description
  • Features
  • Specifications
This 30.5 mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishab
  • Overvoltage Category
    • class I conforming to IEC 60536
  • Electrical Composition Code
    • M1 6 single front mounting integral LED
    • M2 6 single and double front mounting integral LED
    • M2
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FH13_2024&p_File_name=ZB4FH13_2D-back.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB4FH13_2024&p_File_name=ZB4FH13_2D-back.dxf
    • https://download.schneider-electric.com/files?p_
  • IP Degree Of Protection
    • IP66 IEC 60529
    • IP67 IEC 60529
    • IP69 IEC 60529
    • IP69K ISO 20653
    • Type 13 UL 50 E
    • Type 12 UL 50 E
    • Type 4 UL 50 E
    • Type 4X UL 50 E
  • Carbon Footprint Of The Installation Phase A5
    • 0.0086693305
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1 kg CO2 eq.
    • 0.0982397684
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.4 kg CO2 eq.
    • 0.4437945474
  • Accessories
    • ZBE101
    • ZB4BZ009
    • ZBYLEG304001
    • ZBYLEG503001
    • ZBE1015
  • Vibration Resistance
    • 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
    • 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
    • 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Customizable
    • no
    • 1
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0094325811
    • 0 kg CO2 eq.
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operator Profile
    • white projecting, unmarked
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave ac
  • Physical Attributes
    • Cad Overall Depth : 35 mm
    • Cad Overall Height : 36.6 mm
    • Cad Overall Width : 36.6 mm
  • Important Information Attributes
    • B2B Bullet Point 1 : Quick and easy assembly and disassembly
    • B2B Bullet Point 2 : Robustness to withstand harsh environments
    • B2B Bullet Point 3 : Various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
    • B2B Bullet Point 4 : Excellent mechanical connection with operator head
    • B2B Bullet Point 5 : A wide choice of contact blocks for general purposes or specific applications
    • B2B Bullet Point 6 : Large set of accessories to customize your panels
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Manufacturing Carbon Footprint : 0.4437945474
    • Distribution Carbon Footprint : 0.0094325811
    • Installation Carbon Footprint : 0.0086693305
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 0.0982397684
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1808008EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : chromium plated metal
    • Compatibility Code : ZB4
    • Device Short Name : ZB4F
    • GCR Bridge : ZB4FWCUST01
    • Group Of Product : proj push integral LED
    • Head Type : built-in-flush
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    • Main Group : illum push-button
    • Mounting Diameter : 30.5 mm
    • Package Weight Lbs : 58.968 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony XB4
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 0.6 kg CO2 eq.
    • Type Of Operator : spring return
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.5601362274
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1808008EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 58.968
    • Functional Unit Description : Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily inst
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 0
    • Energy Model Manufacturing A1 A3 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.0039778997
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.0036423947
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.0000629107
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.0000344118
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0002381824
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.0006444524
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.0027879444
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.0023737206
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.0003853496
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.0000288742
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0005131078
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 0.5573487537
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.4414208842
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.0094325811
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.0082842568
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.0982110316
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.1115506737
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 0.5601362274
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.4437945474
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.0094325811
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.0086693305
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.0982397684
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.1120621895
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0000742992
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0000742962
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000004
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000003
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000023
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.0000307398
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 11.6169086526
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 7.0221347368
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.1313043789
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0902394316
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 4.3732301053
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -2.3552141053
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 90.0238322716
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 89.5152631579
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.0063468189
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.0591634105
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.4430588842
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -1.9891642105
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.0000000561
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.0000000541
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.0000000005
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.0000000002
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.0000000012
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.0000000543
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0000039349
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0000038477
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.0000000035
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.0000000626
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.000000021
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.000000256
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 1.9804214919
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.9039882105
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0001024813
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0763308
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -2.4182052632
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.0000002776
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000002745
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.0000000031
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000003575
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.000000135
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000001335
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000015
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000000058
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 0.0066508547
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.0046003661
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.0020504886
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 0.5996028597
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0.5981861053
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0000229257
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0004064309
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0009873979
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.0185105495
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.0006816678
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0005891627
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0000296656
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.000009113
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0000537264
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0000695834
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.0252774436
    • Materials For Recycling Kg Manufacturing A1 A3 : 0
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.0047639362
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.0205135074
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.0085282372
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0029044326
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0000008322
    • Net Use Of Fresh Water M3 Installation A5 : 0.0000861875
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0055367848
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.0011195874
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0.3215870227
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.2804888211
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0003303932
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0282017621
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0125660463
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.1796167579
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000001318
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000001307
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000006
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000005
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.000000017
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.0022603342
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0019920379
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0000825035
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0000183663
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0001674266
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0002651548
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0001102979
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0001054987
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000002353
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000037855
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000007784
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0000408006
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.0072709038
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.0063899242
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.000325508
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0000687845
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.0004866872
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.00077532
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 11.6169086526
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 7.0221347368
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1313043789
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0902394316
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 4.3732301053
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -2.3552141053
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 11.7464945684
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 7.1439789474
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.1314825474
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0967109684
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 4.3743221053
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -2.4009631579
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1298330929
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1220970947
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00017522
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0064749853
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0010857928
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0457525011
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.3234963789
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.3234963789
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 11.2933318105
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 6.6985578947
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1313043789
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0902394316
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 4.3732301053
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -2.3552141053
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.0943775368
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.0943775368
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0694512
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.0354561308
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.0277201326
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00017522
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0064749853
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0010857928
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.0236975495
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.0000185243
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0000185243
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
  • General Attributes
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony XB4
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=460293350&lang=en-us
    • Take Back : No
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.5601362274
    • Circularity Profile : ENVEOLI1808008EN
    • Environmental Disclosure : ENVPEP1808008EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1808008EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
  • Overview Attributes
    • Device Presentation : basic element
