SQUARE D

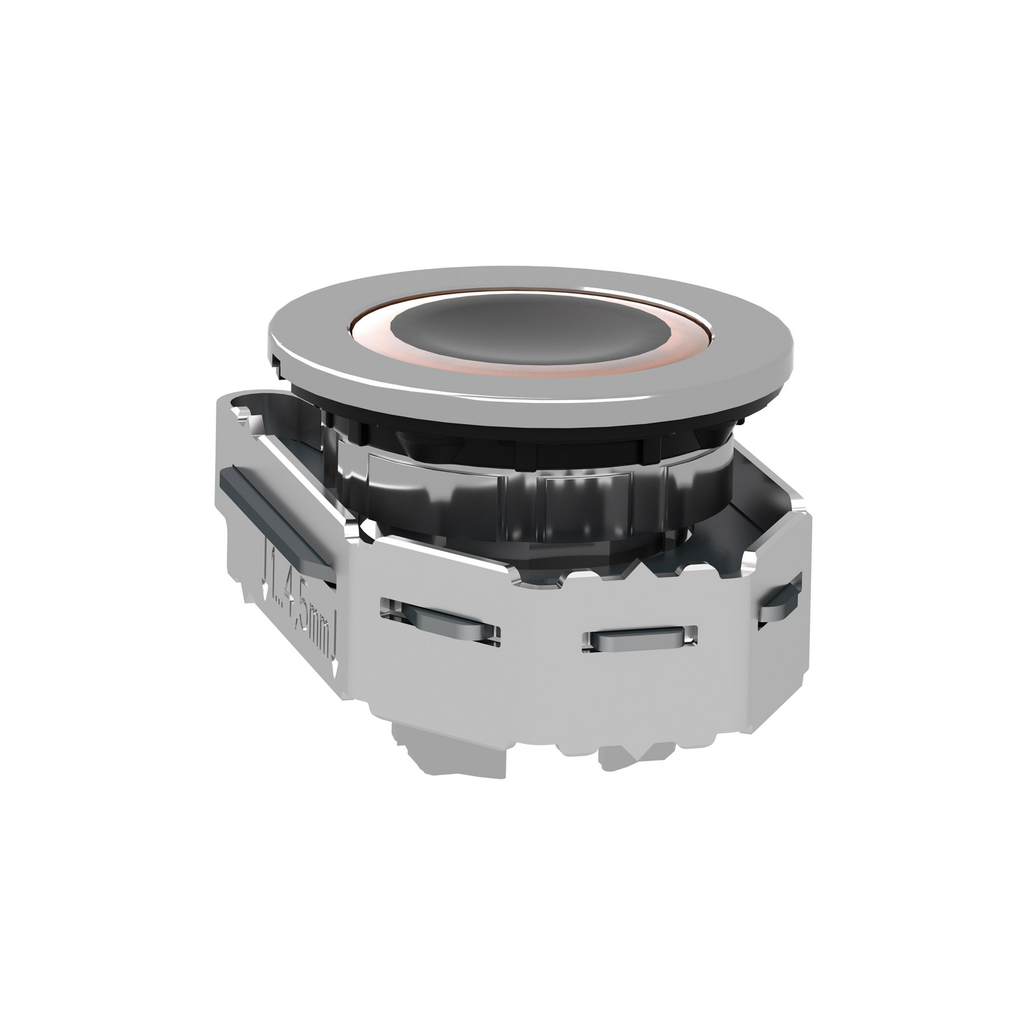

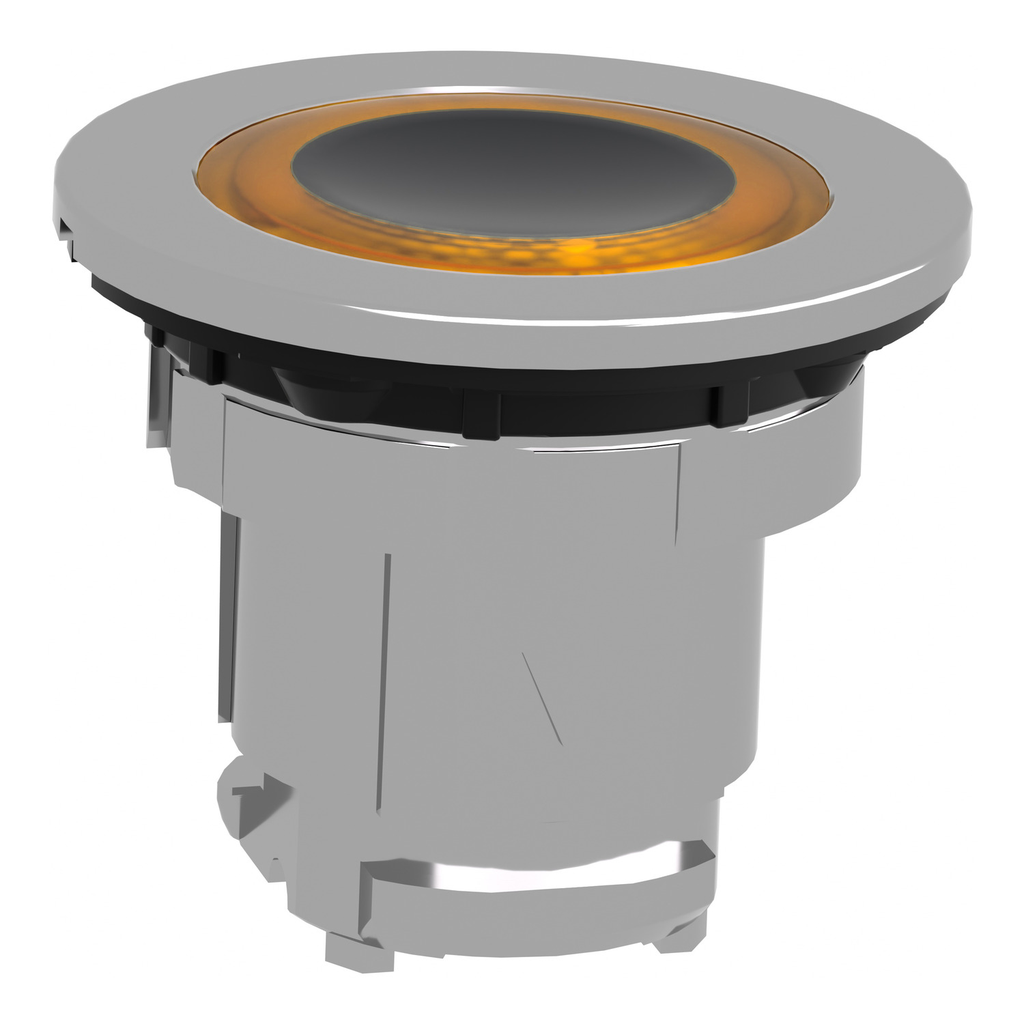

Head for illuminated push button, Harmony XB4, plastic, orange flush, 30mm, universal LED, illuminated ring

Head for illuminated push butt

SQDZB4FW953 3606489582753
15.48 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB4, plastic, orange flush, 30mm, universal LED, illuminated ring-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: CCC, CSA, EAC, UL Listed
  • IsSustainable: No
  • Net Weight: 0.06 kg
  • Standard: CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its illuminated clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its illuminated clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Environment
    • Ik Degree Of Protection : IK06 EN 50102
    • Overvoltage Category : class I IEC 60536
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
    • Protective Treatment : TH
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ambient Air Temperature For Operation : -40-70 °C
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Reach Free Of Svhc : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Circularity Profile : ENVEOLI1808008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Cad Overall Depth : 31 mm
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
    • Mechanical Durability : 10000000 cycles
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Net Weight : 0.06 kg
    • Device Presentation : basic element
    • Cad Overall Height : 36.6 mm
    • Cad Overall Width : 36.6 mm
  • Specifications
    • Bezel Material : chromium plated metal
    • Operator Profile : orange flush, unmarked
    • Product Compatibility : universal LED
    • Device Short Name : ZB4F
    • Type Of Operator : spring return
    • Mounting Diameter : 30.5 mm
    • Head Type : built-in-flush
    • Sale Per Indivisible Quantity : 1
    • Operator Additional Information : with illuminated ring
    • Range Of Product : Harmony XB4
    • Shape Of Signaling Unit Head : round
    • Product Or Component Type : head for illuminated push-button
