SQUARE D

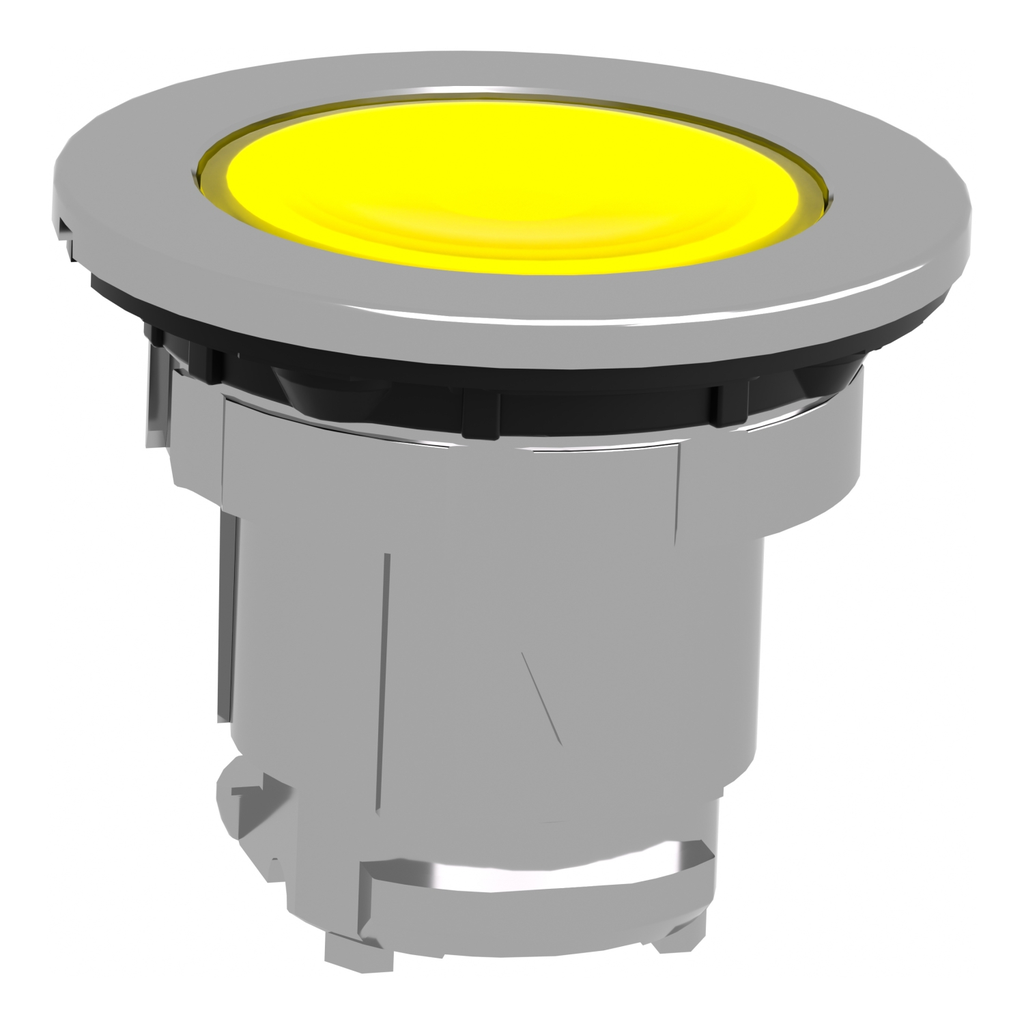

Head for illuminated push button, Harmony XB4, metal, yellow flush mounted, 30mm, universal LED, unmarked

Head for illuminated push butt

SQDZB4FH083 3606489581664
14.66 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB4, metal, yellow flush mounted, 30mm, universal LED, unmarked-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: CCC, CSA, EAC, UL Listed
  • IsSustainable: No
  • Net Weight: 0.058 kg
  • Standard: CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its illuminated clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its illuminated clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Environment
    • Electrical Shock Protection Class : class I IEC 60536
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
    • Protective Treatment : TH
    • Ik Degree Of Protection : IK06 IEC 50102
    • Ambient Air Temperature For Storage : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Overvoltage Category : class I IEC 60536
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Environmental Disclosure : ENVPEP1808008EN
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Circularity Profile : ENVEOLI1808008EN
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Net Weight : 0.058 kg
    • Cad Overall Depth : 31 mm
    • Cad Overall Width : 36.6 mm
    • Cad Overall Height : 36.6 mm
    • Device Presentation : basic element
    • Mechanical Durability : 500000 cycles
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Electrical Composition Code : M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
  • Specifications
    • Sale Per Indivisible Quantity : 1
    • Device Short Name : ZB4F
    • Product Compatibility : universal LED
    • Bezel Material : chromium plated metal
    • Shape Of Signaling Unit Head : round
    • Mounting Diameter : 30.5 mm
    • Range Of Product : Harmony XB4
    • Operator Profile : yellow flush, unmarked
    • Type Of Operator : push-push
    • Product Or Component Type : head for illuminated push-button
    • Head Type : built-in-flush
