Head for emergency switching off push button, Harmony XAC, red mushroom 30mm, trigger/latching key release, unmarked

RED �30 EMERGENCY STOP, SWITCH

SQDZA2BS934 ZA2BS934 3389110591774
131.26 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for emergency switching off push button, Harmony XAC, red mushroom 30mm, trigger/latching key release, unmarked-1
  • Country of Origin: USA
  • Net Weight: 0.06 kg
  • Warranty Length: 18 mth
  • Weight: 0.06 kg

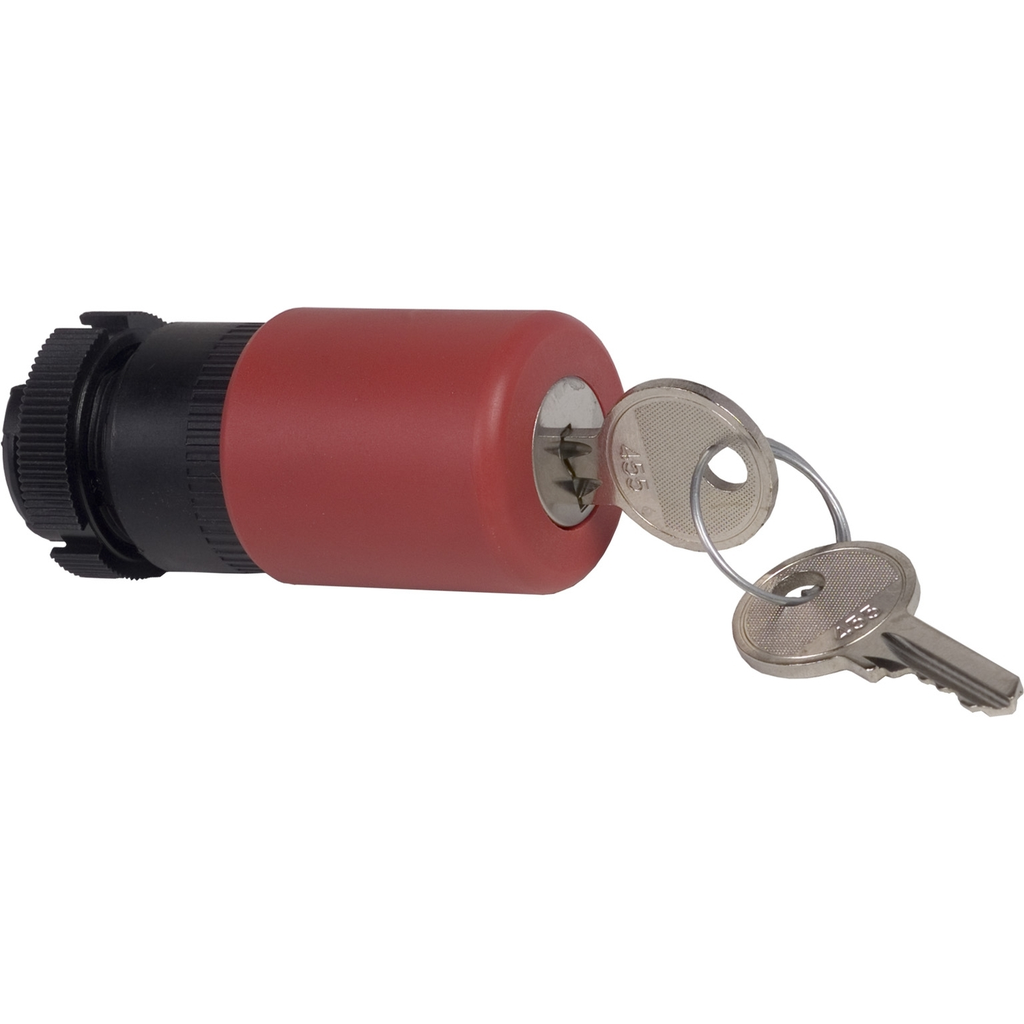

This Harmony ZA2BS934 is a red diameter 30mm Emergency stop, switching off head trigger and latching key release. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony ZA2BS934 is a red diameter 30mm Emergency stop, switching off head trigger and latching key release. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ik Degree Of Protection : IK08
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : UL 508 || IEC 60947-5-5 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60204-32 || IEC 62262
    • Vibration Resistance : 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
    • Ambient Air Temperature For Storage : -40-70 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2308018EN
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2308018EN
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 1 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.8722030657
  • Complementary
    • Marking : unmarked
    • Net Weight : 0.06 kg
    • Mounting Location : front of enclosure
    • Overvoltage Category : class II conforming to IEC 61140
    • Operator Profile : red mushroom Ø 30 mm
    • Product Compatibility : XACA..
  • Specifications
    • Country of Origin : United States
    • Weight : 0.06 kg
    • Range Of Product : Harmony XAC
    • Product Or Component Type : head for emergency switching off push-button
    • Sale Per Indivisible Quantity : 1
