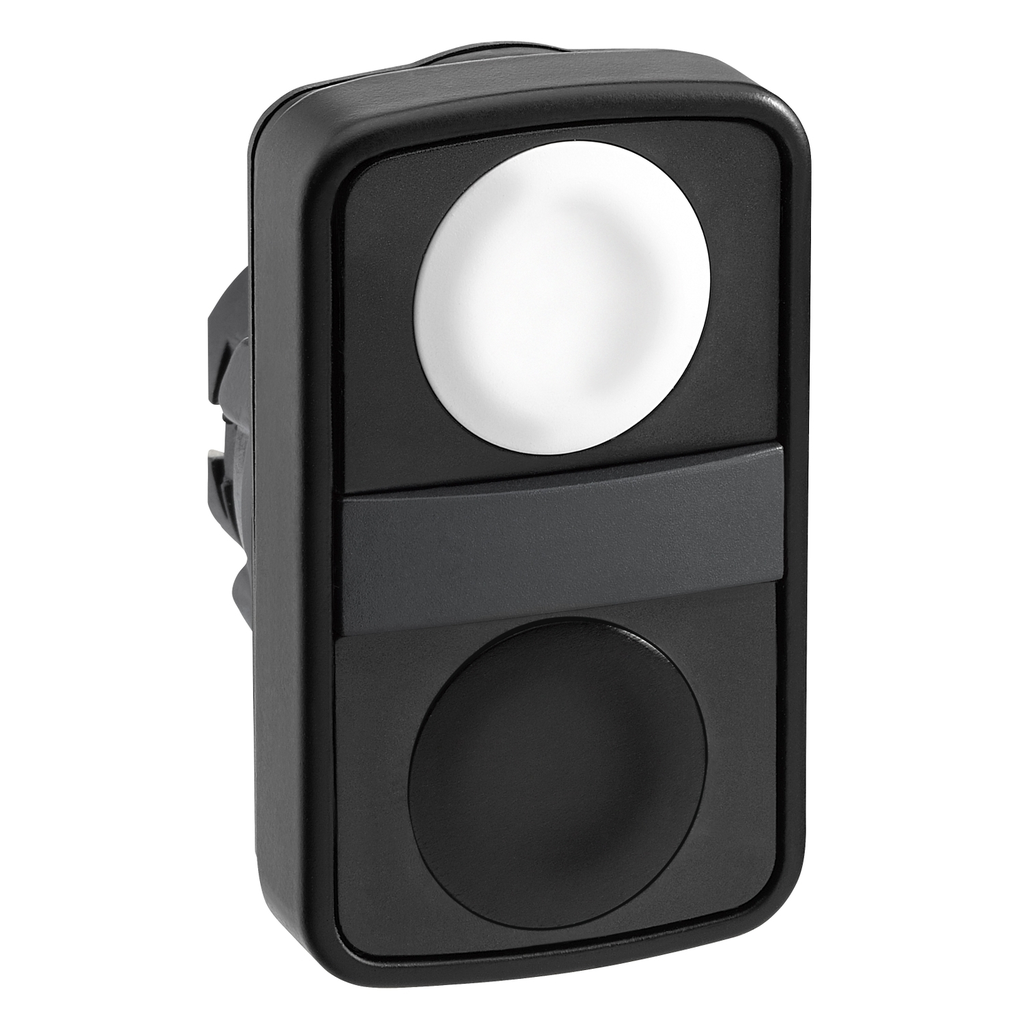

Head for double headed push button, Harmony XB5, 2 rectangular white/black flush, 22mm, spring return, unmarked

HEAD FOR DOUBLE HEADED PUSH BU

SQDZB5AA7120 ZB5AA7120 3389119043267
33.22 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for double headed push button, Harmony XB5, 2 rectangular white/black flush, 22mm, spring return, unmarked-1
  • Bezel Material: Plastic
  • Country of Origin: France
  • Head Type: Standard
  • Height: 50 mm
  • Net Weight: 0.023 kg
  • Warranty Length: 18 mth
  • Weight: 0.023 kg
  • Width: 30 mm
This double head provides a versatile interface for controlling your machines, it has 1 white and 1 black buttons. It is easily installed into a standard 22mm diameter cut-outs. It is assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Features
  • Specifications
This double head provides a versatile interface for controlling your machines, it has 1 white and 1 black buttons. It is easily installed into a standard 22mm diameter cut-outs. It is assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It makes it ideal for operation in harsh environments.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CSA || DNV || BV || LROS (Lloyds register of shipping) || UL Listed
    • Ik Degree Of Protection : IK03 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || UL 508 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69K IEC 60529
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Electrical Shock Protection Class : class II IEC 60536
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2303008EN
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2303008EN
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.247844672
  • Complementary
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting || SF2 2 single front mounting || SR2 2 single rear mounting
    • Colour Of Marking : white marking when green, red or black caps || black marking when white caps
    • Net Weight : 0.023 kg
    • Cad Overall Height : 50 mm
    • Device Presentation : basic element
    • Operator Profile : black flush, unmarked || white flush, unmarked
    • Mechanical Durability : 1000000 cycles
    • Station Name : XALD 1 cut-out
    • Cad Overall Width : 30 mm
    • Cad Overall Depth : 30 mm
  • Specifications
    • Country of Origin : France
    • Width : 30 mm
    • Height : 50 mm
    • Weight : 0.023 kg
    • Range Of Product : Harmony XB5
    • Mounting Diameter : 22 mm
    • Type Of Operator : spring return
    • Operators Description : white unmarked - black unmarked
    • Product Or Component Type : head for double-headed push-button
    • Shape Of Signaling Unit Head : rectangular
    • Operator Profile : 2 flush push-buttons
    • Head Type : standard
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : dark grey plastic
    • Device Short Name : ZB5
