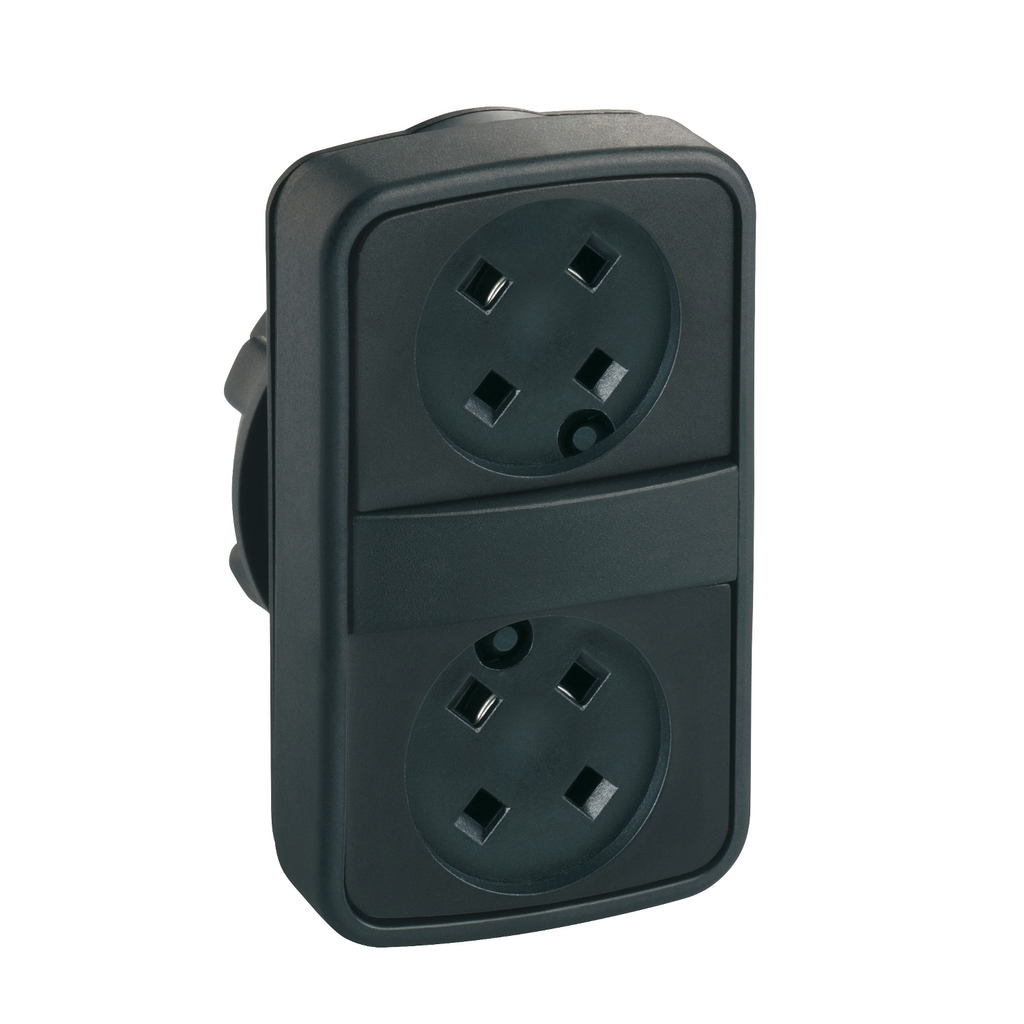

This double head is supplied without cap. This allows users to customize control functions with desired caps for their machines operations. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Color Of Marking : black marking when white caps, white marking when green, red or black caps
• Cad Overall Depth : 30 mm
• Cad Overall Height : 50 mm
• Cad Overall Width : 30 mm
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Customizable : 0, no
• Electrical Composition Code : C3 6 single front mounting, C4 6 single and double front mounting, C14 2 single front mounting, SF2 2 single front mounting, SR2 2 single rear mounting
• Electrical Shock Protection Class : class II conforming to IEC 60536
• Operator Profile : without cap, 2 flush push-buttons
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Type Of Operator : spring return
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Color Of Marking : black marking when white caps, white marking when green, red or black caps
• Carbon Footprint Of The Distribution Phase A4 : 0.008119283758000759, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.04202860408494587
• Carbon Footprint Of The Installation Phase A5 : 0.006130632943728771, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.17233784694803106
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Certificate Agency : CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2303008EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Metal Content : 29 %
• Average Percentage Of Recycled Plastic Content : 6 %
• Bezel Material : dark grey plastic
• Compatibility Code : ZB5
• Device Short Name : ZB5
• Group Of Product : without cap non illuminated
• Head Type : standard
• Main Group : double head
• Mechanical Durability : 1000000 cycles
• Mounting Diameter : 22 mm
• Operators Description : black pushes without cap
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : head for double-headed push-button
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : rectangular
• Software Version : v5.9.4
• Station Name : XALD 1 cut-out
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
• Warranty In Months : 18
• Pep Code : ENVPEP2303008_V2
• Database Version : 2022-01
• Pep Verification Date : 2024-03-24
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 10
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; APAC
• Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; APAC
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; APAC
• Offer Owner Code : 190786
• Pn : 1
• Environment Attributes Main
• Ambient Air Temperature For Operation : -25-70 °C, -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Ip Degree Of Protection : IP66 IEC 60529, IP69K IEC 60529
• Nema Degree Of Protection : UL type 4X/13, NEMA 13, NEMA 4X
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 29 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.22861636773470645
• Circularity Profile : ENVEOLI2303008EN
• Environmental Disclosure : ENVPEP2303008_V2
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2303008_V2
• Pep Verification Date : 2024-03-24
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : head for double-headed push-button
• Range Of Product : Harmony XB5
• ETIM
• ETIM 8 : EC000221
• ETIM 9 : EC000221
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, France
• Overview Attributes
• Device Presentation : basic element
