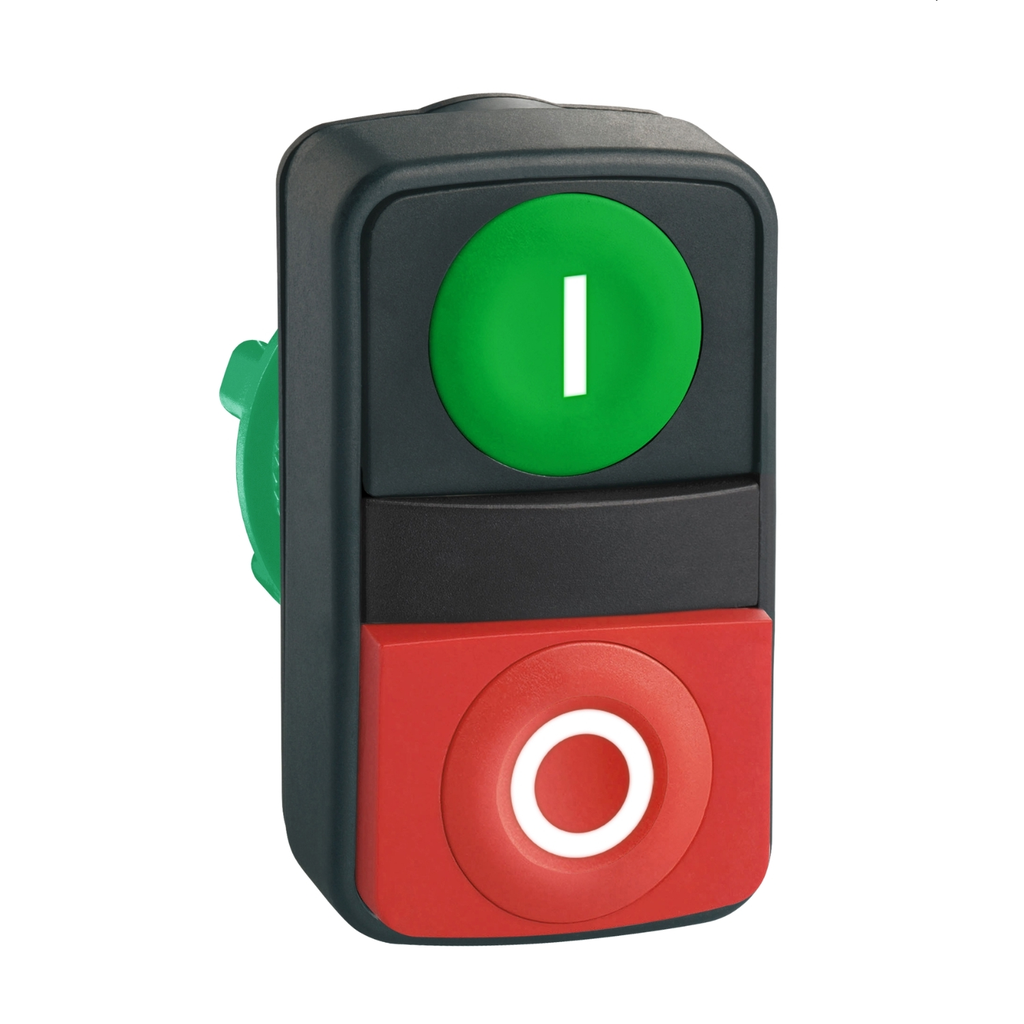

This double head has 1 green and 1 red button and provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0002734_3D-CAD
• Physical Attributes
• Color Of Marking : white marking when green, red or black caps, black marking when white caps
• Cad Overall Depth : 35 mm
• Cad Overall Height : 50 mm
• Cad Overall Width : 30 mm
• Cap Operator Or Lens Color : green/red
• Conformance Attributes
• Product Certifications : CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
• Standards : IEC 60947-5-4, IEC 60947-5-1, JIS C8201-5-1, IEC 60947-1, UL 508, CSA C22.2 No 14, JIS C8201-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Customizable : 0, no
• Electrical Composition Code : C3 6 single front mounting, C4 6 single and double front mounting, C14 2 single front mounting, SF2 2 single front mounting, SR2 2 single rear mounting
• Operator Profile : green flush, unmarked, red projecting, unmarked, 1 flush - 1 projecting push-buttons
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Color Of Marking : white marking when green, red or black caps, black marking when white caps
• Carbon Footprint Of The Distribution Phase A4 : 0.006707234408783236, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.034719281635390065
• Carbon Footprint Of The Installation Phase A5 : 0.005064435910036811, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.1 kg CO2 eq., 0.14236604747880827
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Medium Desc : Head for double headed push button, Harmony XB5, 1 green flush, 1 red projecting, 22mm, spring return, unmarked
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : Y
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2303008EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Metal Content : 29 %
• Average Percentage Of Recycled Plastic Content : 6 %
• Bezel Material : dark grey plastic
• Compatibility Code : ZB5
• Device Short Name : ZB5
• Electrical Shock Protection Class : class II conforming to IEC 60536
• Group Of Product : flush/proj unmarked
• Head Type : standard
• Main Group : double head
• Marking : unmarked
• Mechanical Durability : 1000000 cycles
• Mounting Diameter : 22 mm
• Operators Description : green unmarked - red unmarked
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : head for double-headed push-button
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Shape Of Signaling Unit Head : rectangular
• Software Version : v5.9.4
• Station Name : XALD 1 cut-out
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
• Type Of Operator : spring return
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Cap Operator Or Lens Color : green/red
• Operator Profile 1 Cap Operator Or Lens Color : red
• Operator Profile 1 Marking : unmarked
• Pep Code : ENVPEP2303008_V2
• Database Version : 2022-01
• Pep Verification Date : 2024-03-24
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; APAC
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; APAC
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; APAC
• Environment Attributes Main
• Ip Degree Of Protection : IP66 IEC 60529, IP69K IEC 60529
• Nema Degree Of Protection : UL type 4X/13, NEMA 13, NEMA 4X
• Take Back : Nej
• Recycled Metal Content At Cr Level : 29 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 0.18885699943301837
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2303008EN
• Environmental Disclosure : ENVPEP2303008_V2
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2303008_V2
• Pep Verification Date : 2024-03-24
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : head for double-headed push-button
• Range Of Product : Harmony XB5
• ETIM
• ETIM 8 : EC000221
• ETIM 9 : EC000221
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : basic element
