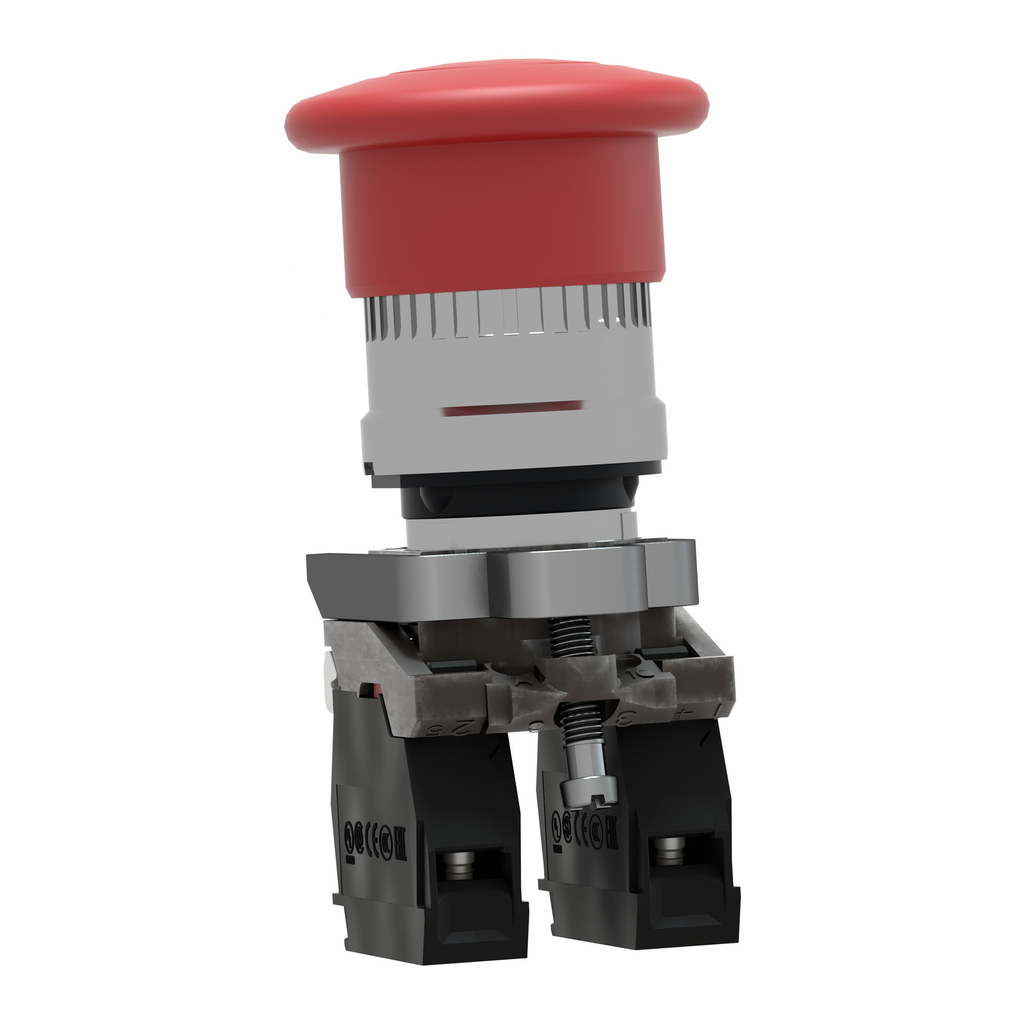

Harmony, emergency stop, latching push pull, red, 40 mm, 1 NC and 1 NO

ESTOP-22MM W/40MM RED

SQDXB4BT845 XB4BT845 785901381020
95.90 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Contact Material: Silver Alloy
  • Depth: 82 mm
  • Height: 47 mm
  • Net Weight: 0.136 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
  • Width: 40 mm
This Harmony XB4 emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched push-pull mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
  • Product Description
  • Specifications
This Harmony XB4 emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched push-pull mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
  • Environment
    • Electrical Shock Protection Class : class I IEC 60536
    • Standards : EN/IEC 60204-1 || UL 508 || EN/ISO 13850 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || IEC 60364-5-53 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
    • Product Certifications : CSA || LROS (Lloyds register of shipping) || BV || GL || UL Listed || DNV
    • Ambient Air Temperature For Storage : -40-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ik Degree Of Protection : IK03 IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Protective Treatment : TH
  • Range Of Product : Harmony XB4
  • Sale Per Indivisible Quantity : 1
  • Operator Profile : red mushroom Ø 40 mm, unmarked
  • Shape Of Signaling Unit Head : round
  • Fixing Collar Material : zamak
  • Mounting Diameter : 22 mm
  • Reset : push-pull
  • Device Short Name : XB4
  • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
  • Bezel Material : chromium plated metal
  • Contact Operation : slow-break
  • Type Of Operator : trigger action and mechanical latching
  • Product Or Component Type : emergency stop push-button || emergency switching off push-button
  • Complementary
    • Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
    • Contacts Material : silver alloy (Ag/Ni)
    • Device Presentation : complete product
    • Height : 47 mm
    • Positive Opening : with EN/IEC 60947-5-1 appendix K
    • Short-Circuit Protection : 10 A cartridge fuse gG EN/IEC 60947-5-1
    • Tightening Torque : 0.8-1.2 N.m EN 60947-1
    • Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV EN 60947-1
    • Operating Force : 50 N
    • Net Weight : 0.136 kg
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Mechanical Durability : 300000 cycles
    • [Ith] Conventional Free Air Thermal Current : 10 A EN/IEC 60947-5-1
    • Operating Travel : 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
    • Contacts Usage : standard contacts
    • [Ui] Rated Insulation Voltage : 600 V 3)EN 60947-1
    • Width : 40 mm
    • Terminals Description Iso N°1 : (13-14)NO
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
    • Depth : 82 mm
  • Offer Sustainability
    • Circularity Profile : ENVEOLI1808008EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Reach Free Of Svhc : Yes
    • Rohs Exemption Information : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual warranty
    • Warranty : 18 months
