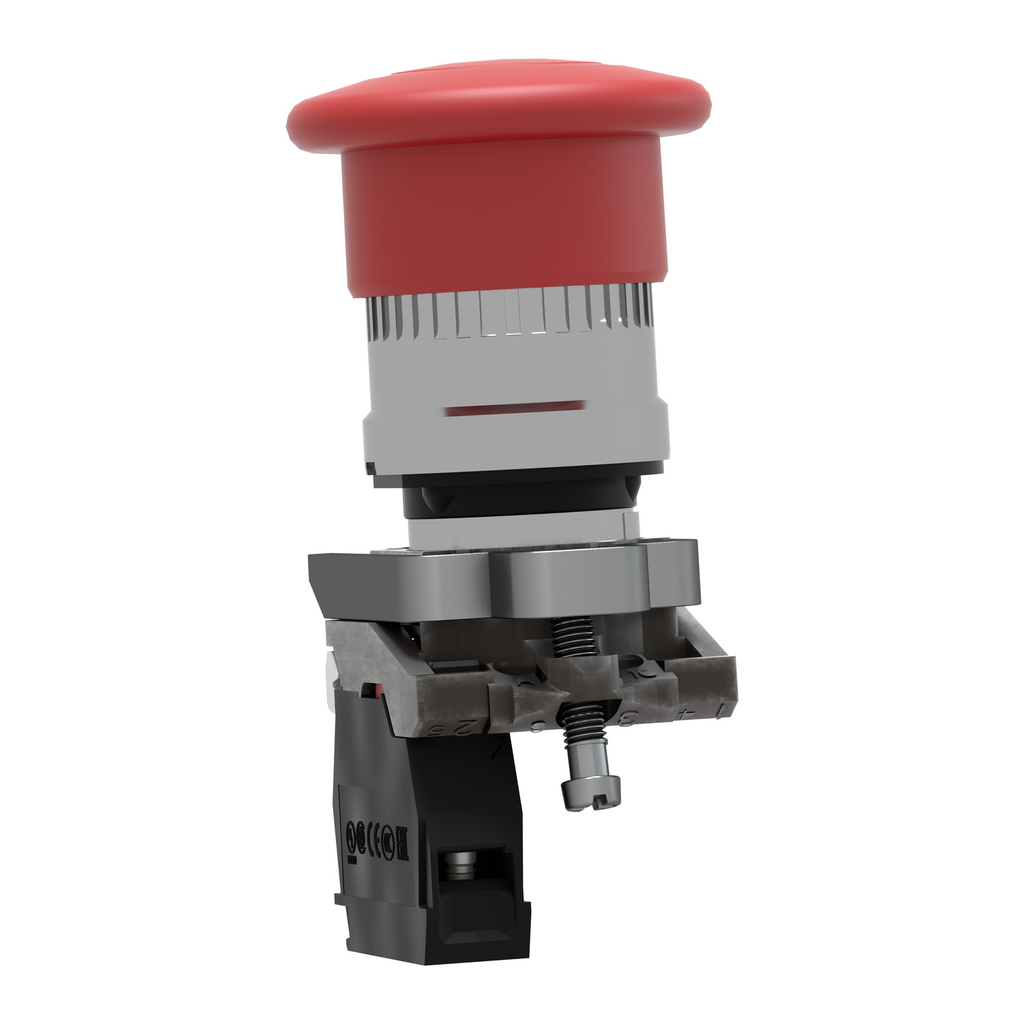

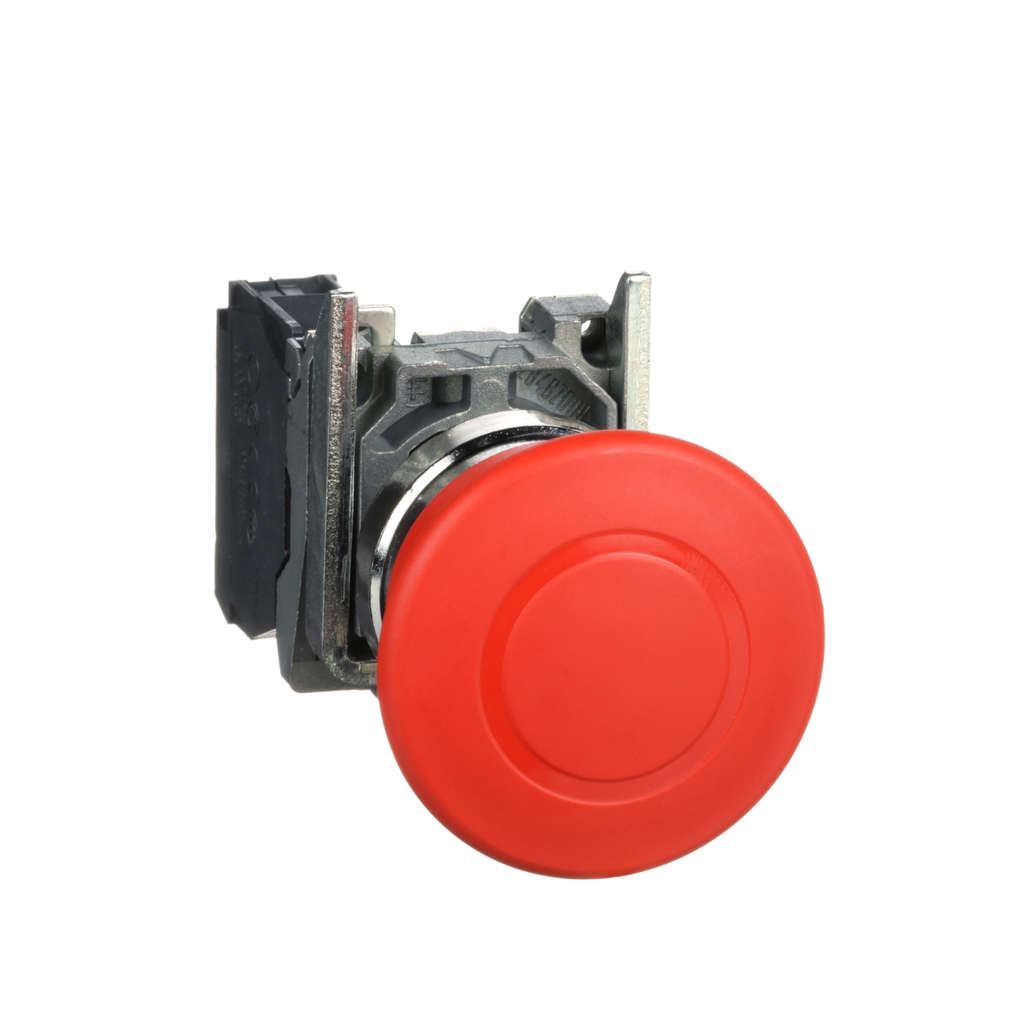

Harmony, emergency stop, latching push pull, red, 40 mm, 1 NC

TRIGGER ACTIONPUSH PULL 40MM

SQDXB4BT842 XB4BT842 3606480623714
77.38 / EA
http://schema.org/OutOfStock
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Contact Material: Silver Alloy
  • Depth: 82 mm
  • Height: 47 mm
  • IsSustainable: No
  • Net Weight: 0.125 kg
  • Standard: CSA C22.2 No 14, IEC 60204-1, IEC 60364-5-53, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, ISO 13850, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Width: 40 mm
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
QTY
  • Product Description
  • Specifications
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
  • Environment
    • Ik Degree Of Protection : IK06 IEC 50102
    • Electrical Shock Protection Class : class I IEC 60536
    • Ambient Air Temperature For Operation : -40-70 °C
    • Protective Treatment : TH
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Standards : IEC 60947-5-1 || IEC 60204-1 || IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || IEC 60364-5-53 || ISO 13850 || IEC 60947-1 || IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-1
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ambient Air Temperature For Storage : -40-70 °C
    • Product Certifications : DNV || GL || LROS (Lloyds register of shipping) || CSA || UL Listed || BV
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
  • Specifications
    • Head Type : standard
    • Fixing Collar Material : zamak
    • Product Or Component Type : emergency stop push-button || emergency switching off push-button
    • Mounting Diameter : 22 mm
    • Operator Profile : red mushroom Ø 40 mm, unmarked
    • Range Of Product : Harmony XB4
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Reset : push-pull
    • Contact Operation : slow-break
    • Shape Of Signaling Unit Head : round
    • Type Of Operator : trigger action and mechanical latching
    • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • Device Short Name : XB4
  • Offer Sustainability
    • Environmental Disclosure : ENVPEP2201004EN
    • Mercury Free : Yes
    • Sustainable Offer Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI2201004EN
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Rohs Exemption Information : Yes
  • Complementary
    • Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
    • Operating Travel : 1.5 mm NC changing electrical state) || 4.3 mm total travel)
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Depth : 82 mm
    • Contacts Material : silver alloy (Ag/Ni)
    • Width : 40 mm
    • Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
    • Positive Opening : with IEC 60947-5-1 appendix K
    • [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Terminals Description Iso N°1 : (21-22)NC
    • Mechanical Durability : 3000000 cycles
    • Device Presentation : complete product
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
    • Height : 47 mm
    • Net Weight : 0.125 kg
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • Contacts Usage : standard contacts
    • Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
